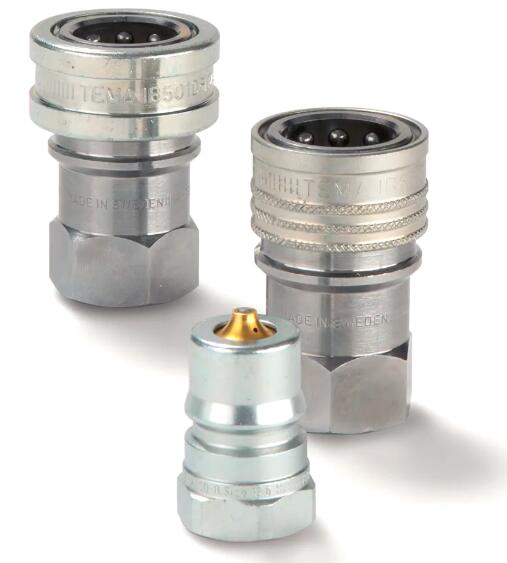

Hydraulic Quick Coupling with ISO B Profile, Series IB
Quick coupling system with body size 1/4" up to 1" for medium pressure applications up to 400 bar. Coupling system with ISO 7241-1 Series B profile.
Parker's Hydraulic Quick Coupling Series IB plug profiles are conform to IS0 Standard 7241-1 series B and are compatible with other series complying with the same standard. To optimize performance and corrosion resisitance the coupling is made of brass and the plug made of hardend steel. Series IB is available with pressure eliminator function, which allows for effortless connection with static and residual pressure, up to operating pressure. A pressure eliminator is available for plugs and couplings. The option with heavy duty sleeve gives a longer life time in very tough applications.
Hydraulic Quick Coupling with ISO B Profile, Series IB
Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
Features/Benefits:
- Available with pressure eliminator to connect under residual pressure
- Available with heavy duty sleeve for longer life time in very tough applications
- Coupling made of brass to avoid corrosion
Applications:
Easy connection / disconnectionin hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
Technical Specifications
| Minimum Operating Temperature: |
-25, -30 °C |
| Application: |
Medium Pressure |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Specifications Met: |
ISO 7241-1 Series B |
| Interchange Type: |
ISO 7241-1 Series B |
| Maximum Operating Pressure: |
250, 300, 320, 400 bar, 3620, 4350, 4640, 5800 psi |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Hydraulic Fluids, Steam, Water |
| Seal Material: |
NBR / FKM |
| Valve Type: |
Poppet |
| Body Size: |
1/4 - 1 inch |
| Connection Type: |
Female Thread |
| Length: |
38 up to 94 mm |
| Hex Size: |
19 up to 50 mm |
| Outside Diameter: |
28 up to 66 mm |
| Materials of Construction: |
Brass, Steel |
| Operating Pressure: |
250, 300, 320, 400 bar |
Hydraulic Quick Coupling with ISO B Profile, Series IB 型号
| Part |
Type |
Valving |
Version |
Connection Thread Size (inch) |
Seal Material |
| IB10010 |
Coupling |
with |
Standard |
1 |
NBR |
| IB10010 H |
Coupling with Heavy Duty Sleeve |
with |
Standard |
1 |
NBR |
| IB10010 HUV |
Coupling with Heavy Duty Sleeve |
without |
Standard |
1 |
NBR |
| IB10010 HV |
Coupling with Heavy Duty Sleeve |
with |
Standard |
1 |
FKM |
| IB10010 HVUV |
Coupling with Heavy Duty Sleeve |
without |
Standard |
1 |
FKM |
| IB10010 UV |
Coupling |
without |
Standard |
1 |
NBR |
| IB10010 V |
Coupling |
with |
Standard |
1 |
FKM |
| IB10010 VUV |
Coupling |
without |
Standard |
1 |
FKM |
| IB10011 |
Coupling |
with |
with Pressure Eliminator |
1 |
NBR |
| IB10011 H |
Coupling with Heavy Duty Sleeve |
with |
with Pressure Eliminator |
1 |
NBR |
| IB10020 |
Plug |
with |
Standard |
1 |
NBR |
| IB10020 UV |
Plug |
without |
Standard |
1 |
na |
| IB10020 V |
Plug |
with |
Standard |
1 |
FKM |
| IB10021 |
Plug |
with |
with Pressure Eliminator |
1 |
NBR |
| IB2510 |
Coupling |
with |
Standard |
1/4 |
NBR |
| IB2510 UV |
Coupling |
without |
Standard |
1/4 |
NBR |
| IB2510 V |
Coupling |
with |
Standard |
1/4 |
FKM |
| IB2510 VUV |
Coupling |
without |
Standard |
1/4 |
FKM |
| IB2511 |
Coupling |
with |
with Pressure Eliminator |
1/4 |
NBR |
| IB2511 V |
Coupling |
with |
with Pressure Eliminator |
1/4 |
FKM |
| IB2520 |
Plug |
with |
Standard |
1/4 |
NBR |
| IB2520 UV |
Plug |
without |
Standard |
1/4 |
na |
| IB2520 V |
Plug |
with |
Standard |
1/4 |
FKM |
| IB2521 |
Plug |
with |
with Pressure Eliminator |
1/4 |
NBR |
| IB2521 V |
Plug |
with |
with Pressure Eliminator |
1/4 |
FKM |
| IB3810 |
Coupling |
with |
Standard |
3/8 |
NBR |
| IB3810 UV |
Coupling |
without |
Standard |
3/8 |
NBR |
| IB3810 V |
Coupling |
with |
Standard |
3/8 |
FKM |
| IB3810 VUV |
Coupling |
without |
Standard |
3/8 |
FKM |
| IB3811 |
Coupling |
with |
with Pressure Eliminator |
3/8 |
NBR |
| IB3811 V |
Coupling |
with |
with Pressure Eliminator |
3/8 |
FKM |
| IB3820 |
Plug |
with |
Standard |
3/8 |
NBR |
| IB3820 UV |
Plug |
without |
Standard |
3/8 |
na |
| IB3820 V |
Plug |
with |
Standard |
3/8 |
FKM |
| IB3821 |
Plug |
with |
with Pressure Eliminator |
3/8 |
NBR |
| IB3821 V |
Plug |
with |
with Pressure Eliminator |
3/8 |
FKM |
| IB5010 |
Coupling |
with |
Standard |
1/2 |
NBR |
| IB5010 H |
Coupling with Heavy Duty Sleeve |
with |
Standard |
1/2 |
NBR |
| IB5010 HUV |
Coupling with Heavy Duty Sleeve |
without |
Standard |
1/2 |
NBR |
| IB5010 UV |
Coupling |
without |
Standard |
1/2 |
NBR |
| IB5010 V |
Coupling |
with |
Standard |
1/2 |
FKM |
| IB5010 VUV |
Coupling |
without |
Standard |
1/2 |
FKM |
| IB5011 |
Coupling |
with |
with Pressure Eliminator |
1/2 |
NBR |
| IB5011 H |
Coupling with Heavy Duty Sleeve |
with |
with Pressure Eliminator |
1/2 |
NBR |
| IB5011 V |
Coupling |
with |
with Pressure Eliminator |
1/2 |
FKM |
| IB5020 |
Plug |
with |
Standard |
1/2 |
NBR |
| IB5020 UV |
Plug |
without |
Standard |
1/2 |
na |
| IB5020 V |
Plug |
with |
Standard |
1/2 |
FKM |
| IB5021 |
Plug |
with |
with Pressure Eliminator |
1/2 |
NBR |
| IB5021 V |
Plug |
with |
with Pressure Eliminator |
1/2 |
FKM |
| IB7510 |
Coupling |
with |
Standard |
3/4 |
NBR |
| IB7510 H |
Coupling with Heavy Duty Sleeve |
with |
Standard |
3/4 |
NBR |
| IB7510 HUV |
Coupling with Heavy Duty Sleeve |
without |
Standard |
3/4 |
NBR |
| IB7510 UV |
Coupling |
without |
Standard |
3/4 |
NBR |
| IB7510 V |
Coupling |
with |
Standard |
3/4 |
FKM |
| IB7510 VUV |
Coupling |
without |
Standard |
3/4 |
FKM |
| IB7511 |
Coupling |
with |
with Pressure Eliminator |
3/4 |
NBR |
| IB7511 H |
Coupling with Heavy Duty Sleeve |
with |
with Pressure Eliminator |
3/4 |
NBR |
| IB7511 V |
Coupling |
with |
with Pressure Eliminator |
3/4 |
FKM |
| IB7520 |
Plug |
with |
Standard |
3/4 |
NBR |
| IB7520 UV |
Plug |
without |
Standard |
3/4 |
na |
| IB7520 V |
Plug |
with |
Standard |
3/4 |
FKM |
| IB7521 |
Plug |
with |
with Pressure Eliminator |
3/4 |
NBR |
| IB7521 V |
Plug |
with |
with Pressure Eliminator |
3/4 |
FKM |
|
