Parker Quick Couplings

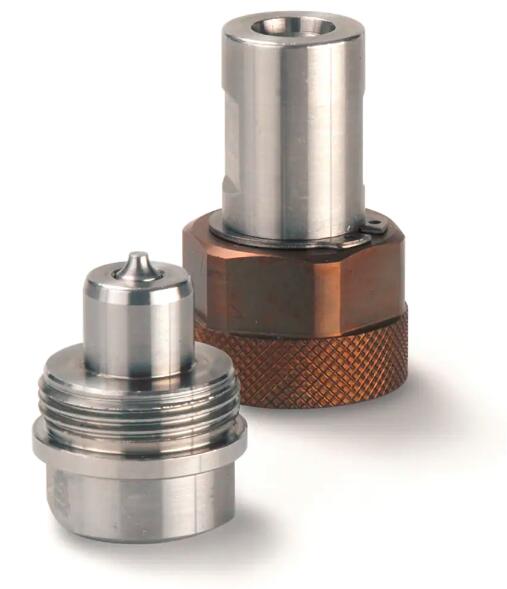

High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK
High pressure screw-to-connect quick coupling system with body size 1/4" or 3/8" for high pressure applications up to 1100 bar. Coupling system with Parker Profile.
Parker's High Pressure Screw-to-Connect Quick Coupling Series SK were specially developed for off-shore applications. Series SK is made of stainless steel for high working pressure in corrosive environment.
High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK
Markets:
- Oil & Gas
Freatures/Benefits:
- Corrosion resistant due to the stainless steel construction
- No leckage due to the double-shut-off valve
- Screw-to-connect - connectable under pressure
- Dust caps available for coupling and plug
Application Area:
- Hydraulic tools in marine- & offshore applications
Technical Specifications
| Minimum Operating Temperature: |
-25 °C |
| Connection Type: |
Female Thread |
| Application: |
High Pressure |
| Body Size: |
1/4, 3/8 inch |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Tema Profile |
| Maximum Operating Pressure: |
750, 1100 bar, 10870, 15950 psi |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Hydraulic Fluids |
| Valve Type: |
Poppet |
| Connection Thread Size: |
ISO-G 1/4 ORB, ISO-G 3/8 ORB inch |
| Length: |
43 up to 67 mm |
| Hex Size: |
26 up to 41 mm |
| Outside Diameter: |
35, 40, 45 mm |
| Materials of Construction: |
Stainless Steel |
| Seal Material: |
NBR / FKM |
High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK 型号
|
