Parker Quick Couplings

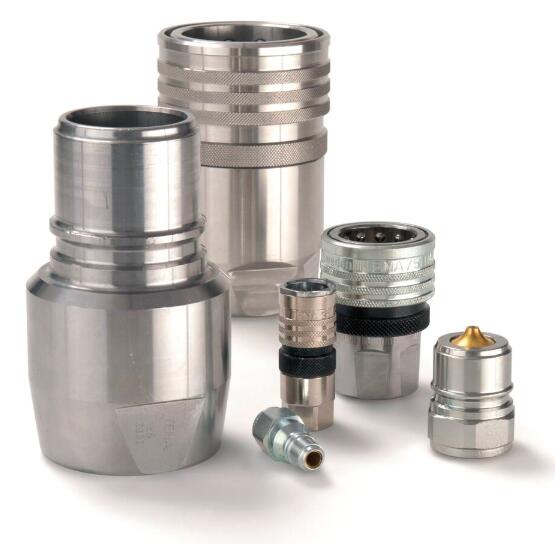

Hydraulic Quick Coupling with Parker Profile, Series T
Hydraulic quick coupling system with body size 1/8" up to 2" for medium pressure applications up to 450 bar. Coupling with Parker Profile.
Parker's Hydraulic Quick Coupling Series T is characterised by a low pressure drop and maximum flow capacity. The coupling system is available as a double shut-off or straight through version. The 2500 can be used also as a single shut-off version. Due to the pressure eliminator version for coupling and plug connection is possible up to the operating pressure. Special version for high pressure water is also available.
Hydraulic Quick Coupling with Parker Profile, Series T
Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
Features/Benefits:
- Coupling made of brass to avoid corrosion
- Available with pressure eliminator
- Double safety through a double O-ring seal
- Safety locking ring to prevent unintentional uncoupling
Applications:
Easy connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
Technical Specifications
| Minimum Operating Temperature: |
-25, -30 °C |
| Connection Type: |
Female Thread |
| Application: |
Medium Pressure |
| Body Size: |
1/8 - 2 inch |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Tema Profile |
| Materials of Construction: |
Brass, Stainless Steel |
| Maximum Operating Pressure: |
50 - 450 bar, 720 - 6520 psi |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Chemical Fluids, Hydraulic Fluids, Steam, Water |
| Seal Material: |
NBR, FKM |
| Valve Type: |
Poppet |
| Connection Thread Size: |
1/8 up to 2 inch |
Hydraulic Quick Coupling with Parker Profile, Series T 型号
| Part |
Body Size (inch) |
Type |
Version |
Valving |
Length (mm) |
External Hex (mm) |
Outside Diameter (mm) |
Material |
Seal Material |
Working Pressure Connected (bar) |
| 10010 |
1 |
Coupling |
Standard |
with |
88 |
45 |
62 |
Brass / Steel |
NBR |
250 |
| 10010 RV |
1 |
Coupling |
Stainless Steel |
with |
88 |
45 |
62 |
Stainless Steel |
FKM |
250 |
| 10010 RVUV |
1 |
Coupling |
Stainless Steel |
without |
88 |
45 |
62 |
Stainless Steel |
FKM |
250 |
| 10010 UV |
1 |
Coupling |
Standard |
without |
88 |
45 |
62 |
Brass / Steel |
NBR |
250 |
| 10010 V |
1 |
Coupling |
Standard |
with |
88 |
45 |
62 |
Brass / Steel |
FKM |
250 |
| 10010 VUV |
1 |
Coupling |
Standard |
without |
88 |
45 |
62 |
Brass / Steel |
FKM |
250 |
| 10011 RFV |
1 |
Coupling |
Pressure Eliminator |
with |
88 |
45 |
62 |
Stainless Steel, Brass Valve |
FKM |
250 |
| 10011 RV |
1 |
Coupling |
Pressure Eliminator |
with |
88 |
45 |
62 |
Stainless Steel |
FKM |
250 |
| 10011 V |
1 |
Coupling |
Pressure Eliminator |
with |
88 |
45 |
62 |
Brass / Steel |
FKM |
250 |
| 10011-QC |
1 |
Coupling |
Pressure Eliminator |
with |
88 |
45 |
62 |
Brass / Steel |
NBR |
250 |
| 10020 |
1 |
Plug |
Standard |
with |
60 |
46 |
49 |
Brass / Steel |
NBR |
280 |
| 10020 RUV |
1 |
Plug |
Stainless Steel |
without |
53 |
46 |
49 |
Stainless Steel |
na |
250 |
| 10020 RV |
1 |
Plug |
Stainless Steel |
with |
60 |
46 |
49 |
Stainless Steel |
FKM |
250 |
| 10020 UV |
1 |
Plug |
Standard |
without |
53 |
46 |
49 |
Brass / Steel |
na |
280 |
| 10020 V |
1 |
Plug |
Standard |
with |
60 |
46 |
49 |
Brass / Steel |
FKM |
280 |
| 10021 |
1 |
Plug |
Pressure Eliminator |
with |
61 |
46 |
49 |
Brass / Steel |
NBR |
280 |
| 10021 RFV |
1 |
Plug |
Pressure Eliminator |
with |
61 |
46 |
49 |
Stainless Steel, Brass Valve |
FKM |
250 |
| 10021 RV |
1 |
Plug |
Pressure Eliminator |
with |
61 |
46 |
49 |
Stainless Steel |
FKM |
250 |
| 10021 V |
1 |
Plug |
Pressure Eliminator |
with |
61 |
46 |
49 |
Brass / Steel |
FKM |
280 |
| 15010 M |
1 1/2 |
Coupling |
Brass |
with |
112 |
60 |
73 |
Brass |
NBR |
50 |
| 15010 MUV |
1 1/2 |
Coupling |
Brass |
without |
112 |
60 |
73 |
Brass |
NBR |
50 |
| 15010 MV |
1 1/2 |
Coupling |
Brass |
with |
112 |
60 |
73 |
Brass |
FKM |
50 |
| 15010 MVUV |
1 1/2 |
Coupling |
Brass |
without |
112 |
60 |
73 |
Brass |
FKM |
50 |
| 15010 RV |
1 1/2 |
Coupling |
Stainless Steel |
with |
112 |
60 |
73 |
Stainless Steel |
FKM |
150 |
| 15010 RVUV |
1 1/2 |
Coupling |
Stainless Steel |
without |
112 |
60 |
73 |
Stainless Steel |
FKM |
150 |
| 15010 UV |
1 1/2 |
Coupling |
Standard |
without |
112 |
60 |
73 |
Brass / Steel |
NBR |
200 |
| 15010 V |
1 1/2 |
Coupling |
Standard |
with |
112 |
60 |
73 |
Brass / Steel |
FKM |
200 |
| 15010 VUV |
1 1/2 |
Coupling |
Standard |
without |
112 |
60 |
73 |
Brass / Steel |
FKM |
200 |
| 15010-QC |
1 1/2 |
Coupling |
Standard |
with |
112 |
60 |
73 |
Brass / Steel |
NBR |
200 |
| 15011 V |
1 1/2 |
Coupling |
Pressure Eliminator |
with |
112 |
60 |
73 |
Brass / Steel |
FKM |
200 |
| 15011-QC |
1 1/2 |
Coupling |
Pressure Eliminator |
with |
112 |
60 |
73 |
Brass / Steel |
NBR |
200 |
| 15020 |
1 1/2 |
Plug |
Standard |
with |
107 |
60 |
67 |
Brass / Steel |
NBR |
200 |
| 15020 M |
1 1/2 |
Plug |
Brass |
with |
107 |
60 |
67 |
Brass |
NBR |
50 |
| 15020 MUV |
1 1/2 |
Plug |
Brass |
without |
107 |
60 |
67 |
Brass |
na |
50 |
| 15020 MV |
1 1/2 |
Plug |
Brass |
with |
107 |
60 |
67 |
Brass |
FKM |
50 |
| 15020 RUV |
1 1/2 |
Plug |
Stainless Steel |
without |
107 |
60 |
67 |
Stainless Steel |
na |
150 |
| 15020 RV |
1 1/2 |
Plug |
Stainless Steel |
with |
107 |
60 |
67 |
Stainless Steel |
FKM |
150 |
| 15020 UV |
1 1/2 |
Plug |
Standard |
without |
107 |
60 |
67 |
Brass / Steel |
na |
200 |
| 15020 V |
1 1/2 |
Plug |
Standard |
with |
107 |
60 |
67 |
Brass / Steel |
FKM |
200 |
| 15021 |
1 1/2 |
Plug |
Pressure Eliminator |
with |
107 |
60 |
67 |
Brass / Steel |
NBR |
200 |
| 15021 V |
1 1/2 |
Plug |
Pressure Eliminator |
with |
107 |
60 |
67 |
Brass / Steel |
FKM |
200 |
| 20010 RV |
2 |
Coupling |
Stainless Steel |
with |
144 |
75 |
90 |
Stainless Steel |
FKM |
120 |
| 20010 RVUV |
2 |
Coupling |
Stainless Steel |
without |
144 |
75 |
90 |
Stainless Steel |
FKM |
120 |
| 20010 UV |
2 |
Coupling |
Standard |
without |
144 |
75 |
90 |
Brass / Steel |
NBR |
180 |
| 20010 V |
2 |
Coupling |
Standard |
with |
144 |
75 |
90 |
Brass / Steel |
FKM |
180 |
| 20010 VUV |
2 |
Coupling |
Standard |
without |
144 |
75 |
90 |
Brass / Steel |
FKM |
180 |
| 20010-QC |
2 |
Coupling |
Standard |
with |
144 |
75 |
90 |
Brass / Steel |
NBR |
180 |
| 20020 RUV |
2 |
Plug |
Stainless Steel |
without |
142 |
75 |
85 |
Stainless Steel |
na |
120 |
| 20020 RV |
2 |
Plug |
Stainless Steel |
with |
142 |
75 |
85 |
Stainless Steel |
FKM |
120 |
| 20020 UV |
2 |
Plug |
Standard |
without |
142 |
75 |
85 |
Brass / Steel |
na |
180 |
| 20020 V |
2 |
Plug |
Standard |
with |
142 |
75 |
85 |
Brass / Steel |
FKM |
180 |
| 20020-QC |
2 |
Plug |
Standard |
with |
142 |
75 |
85 |
Brass / Steel |
NBR |
180 |
| 2310 RV |
1/8 |
Coupling |
Stainless Steel |
with |
38 |
15 |
18 |
Stainless Steel |
FKM |
200 |
| 2310 RVUV |
1/8 |
Coupling |
Stainless Steel |
without |
38 |
15 |
18 |
Stainless Steel |
FKM |
200 |
| 2310 UV |
1/8 |
Coupling |
Standard |
without |
38 |
15 |
18 |
Brass / Steel |
NBR |
200 |
| 2310 V |
1/8 |
Coupling |
Standard |
with |
38 |
15 |
18 |
Brass / Steel |
FKM |
200 |
| 2310 VUV |
1/8 |
Coupling |
Standard |
without |
38 |
15 |
18 |
Brass / Steel |
FKM |
200 |
| 2310-QC |
1/8 |
Coupling |
Standard |
with |
38 |
15 |
18 |
Brass / Steel |
NBR |
200 |
| 2320 |
1/8 |
Plug |
Standard |
with |
36 |
15 |
17 |
Brass / Steel |
NBR |
200 |
| 2320 RFV |
1/8 |
Plug |
Stainless Steel |
with |
38 |
15 |
17 |
Stainless Steel, Brass Valve |
FKM |
200 |
| 2320 RUV |
1/8 |
Plug |
Stainless Steel |
without |
36 |
15 |
17 |
Stainless Steel |
na |
200 |
| 2320 RV |
1/8 |
Plug |
Stainless Steel |
with |
36 |
15 |
17 |
Stainless Steel |
FKM |
200 |
| 2320 UV |
1/8 |
Plug |
Standard |
without |
36 |
15 |
17 |
Brass / Steel |
na |
200 |
| 2320 V |
1/8 |
Plug |
Standard |
with |
38 |
15 |
17 |
Brass / Steel |
FKM |
200 |
| 2510 RV |
1/4 |
Coupling |
Stainless Steel |
with |
64 |
21 |
25 |
Stainless Steel |
FKM |
250 |
| 2510 RVUV |
1/4 |
Coupling |
Stainless Steel |
without |
64 |
21 |
25 |
Stainless Steel |
FKM |
250 |
| 2510 UV |
1/4 |
Coupling |
Standard |
without |
64 |
21 |
25 |
Brass / Steel |
NBR |
450 |
| 2510 V |
1/4 |
Coupling |
Standard |
with |
64 |
21 |
25 |
Brass / Steel |
FKM |
450 |
| 2510 VUV |
1/4 |
Coupling |
Standard |
without |
64 |
21 |
25 |
Brass / Steel |
FKM |
450 |
| 2510-QC |
1/4 |
Coupling |
Standard |
with |
64 |
21 |
25 |
Brass / Steel |
NBR |
450 |
| 2520 |
1/4 |
Plug |
Standard |
with |
45 |
19 |
21 |
Brass / Steel |
NBR |
450 |
| 2520 RFUV2 |
1/4 |
Plug |
Stainless Steel |
without |
45 |
19 |
21 |
Stainless Steel |
na |
170 |
| 2520 RFV |
1/4 |
Plug |
Stainless Steel |
with |
45 |
19 |
21 |
Stainless Steel, Brass Valve |
FKM |
250 |
| 2520 RFV2 |
1/4 |
Plug |
High Pressure Water |
with |
45 |
19 |
21 |
Stainless Steel, Brass Valve |
FKM |
170 |
| 2520 RHUV |
1/4 |
Plug |
Stainless Steel |
without |
45 |
19 |
21 |
Stainless Steel |
na |
450 |
| 2520 RUV |
1/4 |
Plug |
Stainless Steel |
without |
45 |
19 |
21 |
Stainless Steel |
na |
250 |
| 2520 RV |
1/4 |
Plug |
Stainless Steel |
with |
45 |
19 |
21 |
Stainless Steel |
FKM |
250 |
| 2520 UV |
1/4 |
Plug |
Standard |
without |
45 |
19 |
21 |
Brass / Steel |
na |
450 |
| 2520 V |
1/4 |
Plug |
Standard |
with |
45 |
19 |
21 |
Brass / Steel |
FKM |
450 |
| 3810 |
3/8 |
Coupling |
Standard |
with |
60 |
24 |
34 |
Brass / Steel |
NBR |
350 |
| 3810 H |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
24 |
34 |
Brass, chromated |
NBR |
350 |
| 3810 H2 |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
29 |
34 |
Brass, chromated |
NBR |
350 |
| 3810 H2EP |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
29 |
34 |
Brass, chromated |
E7736 |
350 |
| 3810 H2V |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
29 |
34 |
Brass, chromated |
FKM |
350 |
| 3810 HEP |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
24 |
34 |
Brass, chromated |
E7736 |
350 |
| 3810 HV |
3/8 |
Coupling |
High Pressure Water |
without |
60 |
24 |
34 |
Brass, chromated |
FKM |
350 |
| 3810 RV |
3/8 |
Coupling |
Stainless Steel |
with |
60 |
24 |
34 |
Stainless Steel |
FKM |
300 |
| 3810 RVUV |
3/8 |
Coupling |
Stainless Steel |
without |
60 |
24 |
34 |
Stainless Steel |
FKM |
350 |
| 3810 UV |
3/8 |
Coupling |
Standard |
without |
60 |
24 |
34 |
Brass / Steel |
NBR |
350 |
| 3810 V |
3/8 |
Coupling |
Standard |
with |
60 |
24 |
34 |
Brass / Steel |
FKM |
350 |
| 3810 VUV |
3/8 |
Coupling |
Standard |
without |
60 |
24 |
34 |
Brass / Steel |
FKM |
350 |
| 3811 |
3/8 |
Coupling |
Pressure Eliminator |
with |
60 |
24 |
34 |
Brass / Steel |
NBR |
350 |
| 3811 RFV |
3/8 |
Coupling |
Pressure Eliminator |
with |
60 |
24 |
34 |
Stainless Steel, Brass Valve |
FKM |
300 |
| 3811 RV |
3/8 |
Coupling |
Pressure Eliminator |
with |
60 |
24 |
34 |
Stainless Steel |
FKM |
300 |
| 3811 V |
3/8 |
Coupling |
Pressure Eliminator |
with |
60 |
24 |
34 |
Brass / Steel |
FKM |
350 |
| 3820 |
3/8 |
Plug |
Standard |
with |
42 |
22 |
24 |
Brass / Steel |
NBR |
350 |
| 3820 RF |
3/8 |
Plug |
Stainless Steel |
with |
42 |
22 |
24 |
Stainless Steel, Brass Valve |
NBR |
300 |
| 3820 RFUV |
3/8 |
Plug |
Stainless Steel |
without |
38 |
22 |
24 |
Stainless Steel, Brass Valve |
na |
170 |
| 3820 RFV |
3/8 |
Plug |
Stainless Steel |
with |
42 |
22 |
24 |
Stainless Steel, Brass Valve |
FKM |
300 |
| 3820 RUV |
3/8 |
Plug |
Stainless Steel |
without |
38 |
22 |
24 |
Stainless Steel |
na |
300 |
| 3820 RV |
3/8 |
Plug |
Stainless Steel |
with |
42 |
22 |
24 |
Stainless Steel |
FKM |
300 |
| 3820 UV |
3/8 |
Plug |
Standard |
without |
38 |
22 |
24 |
Brass / Steel |
na |
350 |
| 3820 V |
3/8 |
Plug |
Standard |
with |
42 |
22 |
24 |
Brass / Steel |
FKM |
350 |
| 3821 |
3/8 |
Plug |
Pressure Eliminator |
with |
43 |
22 |
24 |
Brass / Steel |
NBR |
350 |
| 3821 RFV |
3/8 |
Plug |
Pressure Eliminator |
with |
43 |
22 |
24 |
Stainless Steel, Brass Valve |
FKM |
350 |
| 3821 RV |
3/8 |
Plug |
Pressure Eliminator |
with |
43 |
22 |
24 |
Stainless Steel |
FKM |
350 |
| 3821 V |
3/8 |
Plug |
Pressure Eliminator |
with |
43 |
22 |
24 |
Brass / Steel |
FKM |
350 |
| 5010 |
1/2 |
Coupling |
Standard |
with |
65 |
30 |
40 |
Brass / Steel |
NBR |
300 |
| 5010 RV |
1/2 |
Coupling |
Stainless Steel |
with |
65 |
30 |
40 |
Stainless Steel |
FKM |
300 |
| 5010 RVUV |
1/2 |
Coupling |
Stainless Steel |
without |
65 |
30 |
40 |
Stainless Steel |
FKM |
300 |
| 5010 UV |
1/2 |
Coupling |
Standard |
without |
65 |
30 |
40 |
Brass / Steel |
NBR |
300 |
| 5010 V |
1/2 |
Coupling |
Standard |
with |
65 |
30 |
40 |
Brass / Steel |
FKM |
300 |
| 5010 VUV |
1/2 |
Coupling |
Standard |
without |
65 |
30 |
40 |
Brass / Steel |
FKM |
300 |
| 5011 |
1/2 |
Coupling |
Pressure Eliminator |
with |
65 |
30 |
40 |
Brass / Steel |
NBR |
300 |
| 5011 RFV |
1/2 |
Coupling |
Pressure Eliminator |
with |
65 |
30 |
40 |
Stainless Steel, Brass Valve |
FKM |
300 |
| 5011 RV |
1/2 |
Coupling |
Pressure Eliminator |
with |
65 |
30 |
40 |
Stainless Steel |
FKM |
300 |
| 5011 V |
1/2 |
Coupling |
Pressure Eliminator |
with |
65 |
30 |
40 |
Brass / Steel |
FKM |
300 |
| 5020 |
1/2 |
Plug |
Standard |
with |
46 |
27 |
30 |
Brass / Steel |
NBR |
320 |
| 5020 RUV |
1/2 |
Plug |
Stainless Steel |
without |
42 |
27 |
30 |
Stainless Steel |
na |
300 |
| 5020 RV |
1/2 |
Plug |
Stainless Steel |
with |
46 |
27 |
30 |
Stainless Steel |
FKM |
300 |
| 5020 UV |
1/2 |
Plug |
Standard |
without |
42 |
27 |
30 |
Brass / Steel |
na |
320 |
| 5020 V |
1/2 |
Plug |
Standard |
with |
46 |
27 |
30 |
Brass / Steel |
FKM |
320 |
| 5021 RFV |
1/2 |
Plug |
Pressure Eliminator |
with |
47 |
27 |
30 |
Stainless Steel, Brass Valve |
FKM |
300 |
| 5021 RV |
1/2 |
Plug |
Pressure Eliminator |
with |
47 |
27 |
30 |
Stainless Steel |
FKM |
300 |
| 5021 V |
1/2 |
Plug |
Pressure Eliminator |
with |
47 |
27 |
30 |
Brass / Steel |
FKM |
320 |
| 5021-QC |
1/2 |
Plug |
Pressure Eliminator |
with |
47 |
27 |
30 |
Brass / Steel |
NBR |
320 |
| 7510 |
3/4 |
Coupling |
Standard |
with |
73 |
38 |
52 |
Brass / Steel |
NBR |
280 |
| 7510 RV |
3/4 |
Coupling |
Stainless Steel |
with |
73 |
38 |
52 |
Stainless Steel |
FKM |
250 |
| 7510 RVUV |
3/4 |
Coupling |
Stainless Steel |
without |
73 |
38 |
52 |
Stainless Steel |
FKM |
250 |
| 7510 UV |
3/4 |
Coupling |
Standard |
without |
73 |
38 |
52 |
Brass / Steel |
NBR |
280 |
| 7510 V |
3/4 |
Coupling |
Standard |
with |
73 |
38 |
52 |
Brass / Steel |
FKM |
280 |
| 7510 VUV |
3/4 |
Coupling |
Standard |
without |
73 |
38 |
52 |
Brass / Steel |
FKM |
280 |
| 7511 |
3/4 |
Coupling |
Pressure Eliminator |
with |
72 |
38 |
52 |
Brass / Steel |
NBR |
280 |
| 7511 RFV |
3/4 |
Coupling |
Pressure Eliminator |
with |
72 |
38 |
52 |
Stainless Steel, Brass Valve |
FKM |
250 |
| 7511 RV |
3/4 |
Coupling |
Pressure Eliminator |
with |
72 |
38 |
52 |
Stainless Steel |
FKM |
250 |
| 7511 V |
3/4 |
Coupling |
Pressure Eliminator |
with |
72 |
38 |
52 |
Brass / Steel |
FKM |
280 |
| 7520 RUV |
3/4 |
Plug |
Stainless Steel |
without |
47 |
36 |
39 |
Stainless Steel |
na |
250 |
| 7520 RV |
3/4 |
Plug |
Stainless Steel |
with |
52 |
36 |
39 |
Stainless Steel |
FKM |
250 |
| 7520 S |
3/4 |
Super Nipple |
Standard |
with |
52 |
36 |
39 |
Brass / Steel |
NBR |
300 |
| 7520 UV |
3/4 |
Plug |
Standard |
without |
47 |
36 |
39 |
Brass / Steel |
na |
300 |
| 7520 V |
3/4 |
Plug |
Standard |
with |
52 |
36 |
39 |
Brass / Steel |
FKM |
300 |
| 7520-QC |
3/4 |
Plug |
Standard |
with |
52 |
36 |
39 |
Brass / Steel |
NBR |
300 |
| 7521 RFV |
3/4 |
Plug |
Pressure Eliminator |
with |
53 |
36 |
39 |
Stainless Steel, Brass Valve |
FKM |
250 |
| 7521 RV |
3/4 |
Plug |
Pressure Eliminator |
with |
53 |
36 |
39 |
Stainless Steel |
FKM |
250 |
| 7521 S |
3/4 |
Super Nipple |
Pressure Eliminator |
with |
53 |
36 |
39 |
Brass / Steel |
NBR |
300 |
| 7521 V |
3/4 |
Plug |
Pressure Eliminator |
with |
53 |
36 |
39 |
Brass / Steel |
FKM |
300 |
| 7521-QC |
3/4 |
Plug |
Pressure Eliminator |
with |
53 |
36 |
39 |
Brass / Steel |
NBR |
300 |
|
