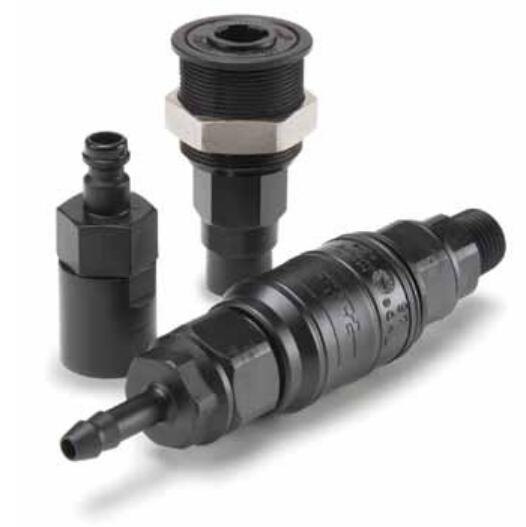

Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Nipples
Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.
Spectrum Series Nipples (thermoplastic) up to 145 psi connect with Spectrum Series Couplers.
Parker's Spectrum Series are low pressure, push-to-connect thermoplastic couplings. Couplers are valved while Nipples are available in both valved and unvalved versions. Couplers and nipples are light weight and compact in size with high flow and chemical compatibility.
Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Nipples
Technical Characteristics:
- Sizes: 1/8"" & 3/8""
- Materials: Body: Acetal, Spring: 316 Stainless Steel
- Port Ends: Female Pipe, Male Pipe, Hose Barb, Bulkhead Hose Barb
- Seal Options: Nitrile, Fluorocarbon
- Other Nipple Options Include: Keyed Colors (Nipple Bodies), PVDF & PEEK materials (contact us for availability)
Markets:
- Chemical Processing
- Food and Beverage
- Industrial
- Semi-conductor industry
Features/Benefits:
- Acetal body material and stainless springs are compatible with many chemicals
- Valved couplers and can be used with valved or unvalved nipples to be versatile as single or double shut off connections
- Light weight and compact with a variety of end fittings including bulk head and panel mount options
- More cost-effective than metal couplings
Applications:
- Fluid conveyance
- Food and beverage processing and packaging
- Process equipment
- Automation equipment
- Cooling lines
Technical Specifications
| Body Size: |
1/8, 3/8 inch |
| Maximum Operating Pressure: |
145 psi, 10 bar |
| Maximum Operating Temperature: |
82 °C, 180 °F |
| Materials of Construction: |
Acetal |
| Application: |
Fluids and gases, low pressure, Low pressure fluids and gases |
| Valve Type: |
Poppet, No Valve, Poppet or unvalved |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
1.5 to 4.5 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Air, fluids and chemicals |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
0 °F |
| Spring Material: |
316 Stainless steel |
