Parker 快速接头和附件
Parker Quick Couplings and Accessories

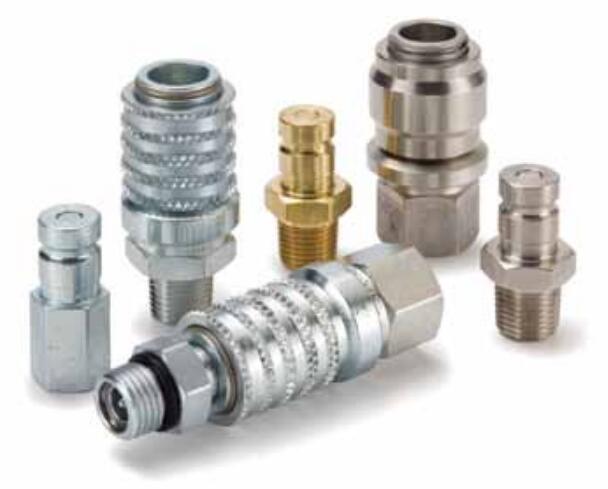

Parker Quick Couplings
Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.





PD Series Couplers (diagnostic test port connectors) 6,000 psi, connect with PD Series Nipples. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PD Couplers allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test points.

Test port Nipples can be permanently mounted on equipment at critical test point locations. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi when connected. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications.



Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers



Technical Characteristics:
- Size: 1/8""
- Materials: Steel, Stainless Steel
- Port Ends: Female NPTF, Female UNF, Male NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene

Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO

Features/Benefits:
- Easy push to connect operation
- Flush face valves minimize air inclusion and spillage
- SAE J1502 / ISO 15171-1 conformance provides global interchangeability with other test point couplings manufactured to the same specifications
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems

Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation



Technical Specifications

Maximum Operating Pressure: 6000 psi, 414 bar
Maximum Operating Temperature: Up to 204 °C, Up to 400 °F, 250 to 400 °F
Materials of Construction: Steel, Stainless steel
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread
Body Size: 1/8 inch
Flow Rate: 0.8 Gal/min
Seal Material: Nitrile, Fluorocarbon
Media: Fluid or gas
Coupling Half: Coupler
Minimum Operating Temperature: -40 to -15 °F
Valve Type: Non-spill
Plating Type: Zinc with clear trivalent chromate
Application: Diagnostic
Sleeve Type: Push to connect
Lock Type: Locking balls



Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers 型号

Part Body Material Thread Type Connection Thread Size (inch) Connection Type
PD222 Steel Female 1/8 - 27 NPTF
PD240 Steel Female 7/16 - 20 UNF
PD242 Steel Female 1/4 - 18 NPTF
PD243 Steel Male 1/4 - 18 NPTF
PD260 Steel Female 9/16 - 18 UNF
SSPD242Y Stainless steel Female 1/4 - 18 NPTF
