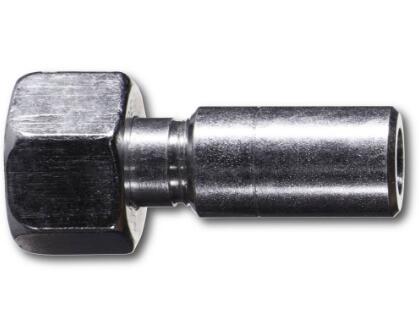

Crimped Thermoplastic UHP Hose Fittings TX Series
Parker High Pressure TX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for tube cleaning hose types with working pressure from 100 up to 150 MPa.
Parker Polyflex High Pressure TX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings TX Series
Markets:
- Oil & Gas
- Industrial
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Tube cleaning (heat ex-changers in the chemical and oil refining industry).
- Flexible lance at working pressure of 75 MPa and higher.
- Suitable for tube cleaning hose types with working pressure from 100 up to 150 MPa (14500 up to 21750 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
3, 4, 5, 6, 8, NA, 4, 3, 5, 6, 8 mm |
| Hose I.D. (size): |
-2, -025, -3, -4, -5, NA, -02, -03, -04, -05 |
| Hose Inside Diameter: |
1/8, 5/32, 3/16, 1/4, 5/16, NA inch |
| Length: |
46, 44, 47, 49, 56, 54, 61, 62, 69, 45, 50, 40, 48, 53, 52, 64, 60, 66, 74, 70, 68, 71, 36, 51, 58, 65, 55, 59, 427, 378, 372, 350, 24, 26,5, 29, 31,5, 31, 33, 36, 38, 37, 45, 33,5, 35,5, 38,5, 41, 39,5, 34, 32 mm, 1,8, 1,7, 1,9, 2,2, 2,1, 2,4, 2,7, 2, 1,6, 2,5, 2,6, 2,9, 2,8, 1,4, 2,3, 16,8, 14,9, 14,6, 13,8, 1,0, 1,1, 1,2, 1,3, 1,5, 1,8, 1,4, 1,6, 1,7 inch |
| Maximum Operating Pressure: |
15000, 21750, 20300, 15950, 14500, 10000, 5000, 21,750, 15,950, 20,300, 14,500 psi |
| Shape: |
Straight |
| Product Style: |
National Pipe Tapered (NPT) male, National Pipe Tapered (NPT) female, JIC female swivel, Type ?M? female swivel, Metric female swivel heavy series with O-ring, BSP female swivel (ballnose), BSP male nozzle nipple, Metric male nozzle nipple, API flange, sw |
| Materials of Construction: |
Carbon steel zinc plated, Stainless Steel |
Crimped Thermoplastic UHP Hose Fittings TX Series 型号
| Part |
Maximum Working Pressure (MPa) |
Hose I.D. (mm) |
Fitting Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Thread Type |
| 101TX-1-02-PL |
110,0 |
3,0 |
1 |
1/16-27 NPT |
NA |
NPT |
| 101TX-1-025-PL |
150 |
4,0 |
1 |
1/16-27 NPT |
NA |
NPT |
| 101TX-1-025W |
150 |
4 |
1 |
1/16 |
NA |
NPT |
| 101TX-1-02W |
103.4 |
3 |
1 |
1/16 |
NA |
NPT |
| 101TX-2-02-PL |
110,0 |
3,0 |
1 |
1/8-27 NPT |
NA |
NPT |
| 101TX-2-025-PL |
150 |
4,0 |
1 |
1/8-27 NPT |
NA |
NPT |
| 101TX-2-025W |
150 |
4 |
1 |
1/8 |
NA |
NPT |
| 101TX-2-02W |
103.4 |
3 |
1 |
1/8 |
NA |
NPT |
| 101TX-2-03-PL |
140 |
4,8 |
1 |
1/8-27 NPT |
NA |
NPT |
| 101TX-2-03W |
140 |
4.8 |
1 |
1/8 |
NA |
NPT |
| 101TX-2-04-PL |
110 |
6,4 |
1 |
1/8-27 NPT |
NA |
NPT |
| 101TX-4-025-PL |
150 |
4,0 |
1 |
1/4-18 NPT |
NA |
NPT |
| 101TX-4-025W |
150 |
4 |
1 |
1/4 |
NA |
NPT |
| 101TX-4-03-PL |
140 |
4,8 |
1 |
1/4-18 NPT |
NA |
NPT |
| 101TX-4-03W |
140 |
4.8 |
1 |
1/4 |
NA |
NPT |
| 101TX-4-04-PL |
110 |
6,4 |
1 |
1/4-18 NPT |
NA |
NPT |
| 101TX-4-04W |
140 |
6.4 |
1 |
1/4 |
NA |
NPT |
| 101TX-4-05-PL |
100 |
7,9 |
1 |
1/4-18 NPT |
NA |
NPT |
| 101TX-4-05W |
103.4 |
7.9 |
1 |
1/4 |
NA |
NPT |
| 101TX-6-05-PL |
100 |
7,9 |
1 |
3/8-18 NPT |
NA |
NPT |
| 101TX-6-05W |
103.4 |
7.9 |
1 |
3/8 |
NA |
NPT |
| 102TX-1-025-PL |
150 |
4,0 |
2 |
1/16-27 NPT |
NA |
NPT |
| 102TX-1-025W |
103.4 |
4 |
2 |
1/16 |
NA |
NPT |
| 102TX-1-03-PL |
140 |
4,8 |
2 |
1/16-27 NPT |
NA |
NPT |
| 102TX-2-03W |
103.4 |
4.8 |
2 |
1/8 |
NA |
NPT |
| 102TX-4-04-PL |
110 |
6,4 |
2 |
1/4-18 NPT |
NA |
NPT |
| 102TX-4-04W |
103.4 |
6.4 |
2 |
1/4 |
NA |
NPT |
| 106TX-6-03W |
140 |
4.8 |
6 |
9/16-18 |
NA |
UNF |
| 106TX-6-04W |
110 |
6.4 |
6 |
9/16-18 |
NA |
UNF |
| 1AYTX-6-025W |
150 |
4 |
AY |
9/16-18 |
NA |
UNF |
| 1AYTX-6-03W |
150 |
4.8 |
AY |
9/16-18 |
NA |
UNF |
| 1AYTX-6-04W |
110 |
6.4 |
AY |
9/16-18 |
NA |
UNF |
| 1AYTX-8-05W |
100 |
7.9 |
AY |
3/4-16 |
NA |
UNF |
| 1C9TX-14-05W |
100 |
7.9 |
C9 |
NA |
22x1,5 |
Metric |
| 1C9TX-16-025W |
150 |
4 |
C9 |
NA |
24x1.5 |
Metric |
| 1C9TX-16-02W |
110 |
3 |
C9 |
NA |
24x1.5 |
Metric |
| 1C9TX-16-03W |
150 |
4.8 |
C9 |
NA |
24x1.5 |
Metric |
| 1C9TX-16-04W |
110 |
6.4 |
C9 |
NA |
24x1.5 |
Metric |
| 1HETX-48-48-FLAT |
103.5 |
NA |
HE |
5 3/8" - 3 1/2 |
NA |
Acme |
| 1HNTX-48-48 |
103.5 |
NA |
HN |
5 3/8" - 3 1/2 |
NA |
Acme |
| 1U0TX-2-02W |
110 |
3 |
U0 |
1/8 |
NA |
BSP |
| 1U0TX-4-025W |
150 |
4 |
U0 |
1/4 |
NA |
BSP |
| 1U0TX-4-02W |
110 |
3 |
U0 |
1/4 |
NA |
BSP |
| 1U0TX-4-03W |
150 |
4.7 |
U0 |
1/4 |
NA |
BSP |
| 1U0TX-4-04W |
110 |
6.3 |
U0 |
1/4 |
NA |
BSP |
| 1U0TX-6-05W |
100 |
7.9 |
U0 |
3/8 |
NA |
BSP |
| 1YBTX-2-025W |
150 |
4 |
YB |
1/8 |
NA |
BSP |
| 1YBTX-2-02W |
110 |
3 |
YB |
1/8 |
NA |
BSP |
| 1YBTX-2-03-PL |
140 |
4,8 |
YB |
G 1/8" |
NA |
BSP |
| 1YBTX-2-03W |
150 |
4.8 |
YB |
1/8 |
NA |
BSP |
| 1YBTX-2-04-PL |
110 |
6,4 |
YB |
G 1/8" |
NA |
BSP |
| 1YBTX-2-04W |
110 |
6.4 |
YB |
1/8 |
NA |
BSP |
| 1YBTX-4-025W |
150 |
4 |
YB |
1/4 |
NA |
BSP |
| 1YBTX-4-03W |
150 |
4.8 |
YB |
1/4 |
NA |
BSP |
| 1YBTX-4-04-PL |
110 |
6,4 |
YB |
G 1/4" |
NA |
BSP |
| 1YBTX-4-04W |
110 |
6.4 |
YB |
1/4 |
NA |
BSP |
| 1YBTX-4-05-PL |
100 |
7,9 |
YB |
G 1/4" |
NA |
BSP |
| 1YBTX-4-05W |
100 |
7.9 |
YB |
1/4 |
NA |
BSP |
| 1YBTX-6-05W |
100 |
7.9 |
YB |
3/8 |
NA |
BSP |
| 1YHTX-4-025-PL |
150 |
4,0 |
YH |
1/4-28 UNF |
NA |
UNF |
| 1YHTX-4-025W |
150 |
4 |
YH |
1/4 - 28 |
NA |
UNF |
| 1YHTX-4-025W-LH |
150 |
4 |
YH |
1/4 - 28 |
NA |
UNF - LH |
| 1YHTX-6-03-PL |
140 |
4,8 |
YH |
3/8-24 UNF |
NA |
UNF |
| 1YHTX-6-03W |
150 |
4.8 |
YH |
3/8 - 24 |
NA |
UNF |
| 1YZTX-1-025W |
150 |
4 |
YZ |
NA |
5 |
Metric |
| 1YZTX-1-02WS |
110 |
3 |
YZ |
NA |
5 |
Metric |
| 1YZTX-2-025-PL |
150 |
4,0 |
YZ |
NA |
M7 |
Metric |
| 1YZTX-2-025W |
150 |
4 |
YZ |
NA |
7 |
Metric |
| 1YZTX-2-02W |
110 |
3 |
YZ |
NA |
7 |
Metric |
| 1YZTX-2-03W |
150 |
4.8 |
YZ |
NA |
7 |
Metric |
| 1YZTX-4-025W |
150 |
4 |
YZ |
NA |
8 |
Metric |
| 1YZTX-4-03W |
150 |
4.8 |
YZ |
NA |
8 |
Metric |
| 1YZTX-5-025-PL |
150 |
4,0 |
YZ |
NA |
M10x1 |
Metric |
| 1YZTX-5-025W |
150 |
4 |
YZ |
NA |
10x1 |
Metric |
| 1YZTX-5-04W |
110 |
6.4 |
YZ |
NA |
10x1 |
Metric |
| 1YZTX-5-05W |
100 |
7.9 |
YZ |
NA |
10x1 |
Metric |
|
