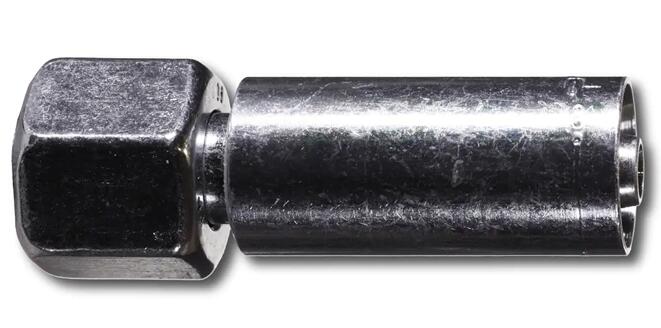

Crimped Thermoplastic Hydraulic Hose Fittings, YX Series

Parker YX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for PTFE hose types 2033T, 2040H and 2040N.





Parker YX Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.



Crimped Thermoplastic Hydraulic Hose Fittings, YX Series



Markets:
- Industrial
- Transportation
- Mobile Hydraulics
- Pneumatic

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Compressor discharge lines
- Coolant lines
- Fluid transfer and handling such as chemical transfer lines and steam lines, e.g. in the process industry
- Industrial hydraulics
- Pneumatics
- Medium pressure paint spray
- Suitable for PTFE hose types 2033T, 2040H and 2040N with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)



Technical Specifications

Nominal Hose Inside Diameter: 5, 6, 8, 10, 12, 16, 20, 25 mm
Hose I.D. (size): -3, -4, -5, -6, -8, -10, -12, -16
Hose Inside Diameter: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1 inch
Connection Thread Size: 1/8 - 27, 1/4 - 18, 3/8 - 18, 1/2 - 14, 3/4 - 14, 1 - 11 1/2, 7/16 - 20, 1/2 - 20, 9/16 - 18, 3/4 - 16, 7/8 - 14, 1 1/16 - 12, 1 5/16 - 12, 1 5/8 - 12, NA, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 5/8 inch
Connection Type: NPTF, UNF, NPSM, NA, BSP, Metric
Tube Outside Diameter: NA, 6, 8, 10, 12, 15, 18, 22, 28, 14, 16, 20, 25, 30 mm, NA
Length: 1,9, 2, 2,1, 2,2, 2,4, 2,6, 2,8, 3, 3,1, 1,6, 1,7, 1,8, 2,3, 2,9, 2,7, 3,2, 3,8, 4,5, 4,4, 3,3, 3,9, 2,5, 3,4, 4,6, 4,7 inch
Shape: Straight, 45° Elbow, 90° Elbow, 90° Compact Elbow
Fitting Type: 01, 03, 06, 07, 1D, 37, 39, 3B, 92, B1, B2, B4, C3, C9, CA, D0, D2, D9, U0
Materials of Construction: Galvanised steel



Crimped Thermoplastic Hydraulic Hose Fittings, YX Series 型号

Part Maximum Working Pressure (MPa) Style Hose I.D. (mm) Connection Thread Size (mm) Length (mm)
101YX-12-10 21 National Pipe Tapered (NPT) male 15.9 NA 66
101YX-12-12 21 National Pipe Tapered (NPT) male 19 NA 70
101YX-16-16 17 National Pipe Tapered (NPT) male 25.4 NA 78
101YX-2-03 34.5 National Pipe Tapered (NPT) male 4.8 NA 48
101YX-4-03 34.5 National Pipe Tapered (NPT) male 4.8 NA 52
101YX-4-04 34.5 National Pipe Tapered (NPT) male 6.4 NA 54
101YX-4-06 34.5 National Pipe Tapered (NPT) male 9.5 NA 55
101YX-6-04 27.5 National Pipe Tapered (NPT) male 6.4 NA 56
101YX-6-05 27.5 National Pipe Tapered (NPT) male 7.9 NA 57
101YX-6-06 27.5 National Pipe Tapered (NPT) male 9.5 NA 57
101YX-6-08 27.5 National Pipe Tapered (NPT) male 12.7 NA 61
101YX-8-08 24 National Pipe Tapered (NPT) male 12.7 NA 66
103YX-10-08 34.5 SAE (JIC) 37° male 127 NA 70
103YX-12-10 34.5 SAE (JIC) 37° male 159 NA 71
103YX-16-12 27.5 SAE (JIC) 37° male 190 NA 76
103YX-4-03 41 SAE (JIC) 37° male 48 NA 52
103YX-5-04 41 SAE (JIC) 37° male 64 NA 56
103YX-6-05 34.5 SAE (JIC) 37° male 79 NA 57
103YX-8-06 34.5 SAE (JIC) 37° male 95 NA 60
106YX-10-08 34.5 SAE (JIC) 37° female swivel 12.7 NA 49
106YX-12-10 34.5 SAE (JIC) 37° female swivel 15.9 NA 50
106YX-16-12 27.5 SAE (JIC) 37° female swivel 19 NA 56
106YX-20-16 20 SAE (JIC) 37° female swivel 25.4 NA 56
106YX-4-03 41 SAE (JIC) 37° female swivel 4.8 NA 40
106YX-5-04 41 SAE (JIC) 37° female swivel 6.4 NA 42
106YX-6-05 34.5 SAE (JIC) 37° female swivel 7.9 NA 45
106YX-8-06 34.5 SAE (JIC) 37° female swivel 9.5 NA 46
107YX-12-10 21 NPSM female swivel 15.9 NA 53
107YX-12-12 21 NPSM female swivel 19 NA 59
107YX-2-03 34.5 NPSM female swivel 4.8 NA 47
107YX-4-03 34.5 NPSM female swivel 4.8 NA 44
107YX-4-04 34.5 NPSM female swivel 6.4 NA 47
107YX-6-05 27.5 NPSM female swivel 7.9 NA 48
107YX-6-06 27.5 NPSM female swivel 9.5 NA 50
107YX-8-08 24 NPSM female swivel 12.7 NA 51
11DYX-10-05 25 Metric standpipe 7.9 NA 59
11DYX-12-06 25 Metric standpipe 9.5 NA 79
11DYX-15-08 25 Metric standpipe 12.7 NA 65
11DYX-28-16 10 Metric standpipe 25.4 NA 74
11DYX-6-03 25 Metric standpipe 4.8 NA 55
11DYX-8-04 25 Metric standpipe 6.4 NA 57
137YX-10-08 34.5 SAE (JIC) 37° female swivel 12.7 NA 81
137YX-12-10 34.5 SAE (JIC) 37° female swivel 15.9 NA 96
137YX-16-12 27.5 SAE (JIC) 37° female swivel 19 NA 114
137YX-20-16 20 SAE (JIC) 37° female swivel 25.4 NA 113
137YX-4-03 41 SAE (JIC) 37° female swivel 4.8 NA 57
137YX-5-04 41 SAE (JIC) 37° female swivel 6.4 NA 69
137YX-6-05 34.5 SAE (JIC) 37° female swivel 7.9 NA 67
137YX-8-06 34.5 SAE (JIC) 37° female swivel 9.5 NA 65
139YX-10-08 34.5 SAE (JIC) 37° female swivel 12.7 NA 74
139YX-12-10 34.5 SAE (JIC) 37° female swivel 15.9 NA 84
139YX-16-12 27.5 SAE (JIC) 37° female swivel 19 NA 100
139YX-20-16 20 SAE (JIC) 37° female swivel 25.4 NA 100
139YX-4-03 41 SAE (JIC) 37° female swivel 4.8 NA 48
139YX-5-04 41 SAE (JIC) 37° female swivel 6.4 NA 58
139YX-6-05 34.5 SAE (JIC) 37° female swivel 7.9 NA 59
139YX-8-06 34.5 SAE (JIC) 37° female swivel 9.5 NA 58
192YX-12-10 35 BSP female swivel 60° cone 15.9 NA 50
192YX-12-12 35 BSP female swivel 60° cone 19 NA 56
192YX-16-12 28 BSP female swivel 60° cone 19 NA 56
192YX-16-16 28 BSP female swivel 60° cone 25.4 NA 57
192YX-20-16 25 BSP female swivel 60° cone 25.4 NA 58
192YX-4-03 63 BSP female swivel 60° cone 4.8 NA 42
192YX-4-04 63 BSP female swivel 60° cone 6.3 NA 44
192YX-6-05 55 BSP female swivel 60° cone 7.9 NA 45
192YX-6-06 55 BSP female swivel 60° cone 9.5 NA 46
192YX-8-06 43 BSP female swivel 60° cone 9.5 NA 46
192YX-8-08 43 BSP female swivel 60° cone 12.7 NA 52
1B1YX-12-10 35 BSP female swivel 60° cone 15.9 NA 99
1B1YX-12-12 35 BSP female swivel 60° cone 19 NA 117
1B1YX-16-16 28 BSP female swivel 60° cone 25.4 NA 120
1B1YX-20-16 25 BSP female swivel 60° cone 25.4 NA 116
1B1YX-4-03 63 BSP female swivel 60° cone 4.8 NA 58
1B1YX-4-04 63 BSP female swivel 60° cone 6.4 NA 69
1B1YX-6-05 55 BSP female swivel 60° cone 7.9 NA 68
1B1YX-6-06 55 BSP female swivel 60° cone 9.5 NA 64
1B1YX-8-06 43 BSP female swivel 60° cone 9.5 NA 65
1B1YX-8-08 43 BSP female swivel 60° cone 12.7 NA 86
1B2YX-12-10 35 BSP female swivel 60° cone 15.9 NA 84
1B2YX-12-12 35 BSP female swivel 60° cone 19 NA 100
1B2YX-16-16 28 BSP female swivel 60° cone 25.4 NA 100
1B2YX-20-16 25 BSP female swivel 60° cone 25.4 NA 100
1B2YX-4-03 63 BSP female swivel 60° cone 4.8 NA 48
1B2YX-4-04 63 BSP female swivel 60° cone 6.4 NA 58
1B2YX-6-05 55 BSP female swivel 60° cone 7.9 NA 59
1B2YX-6-06 55 BSP female swivel 60° cone 9.5 NA 58
1B2YX-8-06 43 BSP female swivel 60° cone 9.5 NA 58
1B2YX-8-08 43 BSP female swivel 60° cone 12.7 NA 74
1B4YX-4-04 63 BSP female swivel 60° cone 6.3 NA 46
1B4YX-6-05 55 BSP female swivel 60° cone 7.9 NA 51
1B4YX-6-06 55 BSP female swivel 60° cone 9.5 NA 51
1B4YX-8-08 43 BSP female swivel 60° cone 12.7 NA 57
1C3YX-10-03 25 Metric female swivel 24°/60° 4.8 16x1.5 43
1C3YX-10-04 25 Metric female swivel 24°/60° 6.4 16x1.5 46
1C3YX-10-05 25 Metric female swivel 24°/60° 7.9 16x1.5 46
1C3YX-10-06 25 Metric female swivel 24°/60° 9.5 16x1.5 49
1C3YX-12-06 25 Metric female swivel 24°/60° 9.5 18x1.5 48
1C3YX-12-08 25 Metric female swivel 24°/60° 12.7 18x1.5 52
1C3YX-15-08 25 Metric female swivel 24°/60° 12.7 22x1.5 51
1C3YX-18-10 16 Metric female swivel 24°/60° 15.9 26x1.5 51
1C3YX-18-12 16 Metric female swivel 24°/60° 19 26x1.5 57
1C3YX-22-12 16 Metric female swivel 24°/60° 19 30x2 57
1C3YX-28-16 10 Metric female swivel 24°/60° 25.4 36x2 59
1C3YX-6-03 25 Metric female swivel 24°/60° 4.8 12x1.5 43
1C3YX-8-03 25 Metric female swivel 24°/60° 4.8 14x1.5 43
1C3YX-8-04 25 Metric female swivel 24°/60° 6.4 14x1.5 46
1C9YX-10-04 63 Metric female swivel 24° with O-ring 6.4 18x1.5 54
1C9YX-12-05 63 Metric female swivel 24° with O-ring 7.9 20x1.5 56
1C9YX-14-06 63 Metric female swivel 24° with O-ring 9.5 22x1.5 57
1C9YX-16-08 42 Metric female swivel 24° with O-ring 12.7 24x1.5 65
1C9YX-20-10 42 Metric female swivel 24° with O-ring 15.9 30x2 68
1C9YX-25-12 42 Metric female swivel 24° with O-ring 19 36x2 77
1C9YX-30-16 42 Metric female swivel 24° with O-ring 25.4 42x2 79
1C9YX-8-03 63 Metric female swivel 24° with O-ring 4.8 16x1.5 47
1C9YX-8-04 63 Metric female swivel 24° with O-ring 6.4 16x1.5 51
1CAYX-10-04 40 Metric female swivel 24° with O-ring 6.4 16x1.5 50
1CAYX-10-05 40 Metric female swivel 24° with O-ring 7.9 16x1.5 50
1CAYX-12-06 35 Metric female swivel 24° with O-ring 9.5 18x1.5 50
1CAYX-15-08 31.5 Metric female swivel 24° with O-ring 12.7 22x1.5 59
1CAYX-18-10 31.5 Metric female swivel 24° with O-ring 15.9 26x1.5 56
1CAYX-22-12 28 Metric female swivel 24° with O-ring 19 30x2 62
1CAYX-28-16 21 Metric female swivel 24° with O-ring 25.4 36x2 64
1CAYX-6-03 31.5 Metric female swivel 24° with O-ring 4.8 12x1.5 45
1CAYX-8-04 42.5 Metric female swivel 24° with O-ring 6.4 14x1.5 50
1D0YX-10-05 40 Metric male 24° 7.9 16x1.5 54
1D0YX-12-06 35 Metric male 24° 9.5 18x1.5 54
1D0YX-15-08 31 Metric male 24° 12.7 22x1.5 59
1D0YX-18-10 28 Metric male 24° 15.9 26x1.5 59
1D0YX-22-12 28 Metric male 24° 19 30x2 67
1D0YX-28-16 21 Metric male 24° 25.4 36x2 67
1D0YX-6-03 25 Metric male 24° 4.8 12x1.5 48
1D0YX-8-04 42.5 Metric male 24° 6.4 14x1.5 50
1D2YX-10-04 63 Metric male 24° 6.4 18x1.5 54
1D2YX-12-05 63 Metric male 24° 7.9 20x1.5 55
1D2YX-14-06 63 Metric male 24° 9.5 22x1.5 57
1D2YX-16-08 42 Metric male 24° 12.7 24x1.5 61
1D2YX-20-10 42 Metric male 24° 15.9 30x2 65
1D2YX-25-12 42 Metric male 24° 19 36x2 71
1D2YX-30-16 42 Metric male 24° 25.4 42x2 73
1D2YX-8-03 63 Metric male 24° 4.8 16x1.5 50
1D9YX-12-10 35 BSP male 15.9 NA 66
1D9YX-12-12 35 BSP male 19 NA 72
1D9YX-16-12 28 BSP male 19 NA 74
1D9YX-2-03 55 BSP male 4.8 NA 48
1D9YX-20-16 21 BSP male 25.4 NA 76
1D9YX-4-03 63 BSP male 4.8 NA 54
1D9YX-4-04 63 BSP male 6.4 NA 58
1D9YX-6-05 55 BSP male 7.9 NA 58
1D9YX-6-06 55 BSP male 9.5 NA 58
1D9YX-8-06 43 BSP male 9.5 NA 60
1D9YX-8-08 43 BSP male 12.7 NA 64
1U0YX-10-08 35 BSP female swivel (ballnose) 12.7 NA 51
1U0YX-12-10 35 BSP female swivel (ballnose) 15.9 NA 50
1U0YX-12-12 35 BSP female swivel (ballnose) 19 NA 56
1U0YX-16-12 28 BSP female swivel (ballnose) NA 56
1U0YX-16-16 28 BSP female swivel (ballnose) 25.4 NA 57
1U0YX-2-03 41 BSP female swivel (ballnose) 4.8 NA 43
1U0YX-20-16 21 BSP female swivel (ballnose) 25.4 NA 58
1U0YX-4-03 63 BSP female swivel (ballnose) 4.8 NA 42
1U0YX-4-04 63 BSP female swivel (ballnose) 6.4 NA 45
1U0YX-6-03 55 BSP female swivel (ballnose) 4.8 NA 45
1U0YX-6-04 55 BSP female swivel (ballnose) 6.4 NA 45
1U0YX-6-05 55 BSP female swivel (ballnose) 7.9 NA 45
1U0YX-6-06 55 BSP female swivel (ballnose) 9.5 NA 48
1U0YX-8-06 43 BSP female swivel (ballnose) 9.5 NA 48
1U0YX-8-08 43 BSP female swivel (ballnose) 12.7 NA 53
