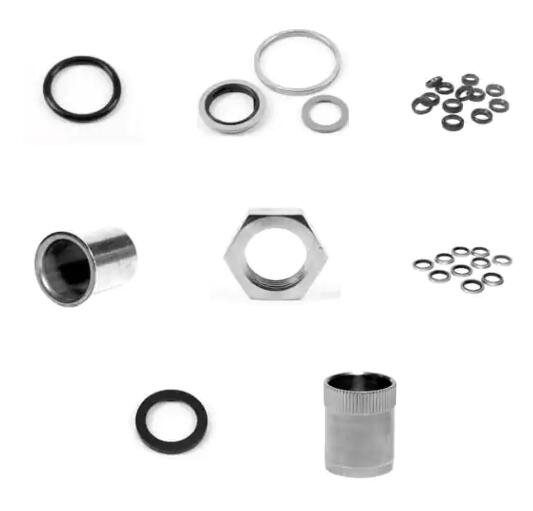

The function of accessories for Ermeto DIN hydraulic tube fittings is the completion of fitting types within the fitting series
The function of accessories for Ermeto DIN hydraulic tube fittings is the completion of fitting types within the fitting series. Most of the components, for example the ED Eolastic soft seal and OR, O-rings for male stud ends – are sealing rings. These components ensure that the complete fitting system is leak-free.
| Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection Size |
Shape |
Material |
Connection 2 Thread Size (metric) |
Connection Tube I.D. (mm) |
| 8207SS1/2 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/2 A |
na |
| 8207SS1/4A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/4 A |
na |
| 8207SS1/8 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/8 A |
na |
| 8207SS11/2 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 1/2 A |
na |
| 8207SS11/4 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 1/4 A |
na |
| 8207SS1A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 A |
na |
| 8207SS3/4 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 3/4 A |
na |
| 8207SS3/8A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 3/8 A |
na |
| DKA08CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 08x1.0 |
na |
| DKA1/2X4.571X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/2 A |
na |
| DKA1/2X4.5CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/2 A |
na |
| DKA1/471X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/4 A |
na |
| DKA1/4CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/4 A |
na |
| DKA1/871X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/8 A |
na |
| DKA1/8CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/8 A |
na |
| DKA1071X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 10x1.0 |
na |
| DKA10CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 10x1.0 |
na |
| DKA11/271X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 48x2.0 |
na |
| DKA11/2CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 48x2.0 |
na |
| DKA11/471X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 42x2.0 |
na |
| DKA11/4CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| DKA1271X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 12x1.5 |
na |
| DKA12CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| DKA1471X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 14x1.5 |
na |
| DKA14CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| DKA1671X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 16x1.5 |
na |
| DKA16CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| DKA171X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1 A |
na |
| DKA1871X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 18x1.5 |
na |
| DKA18CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| DKA1CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1 A |
na |
| DKA2071X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 20x1.5 |
na |
| DKA20CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| DKA22X4.571X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 22x1.5 |
na |
| DKA22X4.5CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| DKA26X3.571X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 26x1.5 |
na |
| DKA26X3.5CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| DKA2771X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 27x2.0 |
na |
| DKA27CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 27x2.0 |
na |
| DKA3/471X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 3/4 A |
na |
| DKA3/4CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 3/4 A |
na |
| DKA3/871X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 3/8 A |
na |
| DKA3/8CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 3/8 A |
na |
| DKA3371X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 33x2.0 |
na |
| DKA33CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 33x2.0 |
na |
| DKAZ1/2CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/2 A |
na |
| DKAZ1/4CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/4 A |
na |
| DKAZ1/8CFX |
LR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/8 A |
na |
| DKAZ10CFX |
LM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 10x1.0 |
na |
| DKAZ11/2CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 48x2.0 |
na |
| DKAZ11/4CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| DKAZ12CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| DKAZ14CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| DKAZ16CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| DKAZ18CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| DKAZ1CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1 A |
na |
| DKAZ20CFX |
SM/SR |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| DKAZ22CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| DKAZ26CFX |
LM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| DKAZ27CFX |
SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 27x2.0 |
na |
| DKAZ3/4CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 3/4 A |
na |
| DKAZ3/8CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 3/8 A |
na |
| DKAZ33CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 33x2.0 |
na |
| DKI1/2CFX |
na |
Female thread |
na |
na |
Sealing ring for pressure gauge connectors |
Steel |
G 1/2 |
na |
| DKI1/4CFX |
na |
Female thread |
na |
na |
Sealing ring for pressure gauge connectors |
Steel |
G 1/4 |
na |
| DOZ04LL |
Very light |
na |
na |
4 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06L |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06L71 |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ06LL |
Very light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06LNBR71 |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ06LVIT |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ06S |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06S71 |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ06SNBR71 |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ06SVIT |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ08L |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ08L71 |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ08LNBR71 |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ08LVIT |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ08S |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ08S71 |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ08SNBR71 |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ08SVIT |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ10L |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ10L71 |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ10LNBR71 |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ10LVIT |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ10S |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ10S71 |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ10SNBR71 |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ10SVIT |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ12L |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ12L71 |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ12LNBR71 |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ12LVIT |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ12S |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ12S71 |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ12SNBR71 |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ12SVIT |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ14S |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ14S71 |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ14SNBR71 |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ14SVIT |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ15L |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ15L71 |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ15LNBR71 |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ15LVIT |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ16S |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ16S71 |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ16SNBR71 |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ16SVIT |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ18L |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ18L71 |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ18LNBR71 |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ18LVIT |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ20S |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ20S71 |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ20SNBR71 |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ20SVIT |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ22L |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ22L71 |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ22LNBR71 |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ22LVIT |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ25S |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ25S71 |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ25SNBR71 |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ25SVIT |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ28L |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ28L71 |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ28LNBR71 |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ28LVIT |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ30S |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ30S71 |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ30SNBR71 |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ30SVIT |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ35L |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ35L71 |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ35LNBR71 |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ35LVIT |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ38S |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ38S71 |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ38SNBR71 |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ38SVIT |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ42L |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ42L71 |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ42LNBR71 |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ42LVIT |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| E04/02X |
na |
na |
na |
4 |
Tube/hose insert for plastic tubing |
Brass |
na |
2 |
| E04/2.5X |
na |
na |
na |
4 |
Tube/hose insert for plastic tubing |
Brass |
na |
2.5 |
| E0506/03X |
na |
na |
na |
05/06 |
Tube/hose insert for plastic tubing |
Brass |
na |
3 |
| E0506/04X |
na |
na |
na |
05/06 |
Tube/hose insert for plastic tubing |
Brass |
na |
4 |
| E06/05X |
na |
na |
na |
6 |
Tube/hose insert for plastic tubing |
Brass |
na |
5 |
| E08/04X |
na |
na |
na |
8 |
Tube/hose insert for plastic tubing |
Brass |
na |
4 |
| E08/05X |
na |
na |
na |
8 |
Tube/hose insert for plastic tubing |
Brass |
na |
5 |
| E0810/06X |
na |
na |
na |
08/10 |
Tube/hose insert for plastic tubing |
Brass |
na |
6 |
| E10/08X |
na |
na |
na |
10 |
Tube/hose insert for plastic tubing |
Brass |
na |
8 |
| E12/08X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
8 |
| E12/09X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
9 |
| E1215/10X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
10 |
| E15/12X |
na |
na |
na |
15 |
Tube/hose insert for plastic tubing |
Brass |
na |
12 |
| E1516/12.5X |
na |
na |
na |
15/16 |
Tube/hose insert for plastic tubing |
Brass |
na |
12.5 |
| E18/14X |
na |
na |
na |
18 |
Tube/hose insert for plastic tubing |
Brass |
na |
14 |
| E1820/16X |
na |
na |
na |
18/20 |
Tube/hose insert for plastic tubing |
Brass |
na |
16 |
| E22/18X |
na |
na |
na |
22 |
Tube/hose insert for plastic tubing |
Brass |
na |
18 |
| GM06L71X |
Light |
na |
na |
6 |
Locknut for bulk heads |
Stainless steel |
M 12x1.5 |
na |
| GM06LCFX |
Light |
na |
na |
6 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| GM08L71X |
Light |
na |
na |
8 |
Locknut for bulk heads |
Stainless steel |
M 14x1.5 |
na |
| GM08LCFX |
Light |
na |
na |
8 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| GM10L71X |
Light |
na |
na |
10 |
Locknut for bulk heads |
Stainless steel |
M 16x1.5 |
na |
| GM10LCFX |
Light |
na |
na |
10 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| GM12L71X |
Light |
na |
na |
12 |
Locknut for bulk heads |
Stainless steel |
M 18x1.5 |
na |
| GM12LCFX |
Light |
na |
na |
12 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| GM12S71X |
Heavy |
na |
na |
12 |
Locknut for bulk heads |
Stainless steel |
M 20x1.5 |
na |
| GM12SCFX |
Heavy |
na |
na |
12 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| GM15L71X |
Light |
na |
na |
15 |
Locknut for bulk heads |
Stainless steel |
M 22x1.5 |
na |
| GM15LCFX |
Light |
na |
na |
15 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| GM16S71X |
Heavy |
na |
na |
16 |
Locknut for bulk heads |
Stainless steel |
M 24x1.5 |
na |
| GM16SCFX |
Heavy |
na |
na |
16 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 24x1.5 |
na |
| GM18L71X |
Light |
na |
na |
18 |
Locknut for bulk heads |
Stainless steel |
M 26x1.5 |
na |
| GM18LCFX |
Light |
na |
na |
18 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| GM22L71X |
Light |
na |
na |
22 |
Locknut for bulk heads |
Stainless steel |
M 30x2.0 |
na |
| GM22LCFX |
Light |
na |
na |
22 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 30x2.0 |
na |
| GM28L71X |
Light |
na |
na |
28 |
Locknut for bulk heads |
Stainless steel |
M 36x2.0 |
na |
| GM28LCFX |
Light |
na |
na |
28 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 36x2.0 |
na |
| GM30S71X |
Heavy |
na |
na |
30 |
Locknut for bulk heads |
Stainless steel |
M 42x2.0 |
na |
| GM30SCFX |
Heavy |
na |
na |
30 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| GM35L71X |
Light |
na |
na |
35 |
Locknut for bulk heads |
Stainless steel |
M 45x2.0 |
na |
| GM35LCFX |
Light |
na |
na |
35 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 45x2.0 |
na |
| GM42L71X |
Light |
na |
na |
42 |
Locknut for bulk heads |
Stainless steel |
M 52x2.0 |
na |
| GM42LCFX |
Light |
na |
na |
42 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 52x2.0 |
na |
| KD1/271 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/2 A |
na |
| KD1/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/4 A |
na |
| KD1/871 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/8 A |
na |
| KD1071 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 10x1.0 |
na |
| KD11/271 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 1/2 A |
na |
| KD11/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 1/4 A |
na |
| KD1271 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 12x1.5 |
na |
| KD1471 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 14x1.5 |
na |
| KD1671 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 16x1.5 |
na |
| KD171 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 A |
na |
| KD1871 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 18x1.5 |
na |
| KD2071 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 20x1.5 |
na |
| KD2271 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 22x1.5 |
na |
| KD2671 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 26x1.5 |
na |
| KD2771 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 27x2.0 |
na |
| KD3/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 3/4 A |
na |
| KD3/871 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 3/8 A |
na |
| KDS10VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 10x1.0 / G 1/8 A |
na |
| KDS10X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 10x1.0 / G 1/8 A |
na |
| KDS12VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 12x1.5 |
na |
| KDS12X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 12x1.5 |
na |
| KDS14VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 14x1.5 / G 1/4 A |
na |
| KDS14X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 14x1.5 / G 1/4 A |
na |
| KDS16VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 16x1.5 / G 3/8 A |
na |
| KDS16X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 16x1.5 / G 3/8 A |
na |
| KDS18VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 18x1.5 |
na |
| KDS18X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 18x1.5 |
na |
| KDS22VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 22x1.5 / G 1/2 A |
na |
| KDS22X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 22x1.5 / G 1/2 A |
na |
| KDS26VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 26x1.5 |
na |
| KDS26X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 26x1.5 |
na |
| KDS27VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 27x2.0 / G 3/4 A |
na |
| KDS27X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 27x2.0 / G 3/4 A |
na |
| KDS33VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 33x2.0 / G 1 A |
na |
| KDS33X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 33x2.0 / G 1 A |
na |
| KDS42VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 42x2.0 / G 1 1/4 A |
na |
| KDS42X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 42x2.0 / G 1 1/4 A |
na |
| KDS48VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 48x2.0 / G 1 1/2 A |
na |
| KDS48X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 48x2.0 / G 1 1/2 A |
na |
| OR10.5X1.5X |
Light/Heavy |
na |
na |
12 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR10.77X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/4 A |
na |
| OR10.77X2.62X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/4 A |
na |
| OR10X1.5VITX |
Light/Heavy |
na |
na |
12 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR10X1.5X |
LM/SM |
na |
na |
08L/06S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR11.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 14x1.5 |
na |
| OR11.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 14x1.5 |
na |
| OR11.89X1.98 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
9/16-18 UNF |
na |
| OR11.89X1.98VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
9/16-18 UNF |
na |
| OR12.5X1.5VITX |
LM/LR / SM/SR |
na |
na |
06L/08L/10L/06S/08S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR12.5X1.5X |
LM/LR / SM/SR |
na |
na |
08L/10L/06S/08S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR12.5X2X |
Light |
na |
na |
15 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR12X2VITX |
Light/Heavy |
na |
na |
15 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR12X2X |
Heavy |
na |
na |
14 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR13.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 16x1.5 |
na |
| OR13.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 16x1.5 |
na |
| OR13.94X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 3/8 A |
na |
| OR13.94X2.62X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 3/8 A |
na |
| OR13X2VITX |
Heavy |
na |
na |
16 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR14X2 |
Heavy |
na |
na |
16 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR15.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 18x1.5 |
na |
| OR15.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 18x1.5 |
na |
| OR15X1.5X |
LR/LM / SR |
na |
na |
12L/10S/12S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR15X2VITX |
Light |
na |
na |
18 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR16.36X2.21 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
3/4-16 UNF |
na |
| OR16.36X2.21VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
3/4-16 UNF |
na |
| OR16.3X2.4VITX |
Heavy |
na |
na |
20 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR16X1.5VITX |
LM/LR / SM/SR |
na |
na |
12L/10S/12S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR16X1.5X |
LM/LR / SM/SR |
na |
na |
12L/15L/10S/12S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR16X2X |
Light |
na |
na |
18 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR17.96X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/2 A |
na |
| OR17X2.5 |
Heavy |
na |
na |
20 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR18X1.5VITX |
LM / SM |
na |
na |
15L/12S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR18X1.5X |
LM / SM |
na |
na |
15L/12S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR18X3.15X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/2 A |
na |
| OR19.18X2.46 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
7/8-14 UNF |
na |
| OR19.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 22x1.5 |
na |
| OR19.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 22x1.5 |
na |
| OR19X1.5X |
LR / SR |
na |
na |
15L/14S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR19X2.5VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
7/8-14 UNF |
na |
| OR20.3X2.4VITX |
Heavy |
na |
na |
25 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR20X1.5VITX |
LR / SM/SR |
na |
na |
18L/14S/16S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR20X1.5X |
LM/LR / SM/SR |
na |
na |
18L/14S/16S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR20X2VITX |
Light |
na |
na |
22 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR20X2X |
Light |
na |
na |
22 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR22X2.5X |
Heavy |
na |
na |
25 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR23.47X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 3/4 A |
na |
| OR23.47X2.95 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 1/16-12 UN |
na |
| OR23.47X2.95VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 1/16-12 UN |
na |
| OR23.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 27x2.0 |
na |
| OR23.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 27x2.0 |
na |
| OR23X3X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 3/4 A |
na |
| OR25.12X1.78X |
LR/LM / SR/SM |
na |
na |
22L/20S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR25.3X2.4VITX |
Heavy |
na |
na |
30 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR25X2VITX |
LM/LR / SM/SR |
na |
na |
22L/20S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR25X2X |
LM/LR / SM/SR |
na |
na |
22L/20S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR26X2VITX |
Light |
na |
na |
28 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR26X2X |
Light |
na |
na |
28 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR27X2.5 |
Heavy |
na |
na |
30 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR29.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 33x2.0 |
na |
| OR29.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 33x2.0 |
na |
| OR29.74X2.95 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 5/16-12 UN |
na |
| OR29.74X2.95VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 5/16-12 UN |
na |
| OR29.74X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 A |
na |
| OR29.74X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 A |
na |
| OR32X2.5VITX |
Light |
na |
na |
35 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR32X2.5X |
Light |
na |
na |
35 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR33.3X2.4VITX |
Heavy |
na |
na |
38 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR33X2.5VITX |
LM/LR / SM/SR |
na |
na |
28L/25S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR33X2.5X |
LM/LR / SM/SR |
na |
na |
28L/25S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR35X2.5X |
Heavy |
na |
na |
38 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR37.46X3 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 5/8-12 UN |
na |
| OR37.46X3VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 5/8-12 UN |
na |
| OR37.69X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 1/4 A |
na |
| OR37.69X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 1/4 A |
na |
| OR38.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 42x2.0 |
na |
| OR38.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 42x2.0 |
na |
| OR38X2.5VITX |
Light |
na |
na |
42 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR39X2.5X |
Light |
na |
na |
42 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR4.5X1.5VITX |
Light/Heavy |
na |
na |
6 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR4.5X1.5X |
Light/Heavy |
na |
na |
6 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR41X2.5VITX |
LM/LR / SM/SR |
na |
na |
35L/30S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR41X2.5X |
LM/LR / SM/SR |
na |
na |
35L/30S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR43.69X3 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 7/8-12 UN |
na |
| OR43.69X3VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 7/8-12 UN |
na |
| OR44.04X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 1/2 A |
na |
| OR44.04X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 1/2 A |
na |
| OR44.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 48x2.0 |
na |
| OR44.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 48x2.0 |
na |
| OR46X3.0X |
LR/LM / SR/SM |
na |
na |
42L/38S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR46X3VITX |
LM/LR / SM/SR |
na |
na |
42L/38S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR46X3X |
LM/LR / SM/SR |
na |
na |
42L/38S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR6.1X1.6 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 08x1.0 |
na |
| OR6.1X1.6VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 08x1.0 |
na |
| OR6.5X1.5VITX |
Light/Heavy |
na |
na |
8 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR6.5X1.5X |
Light/Heavy |
na |
na |
8 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR8.1X1.6 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 10x1.0 |
na |
| OR8.1X1.6VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 10x1.0 |
na |
| OR8.5X1.5X |
Light/Heavy |
na |
na |
10 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR8.92X1.83 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
7/16-20 UNF |
na |
| OR8.92X1.83VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
7/16-20 UNF |
na |
| OR8X1.5VITX |
Light/Heavy |
na |
na |
10 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR8X1.88VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/8 A |
na |
| OR8X1.88X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/8 A |
na |
| OR9.3X1.5VITX |
LM/LR |
na |
na |
06L |
O-ring for banjo fittings |
FKM |
na |
na |
| OR9.3X1.5X |
LM/LR |
na |
na |
06L |
O-ring for banjo fittings |
NBR |
na |
na |
| OR9.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 12x1.5 |
na |
| OR9.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 12x1.5 |
na |
| OR9X1.2X |
LLR/LLM / LR/LM |
na |
na |
04LL/06LL/08LL/06L |
O-ring for banjo elbows |
NBR |
na |
na |
| RRS1/2CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/2 A |
na |
| RRS1/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/4 A |
na |
| RRS1/8CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/8 A |
na |
| RRS11/2CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 1/2 A |
na |
| RRS11/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 1/4 A |
na |
| RRS1CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 A |
na |
| RRS3/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 3/4 A |
na |
| RRS3/8CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 3/8 A |
na |
| VH0471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
4 |
| VH04CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
4 |
| VH0571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
5 |
| VH05CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
5 |
| VH06.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
6.5 |
| VH06.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
6.5 |
| VH0671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
6 |
| VH06CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
6 |
| VH0771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
7 |
| VH07CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
7 |
| VH0871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
8 |
| VH08CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
8 |
| VH0971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
9 |
| VH09CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
9 |
| VH10.0571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10.05 |
| VH10.05CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10.05 |
| VH10.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10.5 |
| VH10.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10.5 |
| VH1071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10 |
| VH10CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10 |
| VH1171X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
11 |
| VH11CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
11 |
| VH12.9571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
12.95 |
| VH12.95CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
12.95 |
| VH1271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
12 |
| VH12CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
12 |
| VH1371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
13 |
| VH13CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
13 |
| VH1471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
14 |
| VH14CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
14 |
| VH1571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
15 |
| VH15CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
15 |
| VH16.0071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
16 |
| VH16.00CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
16 |
| VH1671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
16.2 |
| VH16CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
16.2 |
| VH1771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
17 |
| VH17CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
17 |
| VH1871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
18 |
| VH18CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
18 |
| VH19.9071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
19.9 |
| VH19.90CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
19.9 |
| VH1971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
19 |
| VH19CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
19 |
| VH2071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
20 |
| VH20CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
20 |
| VH2171X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
21 |
| VH21CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
21 |
| VH2271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
22 |
| VH22CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
22 |
| VH2371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
23 |
| VH23CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
23 |
| VH24.9071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
24.9 |
| VH24.90CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
24.9 |
| VH2471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
24 |
| VH24CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
24 |
| VH2571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
25 |
| VH25CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
25 |
| VH2671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
26 |
| VH26CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
26 |
| VH2771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
27 |
| VH27CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
27 |
| VH3071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
30 |
| VH30CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
30 |
| VH32.1071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
32.1 |
| VH32.10CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
32.1 |
| VH3271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
32 |
| VH32CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
32 |
| VH3371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
33 |
| VH33CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
33 |
| VH3471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
34 |
| VH34CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
34 |
| VH37.871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
37.8 |
| VH37.8CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
37.8 |
| VH3871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
38 |
| VH38CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
38 |
| VH3971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
39 |
| VH39CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
39 |
| VH4.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
4.5 |
| VH4.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
4.5 |
