Parker Fittings接头
Hose Fittings

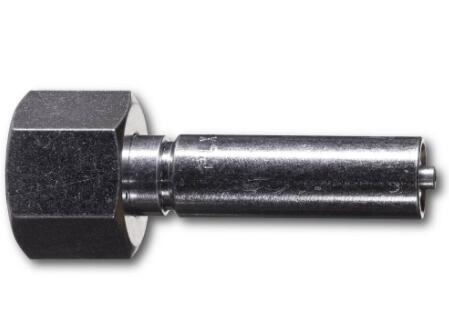

Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series

Parker High Pressure LX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure from 90 up to 400 MPa.

Parker Polyflex High Pressure LX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.

Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series

Markets:
- Construction machinery
- Industrial
- Oil & Gas

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Ultra-high pressure service for construction and shipbuilding industry
- Industrial cleaning
- Media transfer (petroleum, synthetic hydaulic fluids, gas and chemical fluids)
- Suitable for hydraulic pre-tensioning equipment, test rigs, offshore oil applications
- Suitable for hose types with working pressure from 90 up to 400 MPa (13.050 up to 58.000 psi)

Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series型号

Part	Connection Thread Size (inch)	Length (mm)	Length (inch)	Shape	Style	Material	Hose I.D. (DN)	Hose I.D. (inch)	Thread Type	Maximum Working Pressure (psi)	Hose I.D. (size)	Maximum Working Pressure (MPa)	Hose I.D. (mm)	Connection Thread Size (mm)	Fitting Type
101LX-12-12	3/4	124	4.9	Straight	National Pipe Tapered (NPT) male	Special materials	20	3/4	NPT	10000	-12	69	19	NA	1
101LX-16-16	1	125	4.9	Straight	National Pipe Tapered (NPT) male	Special materials	25	1	NPT	10000	-16	69	25.4	NA	1
101LX-4-03	1/4	75	3	Straight	National Pipe Tapered (NPT) male	Special materials	5	3/16	NPT	15000	-3	103.4	4.8	NA	1
101LX-4-04	1/4	80	3.1	Straight	National Pipe Tapered (NPT) male	Special materials	6	1/4	NPT	15000	-4	103.4	6.4	NA	1
101LX-4-04C	1/4	80	3.1	Straight	National Pipe Tapered (NPT) male	Stainless Steel	6	1/4	NPT	15000	-4	103.4	6.4	NA	1
101LX-6-04	3/8	80	3.1	Straight	National Pipe Tapered (NPT) male	Special materials	6	1/4	NPT	15000	-4	103.4	6.4	NA	1
101LX-6-05	3/8	75	3	Straight	National Pipe Tapered (NPT) male	Special materials	8	5/16	NPT	15000	-5	103.4	7.9	NA	1
101LX-6-06	3/8	76	3	Straight	National Pipe Tapered (NPT) male	Special materials	10	3/8	NPT	15000	-6	103.4	9.5	NA	1
101LX-8-06	1/2	81	3.2	Straight	National Pipe Tapered (NPT) male	Special materials	10	3/8	NPT	15000	-6	103.4	9.5	NA	1
101LX-8-06C	1/2	81	3.2	Straight	National Pipe Tapered (NPT) male	Stainless Steel	10	3/8	NPT	15000	-6	103.4	9.5	NA	1
101LX-8-08	1/2	91	3.6	Straight	National Pipe Tapered (NPT) male	Special materials	12	1/2	NPT	15000	-8	103.4	12.7	NA	1
101LX-8-08C	1/2	91	3.6	Straight	National Pipe Tapered (NPT) male	Stainless Steel	12	1/2	NPT	15000	-8	103.4	12.7	NA	1
106LX-12-12C4462	1 1/16 - 12	95	3.7	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	5000	NA	34.5	NA	NA	6
106LX-16-12C4462	1 5/16 - 12	99	3.9	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-16-16C4462	1 5/16 - 12	77	3	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	5000	NA	34.5	NA	NA	6
106LX-6-04C	9/16 - 18	66	2.6	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	15000	NA	103.5	NA	NA	6
106LX-6-05C	9/16 - 18	66	2.6	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-6-06C	9/16 - 18	62	2.4	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-6-06C-M-Subsea	9/16 - 18	87	3.4	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-8-06C	3/4 - 16	66	2.6	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	12500	NA	86.5	NA	NA	6
106LX-8-06C-M-Subsea	3/4 - 16	87	3.4	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-8-08C	3/4 - 16	94	3.7	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
106LX-8-08C-M-Subsea	3/4 - 16	100	3.9	Straight	JIC female swivel fitting	Stainless Steel	NA	NA	UNF	10000	NA	69	NA	NA	6
18KLX-49-48-API17DSV-10K	NA	455	17.9	Straight	API fl ange, swivel	Stainless Steel	NA	NA	NA	10000	NA	69	NA	NA	8K
18KLX-65-48-API17DSV-10K	NA	482	19	Straight	API fl ange, swivel	Stainless Steel	NA	NA	NA	10000	NA	69	NA	NA	8K
192LX-12-08C	3/4	85	3.3	Straight	BSP female swivel (60° cone)	Stainless Steel	12	1/2	BSP	18.85	-8	130	12.7	NA	92
192LX-16-12	1	77	3	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	20	3/4	BSP	14500	-12	100	19	NA	92
192LX-16-12C4462	1	77	3	Straight	BSP female swivel (60° cone)	Stainless Steel	20	3/4	BSP	14500	-12	100	19	NA	92
192LX-20-16	1/4	78	3.1	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	25	1	BSP	13050	-16	90	25.4	NA	92
192LX-4-03	1/4	64	2.5	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	5	3/16	BSP	26100	-3	180	4.8	NA	92
192LX-4-03C	1/4	64	2.5	Straight	BSP female swivel (60° cone)	Stainless Steel	5	3/16	BSP	26100	-3	180	4.8	NA	92
192LX-6-05	3/8	69	2.7	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	8	5/16	BSP	21750	-5	150	7.9	NA	92
192LX-6-05C	3/8	69	2.7	Straight	BSP female swivel (60° cone)	Stainless Steel	8	5/16	BSP	21750	-5	150	7.9	NA	92
192LX-8-06	1/2	66	2.6	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	10	3/8	BSP	20300	-6	140	9.5	NA	92
192LX-8-06C	1/2	66	2.6	Straight	BSP female swivel (60° cone)	Stainless Steel	10	3/8	BSP	20300	-6	140	9.5	NA	92
192LX-8-08	1/2	75	3	Straight	BSP female swivel (60° cone)	High strength carbon steel, zinc plated	12	1/2	BSP	18850	-8	130	12.7	NA	92
192LX-8-08C	1/2	75	3	Straight	BSP female swivel (60° cone)	Stainless Steel	12	1/2	BSP	18850	-8	130	12.7	NA	92
1AYLX-11-08	1 - 12	80	3.1	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	12	1/2	UNF	18850	-8	130	12.7	NA	AY
1AYLX-11-08C	1 - 12	80	3.1	Straight	Type ?M? female swivel	Stainless Steel	12	1/2	UNF	18850	-8	130	12.7	NA	AY
1AYLX-16-12	1 5/16-12	82	3.2	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	20	3/4	UNF	14500	-12	100	19	NA	AY
1AYLX-6-025	9/16 - 18	64	2.5	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	4	5/32	UNF	31900	-25	220	4	NA	AY
1AYLX-6-03	9/16 - 18	66	2.6	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	5	3/16	UNF	26100	-3	180	4.8	NA	AY
1AYLX-6-03C	9/16 - 18	67	2.6	Straight	Type ?M? female swivel	Stainless Steel	5	3/16	UNF	26100	-3	180	4.8	NA	AY
1AYLX-6-04C	9/16 - 18	61	2.4	Straight	Type ?M? female swivel	Stainless Steel	6	1/4	UNF	23780	-4	164	6.4	NA	AY
1AYLX-8-05	3/4 - 16	74	2.9	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	8	5/16	UNF	21750	-5	150	7.9	NA	AY
1AYLX-8-05C	3/4 - 16	70	2.8	Straight	Type ?M? female swivel	Stainless Steel	8	5/16	UNF	21750	-5	150	7.9	NA	AY
1AYLX-8-06	3/4 - 16	70	2.8	Straight	Type ?M? female swivel	High strength carbon steel, zinc plated,	10	3/8	UNF	20300	-6	140	9.5	NA	AY
1AYLX-8-06C	3/4 - 16	70	2.8	Straight	Type ?M? female swivel	Stainless Steel	10	3/8	UNF	20300	-6	140	9.5	NA	AY
1C3LX-8-025	NA	63	2.5	Straight	Metric female swivel light series	High strength carbon steel, zinc plated	4	5/32	Metric	31900	-25	220	4	14x1,5	C3
1C3LX-8-03	NA	64	2.5	Straight	Metric female swivel light series	High strength carbon steel, zinc plated	5	3/16	Metric	26100	-3	180	4.8	14x1.5	C3
1C3LX-8-03C	NA	64	2.5	Straight	Metric female swivel light series	Stainless Steel	5	3/16	Metric	26100	-3	180	4.8	14x1.5	C3
1C3LX-8-04	NA	69	2.7	Straight	Metric female swivel light series	High strength carbon steel, zinc plated	6	1/4	Metric	23780	-4	164	6.4	14x1.5	C3
1C3LX-8-04C	NA	69	2.7	Straight	Metric female swivel light series	Stainless Steel	6	1/4	Metric	23780	-4	164	6.4	14x1.5	C3
1C6LX-12-05	NA	78	3.1	Straight	Metric female swivel heavy series	High strength carbon steel, zinc plated	8	5/16	Metric	21750	-5	150	7.9	20x1.5	C6
1C9LX-10-04	NA	76	3	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	6	1/4	Metric	23780	-4	164	6.4	18x1.5	C9
1C9LX-12-06	NA	76	3	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	10	3/8	Metric	20300	-6	140	9.5	20x1.5	C9
1C9LX-14-05	NA	84	3.3	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	8	5/16	Metric	21750	-5	150	7.9	22x1.5	C9
1C9LX-14-06	NA	76	3	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	10	3/8	Metric	20300	-6	140	9.5	22x1.5	C9
1C9LX-14-06C	NA	76	3	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	10	3/8	Metric	20300	-6	140	9.5	22x1.5	C9
1C9LX-16-03	NA	80	3.1	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	5	3/16	Metric	26100	-3	180	4.8	24x1.5	C9
1C9LX-16-05	NA	84	3.3	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	8	5/16	Metric	21750	-5	150	7.9	24x1.5	C9
1C9LX-16-05C	NA	84	3.3	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	8	5/16	Metric	21750	-5	150	7.9	24x1.5	C9
1C9LX-16-06	NA	80	3.1	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	10	3/8	Metric	20300	-6	140	9.5	24x1.5	C9
1C9LX-16-06C	NA	80	3.1	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	10	3/8	Metric	20300	-6	140	9.5	24x1.5	C9
1C9LX-16-08	NA	88	3.5	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	12	1/2	Metric	18850	-8	130	12.7	24x1.5	C9
1C9LX-16-08C	NA	88	3.5	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	12	1/2	Metric	18850	-8	130	12.7	24x1.5	C9
1C9LX-25-12	NA	92	3.6	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	20	3/4	Metric	14500	-12	100	19	36x2	C9
1C9LX-25-12C4462	NA	92	3.6	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	20	3/4	Metric	14500	-12	100	19	36x2	C9
1C9LX-30-16	NA	98	3.9	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	25	1	Metric	13050	-16	90	25.4	42x2	C9
1C9LX-30-16C4462	NA	102	4	Straight	Metric swivel with O-ring Heavy series	Stainless Steel	NA	NA	Metric	13050	NA	90	NA	42 x 2	C9
1C9LX-8-025	NA	67	2.6	Straight	Metric female swivel heavy series with O-ring	High strength carbon steel, zinc plated	4	5/32	Metric	31900	-25	220	4	16x1.5	C9
1D9LX-4-025	1/4	73	2.9	Straight	BSP male	High strength carbon steel, zinc plated	4	5/32	BSP	31900	-25	220	4	NA	D9
1D9LX-4-03	1/4	77	3	Straight	BSP male	High strength carbon steel, zinc plated	5	3/16	BSP	26100	-3	180	4.8	NA	D9
1D9LX-4-04	1/4	80	3.1	Straight	BSP male	High strength carbon steel, zinc plated	6	1/4	BSP	23780	-4	164	6.4	NA	D9
1D9LX-4-05	1/4	77	3	Straight	BSP male	High strength carbon steel, zinc plated	8	5/16	BSP	21750	-5	150	7.9	NA	D9
1D9LX-4-06	1/4	76	3	Straight	BSP male	High strength carbon steel, zinc plated	10	3/8	BSP	20300	-6	140	9.5	NA	D9
1HELX-48-48-FLAT	5 3/8 - 3 1/2	395	15.6	Straight	1502 Hammerlug union male	Stainless Steel	NA	NA	ACME	15000	NA	103.5	NA	NA	HE
1HNLX-48-48	5 3/8 - 3 1/2	405	15.9	Straight	1502 Hammerlug union female	Stainless Steel	NA	NA	ACME	15000	NA	103.5	NA	NA	HN
1MRLX-6-03	NA	92	3.6	Straight	Metric female swivel 59° cone	High strength carbon steel, zinc plated	5	3/16	Metric	26100	-3	180	4.8	12x1.5	MR
1MRLX-8-03	NA	66	2.6	Straight	Metric female swivel 59° cone	High strength carbon steel, zinc plated	5	3/16	Metric	26100	-3	180	4.8	14x1.5	MR
1Y2LX-12-08C	3/4 - 16	158	6.2	Straight	Medium pressure tube nipple	Stainless Steel	12	1/2	UNF - LH	20000	-8	137.9	12.7	NA	Y2
1Y2LX-12-12C4462	3/4 - 16	160	6.3	Straight	Medium pressure tube nipple	Stainless Steel	20	3/4	UNF - LH	20000	-12	137.9	19	NA	Y2
1Y2LX-16-16C4462	1 1/4 -	181	7.1	Straight	Medium pressure tube nipple	Stainless Steel	NA	NA	UNF - LH	20000	NA	138	NA	NA	Y2
1Y2LX-3-04C	3/8 - 24	109	4.3	Straight	Medium pressure tube nipple	Stainless Steel	6	1/4	UNF - LH	20000	-4	137.9	6.4	NA	Y2
1Y2LX-6-025	3/8 - 24	112	4.4	Straight	Medium pressure tube nipple	Special materials	4	5/32	UNF - LH	20000	-25	137.9	4	NA	Y2
1Y2LX-6-03	3/8 - 24	118	4.6	Straight	Medium pressure tube nipple	Special materials	5	3/16	UNF - LH	20000	-3	137.9	4.8	NA	Y2
1Y2LX-6-04	3/8 - 24	120	4.7	Straight	Medium pressure tube nipple	Special materials	6	1/4	UNF - LH	20000	-4	137.9	6.4	NA	Y2
1Y2LX-6-04MINC625	3/8 - 24	131.5	5.2	Straight	Medium pressure tube nipple	Stainless Steel	NA	NA	UNF - LH	20000	NA	138	NA	NA	Y2
1Y2LX-9-05	9/16 - 1	105	4.1	Straight	Medium pressure tube nipple	Special materials	8	5/16	UNF - LH	20000	-5	137.9	7.9	NA	Y2
1Y2LX-9-06C	9/16 - 1	137	5.4	Straight	Medium pressure tube nipple	Stainless Steel	10	3/8	UNF - LH	20000	-6	137.9	9.5	NA	Y2
1Y2LX-9-08	9/16 - 1	110	4.3	Straight	Medium pressure tube nipple	Special materials	12	1/2	UNF - LH	20000	-8	137.9	12.7	NA	Y2
1Y4LX-4-02	1/4 - 28	63	2.5	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	NA	NA	UNF - LH	30000	NA	207	NA	NA	Y4
1Y9LX-4-03	1/4	72	2.8	Straight	BSP male for USIT ring	High strength carbon steel, zinc plated	5	3/16	BSP	26100	-3	180	4.8	NA	Y9
1Y9LX-6-05	3/8	82	3.2	Straight	BSP male for USIT ring	High strength carbon steel, zinc plated	8	5/16	BSP	21750	-5	150	7.9	NA	Y9
1YALX-1-025	1/4 - 28	87	3.4	Straight	High pressure tube nipple UNF ? LH thread	Special materials	4	5/32	UNF - LH	31900	-25	220	4	NA	YA
1YALX-1-025C	1/4 - 28	87	3.4	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	4	5/32	UNF - LH	31900	-25	220	4	NA	YA
1YALX-1-03	1/4 - 28	92	3.6	Straight	High pressure tube nipple UNF ? LH thread	Special materials	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-1-03C	1/4 - 28	92	3.6	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-3-03	3/8 - 24	99	3.9	Straight	High pressure tube nipple UNF ? LH thread	Special materials	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-3-03C	3/8 - 24	99	3.9	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-3-04	3/8 - 24	102	4	Straight	High pressure tube nipple UNF ? LH thread	Special materials	6	1/4	UNF - LH	23780	-4	164	6.4	NA	YA
1YALX-3-05C	3/8 - 24	103	4.1	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	8	5/16	UNF - LH	21750	-5	150	7.9	NA	YA
1YALX-6-03	9/16 - 18	108	4.3	Straight	High pressure tube nipple UNF ? LH thread	Special materials	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-6-03C	9/16 - 18	108	4.3	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	5	3/16	UNF - LH	26100	-3	180	4.8	NA	YA
1YALX-6-04	9/16 - 18	112	4.4	Straight	High pressure tube nipple UNF ? LH thread	Special materials	6	1/4	UNF - LH	23780	-4	164	6.4	NA	YA
1YALX-6-05	9/16 - 18	110	4.3	Straight	High pressure tube nipple UNF ? LH thread	Special materials	8	5/16	UNF - LH	21750	-5	150	7.9	NA	YA
1YALX-6-05C	9/16 - 18	110	4.3	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	8	5/16	UNF - LH	21750	-5	150	7.9	NA	YA
692LX-16-16C	1/4	78	3.1	Straight	BSP female swivel (60° cone)	Stainless Steel	25	1	BSP	13050	-16	90	25.4	NA	92
6AYLX-6-2AC	9/16 - 18	64	2.5	Straight	Type ?M? female swivel	Stainless Steel	4	5/32	UNF	43645	-25	301	4	NA	AY
6C9LX-30-16C	NA	118	4.6	Straight	Metric female swivel heavy series with O-ring	Stainless Steel	25	1	Metric	13050	-16	90	25.4	42x2	C9
6Y4LX-4-2AC	1/4 - 28	75	3	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	4	5/32	UNF - LH	58000	-25	400	4	NA	Y4
6Y4LX-6-2AC	3/8 - 24	86	3.4	Straight	High pressure tube nipple UNF ? LH thread	Stainless Steel	4	5/32	UNF - LH	58000	-25	400	4	NA	Y4
6YHLX-4-2AC-PL*	1/4 - 28	58	2.3	Straight	UNF male nozzle nipple	Stainless Steel	4	5/32	UNF	40600	-25	280	4	NA	YH
6YHLX-4-2AC-PL-LH*	1/4 - 28	58	2.3	Straight	UNF male nozzle nipple	Stainless Steel	4	5/32	UNF - LH	40600	-25	280	4	NA	YH
6YHLX-4-3C-PL*	1/4 - 28	62	2.4	Straight	UNF male nozzle nipple	Stainless Steel	5	3/16	UNF	40600	-3	280	4.8	NA	YH
6YHLX-4-3C-PL-LH*	1/4 - 28	62	2.4	Straight	UNF male nozzle nipple	Stainless Steel	5	3/16	UNF - LH	40600	-3	280	4.8	NA	YH
6YHLX-6-4C-PL*	3/8 - 24	66	2.6	Straight	UNF male nozzle nipple	Stainless Steel	6	1/4	UNF	36250	-4	250	6.4	NA	YH
6YHLX-6-4C-PL-LH*	3/8 - 24	66	2.6	Straight	UNF male nozzle nipple	Stainless Steel	6	1/4	UNF - LH	36250	-4	250	6.4	NA	YH
