Parker派克电磁阀
Parker Skinner Solenoid Valves

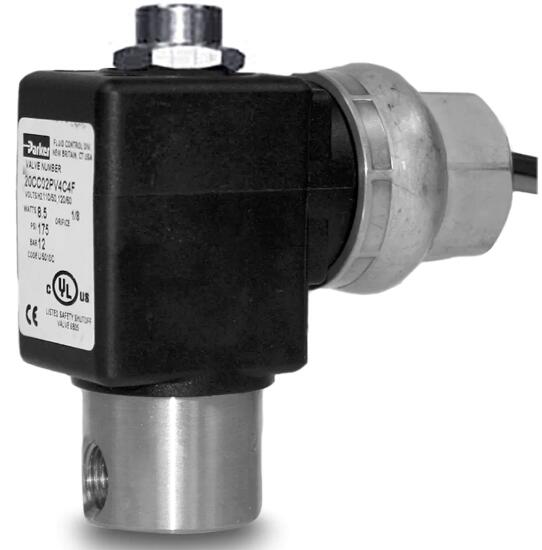

Parker 2-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/8" NPT Solenoid Valves provide operating pressures up to 375 PSI and flow factors up to .20 CV's. They have stainless bodies, multiple mounting positions and coil options for all general purpose flow control applications.





Parker's 2-Way Normally Open 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Parker 2-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves



Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment





Technical Specifications

Product Series: 204/304 Series
Valve Type: 2-Way
Function: Normally Open
Port Size: 1/8 inch
Input Voltage: Up to 240/60 (AC) or 24 (VDC)
Body Material: 303 Stainless
Seal Material: FKM
Orifice 1 Size: 1/32 to 3/32 inch
Flow Coefficient 1: .02 to .20 Cv
Power Consumption: 10 Watts (AC) or 8 Watts (DC) W
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X, Grommet Housing, 18" Leads, DIN Form A, Class H, Integrated, 18" Leads, Open Frame, 1/4" Tab or Open Frame, 18" Leads
Maximum Pressure Differential: 80 to 375 (AC) or 80 to 375 (DC) psi
Number of Ports: 2
Actuation Type: Direct Acting
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 32 °F
Maximum Fluid Temperature: 240 °F
Coil Specifications Met: Class F or Class H



Parker 2-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves型号

Part Voltage (V) Orifice 1 Size (inch) Flow Factor 1 (Cv) Power (Watts) Coil Type Maximum Pressure Differential (psi)
20CF02AV4B2A 12 VDC 1/32 0.02 8 Watt (DC) Grommet Housing, 18" Leads 375 psi (DC)
20CF02AV4B2B 24 VDC 1/32 0.02 8 Watt (DC) Grommet Housing, 18" Leads 375 psi (DC)
20CF02AV4B2F 110/50-120/60 1/32 0.02 10 Watt (AC) Grommet Housing, 18" Leads 375 psi (AC)
20CF02AV4B4B 24 VDC 1/32 0.02 8 Watt (DC) Integrated, 18" Leads 375 psi (DC)
20CF02AV4B4E 24/60 1/32 0.02 10 Watt (AC) Integrated, 18" Leads 375 psi (AC)
20CF02AV4B4F 110/50-120/60 1/32 0.02 10 Watt (AC) Integrated, 18" Leads 375 psi (AC)
20CF02EV4B2A 12 VDC 3/64 0.06 8 Watt (DC) Grommet Housing, 18" Leads 230 psi (DC)
20CF02EV4B2B 24 VDC 3/64 0.06 8 Watt (DC) Grommet Housing, 18" Leads 230 psi (DC)
20CF02EV4B2E 24/60 3/64 0.06 10 Watt (AC) Grommet Housing, 18" Leads 230 psi (AC)
20CF02EV4B2F 110/50-120/60 3/64 0.06 10 Watt (AC) Grommet Housing, 18" Leads 230 psi (AC)
20CF02EV4B4A 12 VDC 3/64 0.06 8 Watt (DC) Integrated, 18" Leads 230 psi (DC)
20CF02EV4B4B 24 VDC 3/64 0.06 8 Watt (DC) Integrated, 18" Leads 230 psi (DC)
20CF02EV4B4E 24/60 3/64 0.06 10 Watt (AC) Integrated, 18" Leads 230 psi (AC)
20CF02EV4B4F 110/50-120/60 3/64 0.06 10 Watt (AC) Integrated, 18" Leads 230 psi (AC)
20CF02EV4C4F 110/50-120/60 3/64 0.06 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 230 psi (AC)
20CF02EV4L2A 12 VDC 3/64 0.06 8 Watt (DC) Open Frame, 18" Leads 230 psi (DC)
20CF02EV4T2A 12 VDC 3/64 0.06 8 Watt (DC) Open Frame, 1/4" Tab 230 psi (DC)
20CF02EV4T2B 24 VDC 3/64 0.06 8 Watt (DC) Open Frame, 1/4" Tab 230 psi (DC)
20CF02GV4B4A 12 VDC 1/16 0.1 8 Watt (DC) Integrated, 18" Leads 150 psi (DC)
20CF02GV4B4B 24 VDC 1/16 0.1 8 Watt (DC) Integrated, 18" Leads 150 psi (DC)
20CF02GV4C4B 24 VDC 1/16 0.1 8 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (DC)
20CF02GV4L2A 12 VDC 1/16 0.1 8 Watt (DC) Open Frame, 18" Leads 150 psi (DC)
20CF02GV4T2F 110/50-120/60 1/16 0.1 10 Watt (AC) Open Frame, 1/4" Tab 150 psi (AC)
20CF02GV4T2G 220/50-240/60 1/16 0.1 10 Watt (AC) Open Frame, 1/4" Tab 150 psi (AC)
20CF02JV4B2B 24 VDC 5/64 0.13 8 Watt (DC) Grommet Housing, 18" Leads 105 psi (DC)
20CF02JV4B4B 24 VDC 5/64 0.13 8 Watt (DC) Integrated, 18" Leads 105 psi (DC)
20CF02JV4L2A 12 VDC 5/64 0.13 8 Watt (DC) Open Frame, 18" Leads 105 psi (DC)
20CF02LV4B2B 24 VDC 3/32 0.2 8 Watt (DC) Grommet Housing, 18" Leads 80 psi (DC)
20CF02LV4B2F 110/50-120/60 3/32 0.2 10 Watt (AC) Grommet Housing, 18" Leads 80 psi (AC)
20CF02LV4B4A 12 VDC 3/32 0.2 8 Watt (DC) Integrated, 18" Leads 80 psi (DC)
20CF02LV4B4E 24/60 3/32 0.2 10 Watt (AC) Integrated, 18" Leads 80 psi (AC)
20CF02LV4B4G 220/50-240/60 3/32 0.2 10 Watt (AC) Integrated, 18" Leads 80 psi (AC)
20CF02LV4C4F 110/50-120/60 3/32 0.2 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 80 psi (AC)
20CF02LV4D6B 24 VDC 3/32 0.2 8 Watt (DC) DIN Form A, Class H 80 psi (DC)
20CF02LV4D6F 110/50-120/60 3/32 0.2 10 Watt (AC) DIN Form A, Class H 80 psi (AC)
20CF02LV4L2A 12 VDC 3/32 0.2 8 Watt (DC) Open Frame, 18" Leads 80 psi (DC)
20CF02LV4T2B 24 VDC 3/32 0.2 8 Watt (DC) Open Frame, 1/4" Tab 80 psi (DC)
20CF02LV4T2E 24/60 3/32 0.2 10 Watt (AC) Open Frame, 1/4" Tab 80 psi (AC)
