Parker Skinner Solenoid Valves

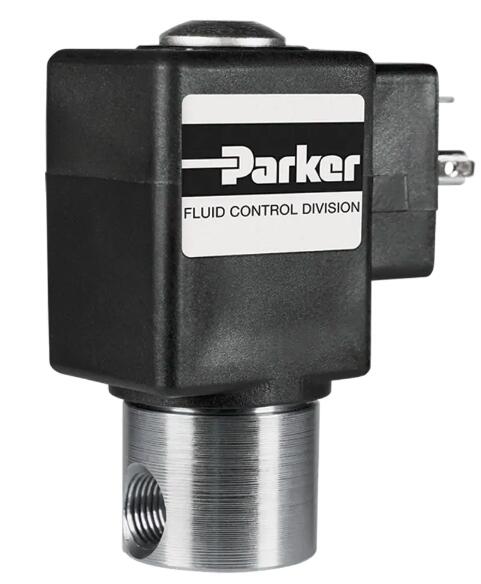

Parker 3-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves
Parker 3-Way Normally Open, 1/8" NPT Solenoid Valves provide operating pressures up to 375 psi and flow factors up to 0.20 CV's. They come in stainless with multiple mounting positions and coil options for all general purpose flow control applications.
Parker's 3-Way Normally Open, Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

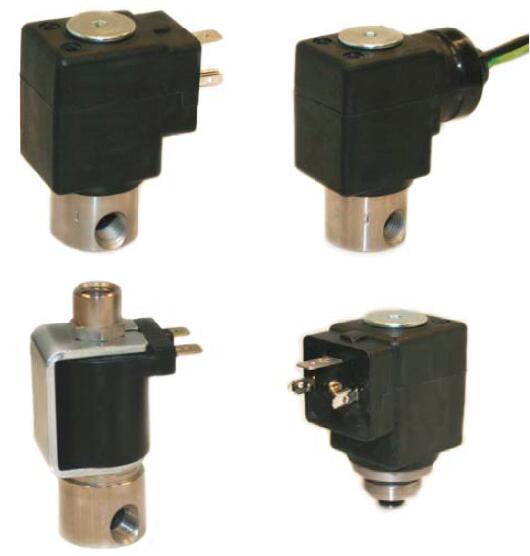

Parker 3-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Single acting spring return cylinder control
- Selection or diversion of process media
- HVAC damper control
- Instrumentation Equipment
- Pneumatic positioning
- Automatic dispensing equipment
- Gas sampling
- Small compressors
- Water treatment
- Air dryers
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Textile and Dry Cleaning Equipment
- Irrigation Equipment
Technical Specifications
| Product Series: |
204/304 Series |
| Valve Type: |
3-Way |
| Function: |
Normally Open |
| Port Size: |
1/8 inch |
| Input Voltage: |
24/60 to 110/50-120/60 (AC) or 12 to 24 (VDC) |
| Body Material: |
303 Stainless |
| Seal Material: |
FKM |
| Main Orifice Size: |
1/16 to 5/64 inch |
| Main Flow Coefficient: |
0.02 to 0.20 Cv |
| Power Consumption: |
10 Watt (AC) or 8 Watt (DC) W |
| Coil Type: |
1/2" Conduit, 18" Leads, DIN Form A, Integrated, 18" Leads, Metal Enc, 18" Leads, Open Frame, 1/4" Tab or Open Frame, 18" Leads |
| Maximum Pressure Differential: |
Up to 375 psi (AC or DC) psi |
| Additional Options: |
n/a |
| Number of Ports: |
3 |
| Actuation Type: |
Direct Acting |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Exhaust Orifice Size: |
n/a |
| Exhaust Flow Coefficient: |
n/a |
| Orifice 2 Size: |
1/16 to 5/64 inch |
| Flow Coefficient 2: |
0.02 to 0.19 Cv |
| Minimum Pressure Differential: |
0 psi |
| Minimum Fluid Temperature: |
32 °F |
| Maximum Fluid Temperature: |
240 °F |
| Coil Specifications Met: |
Class F or Class H |
Parker 3-Way Normally Open, 1/8" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Orifice Main (inch) |
Flow Factor Main (Cv) |
Power (Watts) |
Coil Type |
Maximum Pressure Differential (psi) |
| 30CF02AV4B4B |
24 VDC |
1/32 |
0.02 |
8 Watt (DC) |
Integrated, 18" Leads |
375 psi (DC) |
| 30CF02AV4B4F |
110/50-120/60 |
1/32 |
0.02 |
10 Watt (AC) |
Integrated, 18" Leads |
375 psi (AC) |
| 30CF02EV4B2A |
12 VDC |
3/64 |
0.05 |
8 Watt (DC) |
Metal Enc, 18" Leads |
230 psi (DC) |
| 30CF02EV4B2B |
24 VDC |
3/64 |
0.05 |
8 Watt (DC) |
Metal Enc, 18" Leads |
230 psi (DC) |
| 30CF02EV4B2E |
24/60 |
3/64 |
0.05 |
10 Watt (AC) |
Metal Enc, 18" Leads |
230 psi (AC) |
| 30CF02EV4B2F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
Metal Enc, 18" Leads |
230 psi (AC) |
| 30CF02EV4B4A |
12 VDC |
3/64 |
0.05 |
8 Watt (DC) |
Integrated, 18" Leads |
230 psi (DC) |
| 30CF02EV4B4B |
24 VDC |
3/64 |
0.05 |
8 Watt (DC) |
Integrated, 18" Leads |
230 psi (DC) |
| 30CF02EV4B4F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
Integrated, 18" Leads |
230 psi (AC) |
| 30CF02EV4C4B |
24 VDC |
3/64 |
0.05 |
8 Watt (DC) |
1/2" Conduit, 18" Leads |
230 psi (DC) |
| 30CF02EV4C4F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
1/2" Conduit, 18" Leads |
230 psi (AC) |
| 30CF02EV4D6A |
12 VDC |
3/64 |
0.05 |
8 Watt (DC) |
DIN Form A |
230 psi (DC) |
| 30CF02EV4D6B |
24 VDC |
3/64 |
0.05 |
8 Watt (DC) |
DIN Form A |
230 psi (DC) |
| 30CF02EV4D6E |
24/60 |
3/64 |
0.05 |
10 Watt (AC) |
DIN Form A |
230 psi (AC) |
| 30CF02EV4D6F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
DIN Form A |
230 psi (AC) |
| 30CF02EV4T2B |
24 VDC |
3/64 |
0.05 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
230 psi (DC) |
| 30CF02GV4B2A |
12 VDC |
1/16 |
0.1 |
8 Watt (DC) |
Metal Enc, 18" Leads |
150 psi (DC) |
| 30CF02GV4B2B |
24 VDC |
1/16 |
0.1 |
8 Watt (DC) |
Metal Enc, 18" Leads |
150 psi (DC) |
| 30CF02GV4B4B |
24 VDC |
1/16 |
0.1 |
8 Watt (DC) |
Integrated, 18" Leads |
150 psi (DC) |
| 30CF02GV4C4A |
12 VDC |
1/16 |
0.1 |
8 Watt (DC) |
1/2" Conduit, 18" Leads |
150 psi (DC) |
| 30CF02GV4D6B |
24 VDC |
1/16 |
0.1 |
8 Watt (DC) |
DIN Form A |
150 psi (DC) |
| 30CF02GV4T2A |
12 VDC |
1/16 |
0.1 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
150 psi (DC) |
| 30CF02JV4B2A |
12 VDC |
5/64 |
0.14 |
8 Watt (DC) |
Metal Enc, 18" Leads |
105 psi (DC) |
| 30CF02JV4B4E |
24/60 |
5/64 |
0.14 |
10 Watt (AC) |
Integrated, 18" Leads |
105 psi (AC) |
| 30CF02JV4B4G |
220/50-240/60 |
5/64 |
0.14 |
10 Watt (AC) |
Integrated, 18" Leads |
105 psi (AC) |
| 30CF02JV4C4F |
110/50-120/60 |
5/64 |
0.14 |
10 Watt (AC) |
1/2" Conduit, 18" Leads |
105 psi (AC) |
| 30CF02LV4B2B |
24 VDC |
3/32 |
0.2 |
8 Watt (DC) |
Metal Enc, 18" Leads |
80 psi (DC) |
| 30CF02LV4B2F |
110/50-120/60 |
3/32 |
0.2 |
10 Watt (AC) |
Metal Enc, 18" Leads |
80 psi (AC) |
| 30CF02LV4B2G |
220/50-240/60 |
3/32 |
0.2 |
10 Watt (AC) |
Metal Enc, 18" Leads |
80 psi (AC) |
| 30CF02LV4B4F |
110/50-120/60 |
3/32 |
0.2 |
10 Watt (AC) |
Integrated, 18" Leads |
80 psi (AC) |
| 30CF02LV4D6A |
12 VDC |
3/32 |
0.2 |
8 Watt (DC) |
DIN Form A |
80 psi (DC) |
| 30CF02LV4L2E |
24/60 |
3/32 |
0.2 |
10 Watt (AC) |
Open Frame, 18" Leads |
80 psi (AC) |
|
