Parker Skinner Solenoid Valves

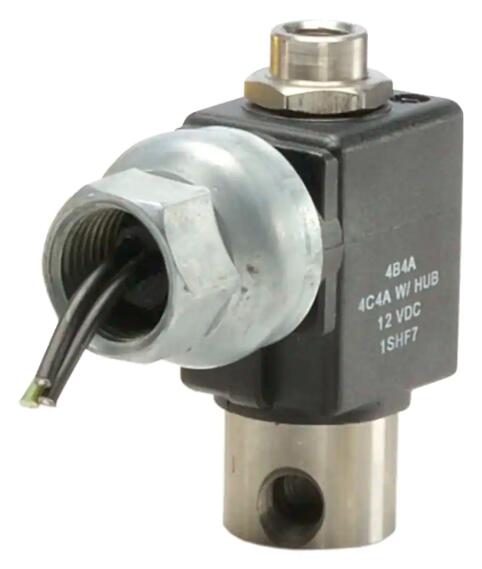

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves
Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.
Parker's 3-Way Universal Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Single acting spring return cylinder control
- Selection or diversion of process media
- HVAC damper control
- Instrumentation Equipment
- Pneumatic positioning
- Automatic dispensing equipment
- Gas sampling
- Small compressors
- Water treatment
- Air dryers
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Textile and Dry Cleaning Equipment
- Irrigation Equipment
Technical Specifications
| Product Series: |
204/304 Series |
| Valve Type: |
3-Way |
| Function: |
Universal |
| Port Size: |
1/8 inch |
| Input Voltage: |
110/50-120/60 to 220/50-240/60 (AC) or 12 to 24 (VDC) |
| Body Material: |
303 Stainless |
| Seal Material: |
FKM |
| Main Orifice Size: |
1/16 to 7/64 inch |
| Main Flow Coefficient: |
0.02 to 0.38 Cv |
| Power Consumption: |
10 Watt (AC) or 8 Watt (DC) W |
| Coil Type: |
1/2" Conduit, 18" Leads, DIN Form A, Integrated, 18" Leads, Metal Enc, 18" Leads, Open Frame, 1/4" Tab or Open Frame, 18" Leads |
| Maximum Pressure Differential: |
70 to 200 psi (AC) or 20 to 200 psi (DC) psi |
| Additional Options: |
n/a |
| Number of Ports: |
3 |
| Actuation Type: |
Direct Acting |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Exhaust Orifice Size: |
n/a |
| Exhaust Flow Coefficient: |
n/a |
| Orifice 2 Size: |
1/6 to 5/64 inch |
| Flow Coefficient 2: |
0.02 to 0.20 Cv |
| Minimum Pressure Differential: |
0 psi |
| Minimum Fluid Temperature: |
32 °F |
| Maximum Fluid Temperature: |
240° °F |
| Coil Specifications Met: |
Class F or H |
Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Orifice Main (inch) |
Flow Factor Main (Cv) |
Power (Watts) |
Coil Type |
Maximum Pressure Differential (psi) |
| 30CU02AV4B2B |
24 VDC |
1/32 |
0.02 |
8 Watt (DC) |
Metal Enc, 18" Leads |
200 psi (DC) |
| 30CU02AV4B2F |
110/50-120/60 |
1/32 |
0.02 |
10 Watt (AC) |
Metal Enc, 18" Leads |
200 psi (AC) |
| 30CU02AV4B2G |
220/50-240/60 |
1/32 |
0.02 |
10 Watt (AC) |
Metal Enc, 18" Leads |
200 psi (AC) |
| 30CU02AV4B4A |
12 VDC |
1/32 |
0.02 |
8 Watt (DC) |
Integrated, 18" Leads |
200 psi (DC) |
| 30CU02AV4B4B |
24 VDC |
1/32 |
0.02 |
8 Watt (DC) |
Integrated, 18" Leads |
200 psi (DC) |
| 30CU02AV4B4F |
110/50-120/60 |
1/32 |
0.02 |
10 Watt (AC) |
Integrated, 18" Leads |
200 psi (AC) |
| 30CU02AV4C4F |
110/50-120/60 |
1/32 |
0.02 |
10 Watt (AC) |
1/2" Conduit, 18" Leads |
200 psi (AC) |
| 30CU02AV4L2A |
110/50-120/60 |
1/32 |
0.02 |
8 Watt (DC) |
Open Frame, 18" Leads |
200 psi (DC) |
| 30CU02EV4B2A |
110/50-120/60 |
3/64 |
0.05 |
8 Watt (DC) |
Metal Enc, 18" Leads |
150 psi (DC) |
| 30CU02EV4B2F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
Metal Enc, 18" Leads |
150 psi (AC) |
| 30CU02EV4B4A |
110/50-120/60 |
3/64 |
0.05 |
8 Watt (DC) |
Integrated, 18" Leads |
150 psi (DC) |
| 30CU02EV4B4F |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
Integrated, 18" Leads |
150 psi (AC) |
| 30CU02EV4C4A |
110/50-120/60 |
3/64 |
0.05 |
8 Watt (DC) |
1/2" Conduit, 18" Leads |
150 psi (DC) |
| 30CU02EV4C4E |
110/50-120/60 |
3/64 |
0.05 |
10 Watt (AC) |
1/2" Conduit, 18" Leads |
150 psi (AC) |
| 30CU02EV4T2B |
110/50-120/60 |
3/64 |
0.05 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
150 psi (DC) |
| 30CU02GV4B2A |
110/50-120/60 |
1/16 |
0.09 |
8 Watt (DC) |
Metal Enc, 18" Leads |
100 psi (DC) |
| 30CU02GV4B2G |
110/50-120/60 |
1/16 |
0.09 |
10 Watt (AC) |
Metal Enc, 18" Leads |
100 psi (AC) |
| 30CU02GV4B4A |
110/50-120/60 |
1/16 |
0.09 |
8 Watt (DC) |
Integrated, 18" Leads |
100 psi (DC) |
| 30CU02GV4B4F |
110/50-120/60 |
1/16 |
0.09 |
10 Watt (AC) |
Integrated, 18" Leads |
100 psi (AC) |
| 30CU02GV4D6B |
110/50-120/60 |
1/16 |
0.09 |
8 Watt (DC) |
DIN Form A |
100 psi (DC) |
| 30CU02GV4D6F |
110/50-120/60 |
1/16 |
0.09 |
10 Watt (AC) |
DIN Form A |
100 psi (AC) |
| 30CU02GV4L2A |
110/50-120/60 |
1/16 |
0.09 |
8 Watt (DC) |
Open Frame, 18" Leads |
100 psi (DC) |
| 30CU02GV4T2A |
110/50-120/60 |
1/16 |
0.09 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
100 psi (DC) |
| 30CU02GV4T2E |
110/50-120/60 |
1/16 |
0.09 |
10 Watt (AC) |
Open Frame, 1/4" Tab |
100 psi (AC) |
| 30CU02JV4B2G |
110/50-120/60 |
5/64 |
0.15 |
10 Watt (AC) |
Metal Enc, 18" Leads |
70 psi (AC) |
| 30CU02JV4B4B |
110/50-120/60 |
5/64 |
0.15 |
8 Watt (DC) |
Integrated, 18" Leads |
70 psi (DC) |
| 30CU02JV4D6B |
110/50-120/60 |
5/64 |
0.15 |
8 Watt (DC) |
DIN Form A |
70 psi (DC) |
| 30CU02LV4B2G |
110/50-120/60 |
3/32 |
0.19 |
10 Watt (AC) |
Metal Enc, 18" Leads |
50 psi (AC) |
| 30CU02LV4B4A |
110/50-120/60 |
3/32 |
0.19 |
8 Watt (DC) |
Integrated, 18" Leads |
50 psi (DC) |
| 30CU02LV4B4G |
110/50-120/60 |
3/32 |
0.19 |
10 Watt (AC) |
Integrated, 18" Leads |
50 psi (AC) |
| 30CU02LV4C4F |
110/50-120/60 |
3/32 |
0.19 |
10 Watt (AC) |
1/2" Conduit, 18" Leads |
50 psi (AC) |
| 30CU02LV4D6B |
110/50-120/60 |
3/32 |
0.19 |
8 Watt (DC) |
DIN Form A |
50 psi (DC) |
| 30CU02LV4D6G |
110/50-120/60 |
3/32 |
0.19 |
10 Watt (AC) |
DIN Form A |
50 psi (AC) |
| 30CU02LV4L2B |
110/50-120/60 |
3/32 |
0.19 |
8 Watt (DC) |
Open Frame, 18" Leads |
50 psi (DC) |
| 30CU02LV4L2G |
110/50-120/60 |
3/32 |
0.19 |
10 Watt (AC) |
Open Frame, 18" Leads |
50 psi (AC) |
| 30CU02LV4T2A |
110/50-120/60 |
3/32 |
0.19 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
50 psi (DC) |
| 30CU02MV4B2A |
110/50-120/60 |
7/64 |
0.25 |
8 Watt (DC) |
Metal Enc, 18" Leads |
40 psi (DC) |
| 30CU02MV4D6B |
110/50-120/60 |
7/64 |
0.25 |
8 Watt (DC) |
DIN Form A |
40 psi (DC) |
| 30CU02MV4T2B |
110/50-120/60 |
7/64 |
0.25 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
40 psi (DC) |
| 30CU02PV4B2B |
110/50-120/60 |
1/8 |
0.32 |
8 Watt (DC) |
Metal Enc, 18" Leads |
30 psi (DC) |
| 30CU02PV4L2E |
110/50-120/60 |
1/8 |
0.32 |
10 Watt (AC) |
Open Frame, 18" Leads |
50 psi (AC) |
| 30CU02PV4T2E |
110/50-120/60 |
1/8 |
0.32 |
10 Watt (AC) |
Open Frame, 1/4" Tab |
50 psi (AC) |
| 30CU02QV4B2A |
110/50-120/60 |
5/32 |
0.38 |
8 Watt (DC) |
Metal Enc, 18" Leads |
20 psi (DC) |
| 30CU02QV4B2F |
110/50-120/60 |
5/32 |
0.38 |
10 Watt (AC) |
Metal Enc, 18" Leads |
50 psi (AC) |
| 30CU02QV4B2G |
220/50-240/60 |
5/32 |
0.38 |
10 Watt (AC) |
Metal Enc, 18" Leads |
50 psi (AC) |
| 30CU02QV4D6B |
24 VDC |
5/32 |
0.38 |
8 Watt (DC) |
DIN Form A |
20 psi (DC) |
| 30CU02QV4T2B |
24 VDC |
5/32 |
0.38 |
8 Watt (DC) |
Open Frame, 1/4" Tab |
20 psi (DC) |
|
