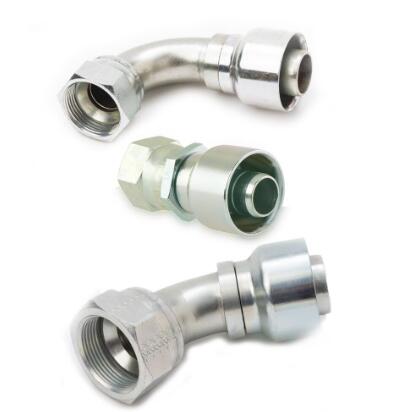

Permanent Fittings for 939/939B PTFE Hose – 93N Series
Parker's 93N Series fittings are used with 939/939B hoses from Parflex division.
Parker's 93N Series fittings are used with convoluted, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok? designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.
Permanent Fittings for 939/939B PTFE Hose – 93N Series
Markets:
- Industrial
- Air & Gas compressors
- Packaging machinery
- Printing and marking equipment
Features/Benefits:
- Lead-in design
- Parkalign dies
Applications:
- Chemical transfer lines
- General hydraulics
- Hose applications requiring tight routings
Technical Specifications
| Port Size: |
0.375 - 2.000 inch |
| Application: |
Various |
| Connection Type: |
Crimped, NPTF Pipe; 37° Flare; Seal-Lok |
| Hose Inside Diameter: |
10, 13, 16, 19, 25, 32, 38, 51 mm, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 2 inch |
| Connection Thread Size: |
Varies |
| Shape: |
Straight, 45°, 90° |
| Length: |
Varies |
| Materials of Construction: |
Steel, Stainless Steel |
| Product Style: |
Male, Female |
Permanent Fittings for 939/939B PTFE Hose – 93N Series 型号
| Part |
Port Connection (inch) |
Hose I.D. (inch) |
Shape |
Style |
| 10193N-12-12 |
0.75 |
0.625 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10193N-16-16 |
1 |
0.875 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10193N-20-20 |
1.25 |
1 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10193N-24-24 |
1.5 |
1.25 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10193N-32-32 |
2 |
1.875 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10193N-8-8 |
0.5 |
0.413 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 10693N-10-10 |
0.625 |
0.5 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-12-12 |
0.75 |
0.625 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-16-16 |
1 |
0.875 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-20-20 |
1.25 |
1 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-24-24 |
1.5 |
1.5 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-32-32 |
2 |
1.875 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-6-6 |
0.375 |
0.313 |
Straight |
Female JIC 37° - Swivel - Straight |
| 10693N-8-8 |
0.5 |
0.413 |
Straight |
Female JIC 37° - Swivel - Straight |
| 13793N-12-12 |
0.75 |
0.625 |
45° Elbow - Short Drop |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
| 13793N-16-16 |
1 |
0.875 |
45° Elbow - Short Drop |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
| 13793N-20-20 |
1.25 |
1 |
45° Elbow - Short Drop |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
| 13793N-24-24 |
1.5 |
1.375 |
45° Elbow - Short Drop |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
| 13993N-10-10 |
0.625 |
0.5 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 13993N-12-12 |
0.75 |
0.625 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 13993N-16-16 |
1 |
0.875 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 13993N-20-20 |
1.25 |
1 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 13993N-24-24 |
1.5 |
1.375 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 13993N-8-8 |
0.5 |
0.413 |
45° Elbow - Short Drop |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
| 1J793N-20-20 |
1.25 |
1 |
45° Elbow - Short Drop |
Female Seal-Lok - Swivel - Straight - Short |
| 1J993N-20-20 |
1.25 |
1 |
90° Elbow - Short Drop |
Female Seal-Lok - Swivel - Short |
| 1JC93N-12-12 |
0.75 |
0.625 |
Straight - Short |
Female Seal-Lok - Swivel - Straight - Short |
| 1JC93N-16-16 |
1 |
0.875 |
Straight - Short |
Female Seal-Lok - Swivel - Straight - Short |
| 1JC93N-20-20 |
1.25 |
1 |
Straight - Short |
Female Seal-Lok - Swivel - Straight - Short |
|
