Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

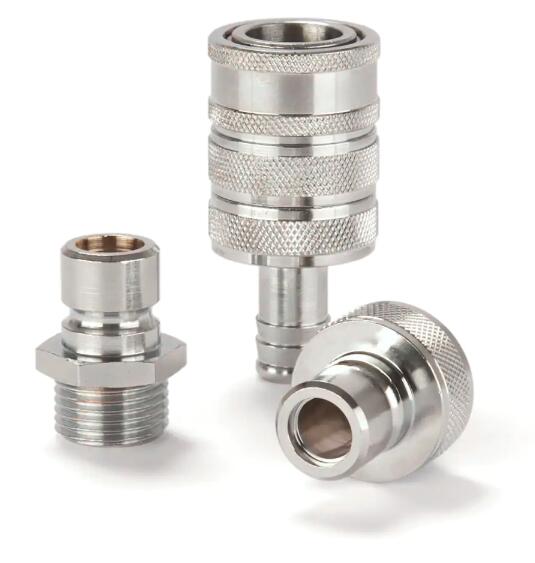

Quick Coupling with Parker own Profile, Series 42

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Straight-Through Coupling System with Parker own profile. Available made of brass.





Parker's Quick Coupling Series 42 is a corrosion resistant brass coupling without valve for applications with liquids in the pressure range up to 35 bar. Series 42 stands out for a high flow with minimal pressure drop.



Quick Coupling with Parker own Profile, Series 42



Markets:
- Machinery Construction

Features/Benefits:
- Corrosion resistant
- High flow with minimal pressure drop

Applications:
- High flow water applications



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 11 mm
Application: Pneumatic
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Rectus Profile
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: Poppet
Valve Included: No
Version: Straight-Through
Length: 31,5 to 49 mm
Hex Size: 24 to 32 mm
Outside Diameter: 15 to 32 mm
Materials of Construction: Brass
Seal Material: NBR
Flow Rate: 141 L/min



Quick Coupling with Parker own Profile, Series 42 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
42KFAW21MPC Coupling Male Thread - parallel 1/2 na
42KFAW26MPC Coupling Male Thread - parallel 3/4 na
42KFIW21MPC Coupling Female Thread - parallel 1/2 na
42KFIW26MPC Coupling Female Thread - parallel 3/4 na
42KFTF09MPC Coupling Hose Barb na 9
42KFTF13MPC Coupling Hose Barb na 13
42KFTF19MPC Coupling Hose Barb na 19
42SFAW21MXC Plug Male Thread - parallel 1/2 na
42SFAW26MXC Plug Male Thread - parallel 3/4 na
42SFIW21MXC Plug Female Thread - parallel 1/2 na
42SFIW26MXC Plug Female Thread - parallel 3/4 na
42SFTF09MXC Plug Hose Barb na 9
42SFTF13MXC Plug Hose Barb na 13
42SFTF19MXC Plug Hose Barb na 19
