丹佛斯动力系统 FD83系列全流量双联锁电子液冷快速接头 自锁球阀 快速断开快速接头
FD83系列全流量双自锁快速接头 EATON FD83快速接头 数据中心机房 机柜冷却管路 主管路 冷却液水流体输送
DANFOSS FD83 series full flow dual interlocking coupling



Eaton的FD83快速接头设计用于数据中心机房冷却管路及电子冷却应用,在这些应用中,全流量,流体兼容性和安全性至关重要。FD83具有专有的互锁功能,可防止泄漏并确保在关键环境中的大安全性。不锈钢,可根据要求提供其他材料类型。1英寸或更大尺寸的理想选择。Golden Mousetrap 2009 Winner优胜者Eaton Corp.的FD83快速接头适用于需要安全,简单,可靠,干式断开连接的高流量应用。这种类型的快速接头的典型应用包括计算机冷却和大量流体输送,但是它可以用多种基础材料制造,并带有可替换的密封件和端部端口,适用于各种流体和应用。FD83数据中心机房 机柜冷却管路 主管路Source lines冷却液水流体输送应用。

伊顿的 FD83 快速接头专为全流量、流体兼容性和安全性至关重要的电子冷却应用而设计。 FD83 具有专有的联锁功能,可防止溢出并确保关键环境中的 大安全性。 不锈钢,可根据要求提供其他材料类型。 适用于 1 英寸或更大的供应线。伊顿公司的 FD83 快速接头针对需要安全、简单、可靠、干式断开连接的高流量应用。 这种类型的快速接头的典型应用包括计算机冷却和大容量流体传输,但它可以用各种基础材料制造,具有用于各种流体和应用的交替密封和端部端口。Eaton's FD83 coupling is designed for electronics cooling applications where full flow, fluid compatibility and safety are essential. The FD83 features a proprietary interlock feature that prevents spills and ensure maximum safety in critical environments. Stainless steel, other material types available upon request. Ideal for 1 inch or greater supply lines.The FD83 coupling from Eaton Corp. targets high flow rate applications where a safe, simple, reliable, dry break connection is required. Typical applications for this type of coupling include computer cooling and bulk fluid transfer, but it can be manufactured in a variety of base materials with alternate seals and end ports for a wide range of fluids and applications.



伊顿EATON FD83快速接头,数据中心、服务器、液冷快换接头
Eaton FD83 Coupling fluid transfer and electronics cooling



与具有相同尺寸的典型干式快断快速接头相比,FD83快速接头提供了改进的流量特性,因为在流路中没有任何阀门组件会阻塞流量。它还消除了因将阀门卡在标准快速断开接头中而导致的严重泄漏的可能性。The FD83 coupling provides improved flow characteristics when compared to typical dry break quick disconnect couplings of equivalent size because there are no valve components in the flow path to obstruct flow. It also eliminates the potential for serious spills that can be caused by sticking valves in standard quick disconnect couplings.


FD83干式断续快速接头的独特之处在于具有Unisex设计。两半相同,因此无需担心系统组件的公/母连接关系,从而简化了操作和库存要求。阀门设计提供了直通,通畅的流路,以实现zui大流量和zui小压降。快速接头的两个互锁功能有助于消除溢出并确保zui大的安全性。在两个半快速接头配对之前,无法打开阀门;在两个阀都关闭之前,也不能断开半快速接头。360度旋转的能力允许阀门手柄定位并减少软管扭曲。The FD83 dry break couplings are unique in that they feature a Unisex design. The halves are identical so there is no concern for male/female connection relationship of system components, which simplifies operation and inventory requirements. The valve design provides a straight through, unobstructed, flow path for maximum flow and minimum pressure drop. The coupling's two interlock features help eliminate spills and ensure maximum safety. Valves can't be opened until two coupling halves are mated, and coupling halves can't be disconnected until both valves are closed. The ability to swivel 360 degree permits positioning of valve handles and reduces hose twist.



快速接头的其他主要特征包括:断开时的溢漏zui少,特殊的锁定销和杠杆手柄可以防止意外断开,而彩色保险杠则可以避免交叉连接。这个一英寸的快速接头还具有303不锈钢结构和EPDM O形圈密封,分别具有150和300 PSI的工作压力和爆破压力。Additional key features of the coupling include minimal spillage on disconnect, and a special locking pin and lever handle to prevent accidental disconnects, and color coded bumpers to avoid cross connections. The one-inch coupling also features 303 stainless steel construction and EPDM O-ring seals with 150 and 300 PSI operating and burst pressures respectively.

产品特征

- 当使用锁销设计和杠杆手柄断开时,双互锁安全防止接头意外打开
- 完全相同的接头两半
- 维修和服务简单,可靠的性能和zui少的泄漏
- 标准本体材料:304 不锈钢,具有广泛的流体相容性,根据要求可提供其它材料
- 标准密封材料:三元乙丙橡胶 ,根据要求可提供其它材料
- 全流量功能
- 工作温度范围:-54度~148度


用途和市场

- 电子器件液体冷却
- 热管理系统
- 工业流体输送

FD83-2052-16-16; 1 1 1-11-1/2 Female NPT
FD83-2052-12-16; 1 3/4 3/4-14 Female NPT
FD83-2046-16-16; 1 1 NA 1” Hose Barb
WQF8-12-N16FSR
WQF8-16-016FSR

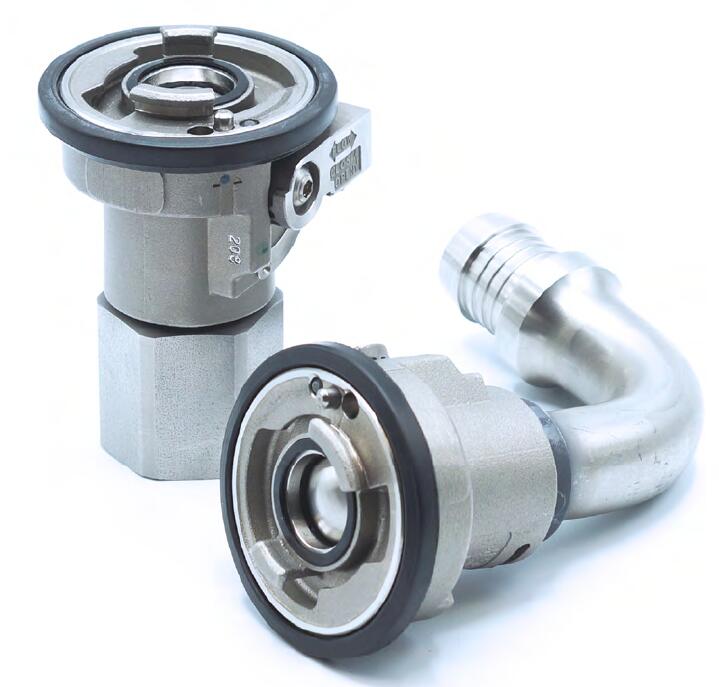

Danfoss Hansen FD83 coupling for fluid transfer and electronics cooling applications
Danfoss Hansen FD83 Series Coupling Thermal Management







Eaton FD83 Coupling Integral to Liquid Cooling System on New IBM Supercomputer
Danfoss Hansen FD83 coupling for fluid transfer and electronics cooling applications
Danfoss Hansen FD83 Series Coupling Thermal Managemen
t

Eaton's FD83 is designed for fluid transfer and electronics cooling applications where full flow,fluid compatibility and safety are essential. The FD83 identical halves include two interlock features to eliminate spills and ensure maximum safety. Valves cannot be opened until the coupling halves are mated and coupling halves cannot be disconnected until both halves are closed. The FD83 coupling system can be used in a wide variety of low pressure industrial applications.





Product Features

- Dual interlock safety feature eliminates accidental opening of coupling when disconnected with the use of a patented locking pin design and lever handle
- Design provides reliable performance and minimal spillage during maintenance or service
- Standard seal material: EPDM, additional material available on request
- Standard body material: 303 stainless steel, additional material available on request
- Full-flow capability
- Available colour coded bumper seals available
- Identical coupling halves
- Maintenance and service friendly
- 303 stainless steel material provides broad fluid compatibility
- 3/4” and 1” Female NPT port threads or hose barb



Physical Characteristics

Coupling Size Max. Operating Pressure Min. Burst Pressure
Connected Socket/Female
Half
Socket/Female
Half
Connected Socket/Female
Half
Socket/Female
Half

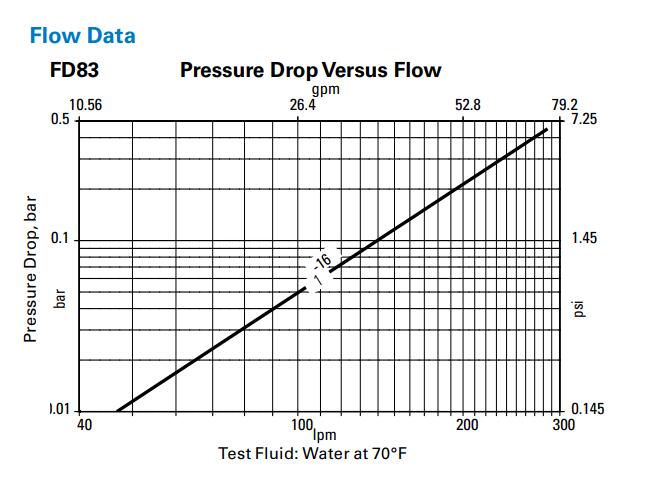

  Rated flow Fluid loss
(in) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (lpm) (gpm) cc. max
1 10 150 10 150 10 150 20 300 20 300 20 300 189 50 5.0



Dimensions

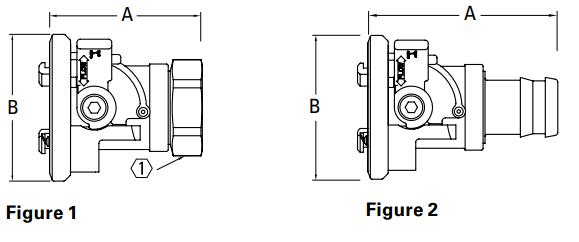

Part Number Body Size Port Size Thread Type Fig. A B HEX
FD83-2052-16-16 1 1 1-11- 1/2 Female NPT 1 95.5mm 71.6mm 41
FD83-2052-12-16 1 3/4 3/4-14 Female NPT 1 70.1mm 71.6mm 41
FD83-2046-16-16 1 1 NA 1” Hose Barb 2 84.2mm 71.6mm -

Hose barb adapters available upon request.



零件号 本体规格 端口规格 螺纹 类型 图形 A(mm) B(mm) 六方(mm)
WQF8-16-N16FSR 1 1 1X11.5 NPT 内螺纹 A 95 71.6 41
WQF8-12-N16FSR 1 3/4 3/4X14 NPT 内螺纹 A 70 71.6 41
WQF8-16-016FSR 1 1 - 1"HOSE B 84 71.6

订货型号

FD83-2052-16-16; 1 1 1-11-1/2 Female NPT
FD83-2052-12-16; 1 3/4 3/4-14 Female NPT
FD83-2046-16-16; 1 1 NA 1” Hose Barb 宝塔连接
WQF8-16-N16FSR
WQF8-12-N16FSR
WQF8-16-016FSR
FD83-2046-16-16
FD83-2052-16-16
FD83-2092-16-16
