丹佛斯汉森UQD系列低流阻无泄漏液冷快换接头
Danfoss Hansen Universal Quick Disconnect - UQD Series Couplings
丹佛斯汉森UQD专为热管理应用而设计，有4种尺寸可供选择，有2种颜色可供选择。它符合OCP（开放计算项目），并超过了指定性能特性的要求。丹佛斯UQD提供颜色识别（红色和蓝色），并保证100%氦气泄漏测试。Danfoss Hansen UQD is designed for thermal management applications, available in 4 sizes and has 2 color options. It complies with OCP (Open Compute Project) and exceeds requirements of specified performance characteristics. Danfoss UQD offers color identification (red and blue) and guarantees 100% helium-leak testing.
丹佛斯汉森UQD系列低流阻无泄漏快换接头
Danfoss Hansen Universal Quick Disconnect - UQD Series
Product Features
- 根据OCP（开放计算项目）UQD规范设计
- 一键连接设计
- 高流量且无泄漏
- 双重关闭-平面阀
- 超过OCP流量额定值至少25%，从而降低总能耗
- 标准材料：303、304不锈钢提供广泛的流体兼容性
- 标准密封材料：三元乙丙橡胶
- 彩色阳极氧化铝套管

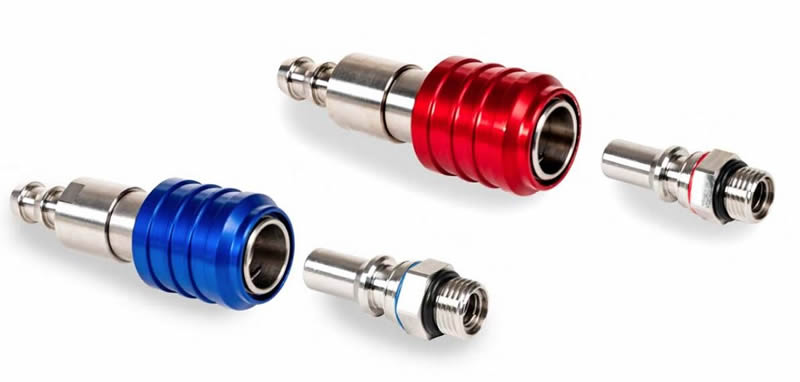

- 插座上的颜色编码（红色/蓝色）套筒和插头上的O形圈
- 广泛的终端选项：ORB、BSPP在插头上，推入式软管在插座上。可根据要求提供其他配置
- 工作温度-40°C至+150°C

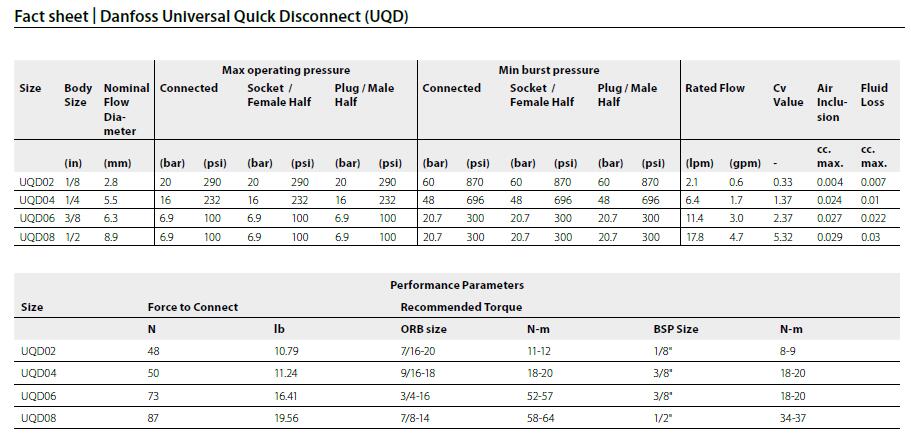

- 典型工作压力：6.9bar，对于较小尺寸，最高可达20bar
- Designed per OCP (Open Compute Project) UQD specification
- Push-to-connect design
- High flow and no spillage
- Double shut off - flat face valves
- Exceeds OCP flow ratings at least by 25% resulting in reduction in overall energy consumption
- Best in class force to connect
- Standard material: 303, 304 stainless steel provides broad fluid compatibility
- Standard seal material: EPDM
- Color anodized aluminum sleeves
- Color coded (red/blue) sleeves on socket and O-rings on plug
- Wide range of terminal end options: ORB, BSPP on plug and push on hose on socket. Additional configurations available upon request
- Operating temperature -40°C to +150°C
- Typical working pressure: 6.9 Bar, up to 20 bar for smaller sizes
液体冷却难题的解决方案 - 内部机架解决方案
丹佛斯的直接芯片冷却解决方案通过灵活、无扭结的软管和经过氦气测试的无泄漏联轴器的有效布线延伸到机架中。
Solutions to your liquid cooling challenges - Inner Rack Solutions
Danfoss' direct-to-chip cooling solutions extend into the racks through efficient routing of flexible, kink-free hoses, and leak free, helium-tested couplings.
丹佛斯拥有全面的优质流体输送产品组合，可满足您的热管理系统需求。
Danfoss has a comprehensive portfolio of premium fluid conveyance products to meet your thermal management system needs.
- Danfoss Power Solutions expands thermal management portfolio with new universal quick disconnect couplings for efficient data center liquid cooling
UQD couplings | Danfoss Universal Quick Disconnects (UQD)
Universal Quick Disconnects (UQD) is a global standard for quick disconnect couplings developed within the OCP (Open Compute Project).
UQD is an Intel initiative for an open standard spill-free quick couplings for liquid cooling in data centers.

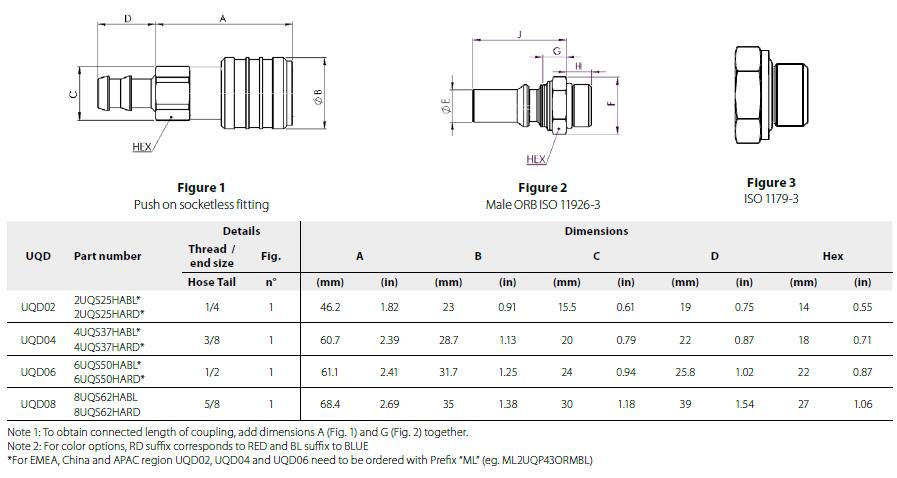

UQD标准中定义的软管连接为推锁式软管倒钩型。使用推锁式软管可实现快速、安全和无泄漏的连接，而无需使用套圈或软管夹。
软管倒钩设计为只需将软管推到倒钩上即可锁定软管。塑料止动环确保软管正确安装在软管倒钩上，以实现安全无泄漏的连接。

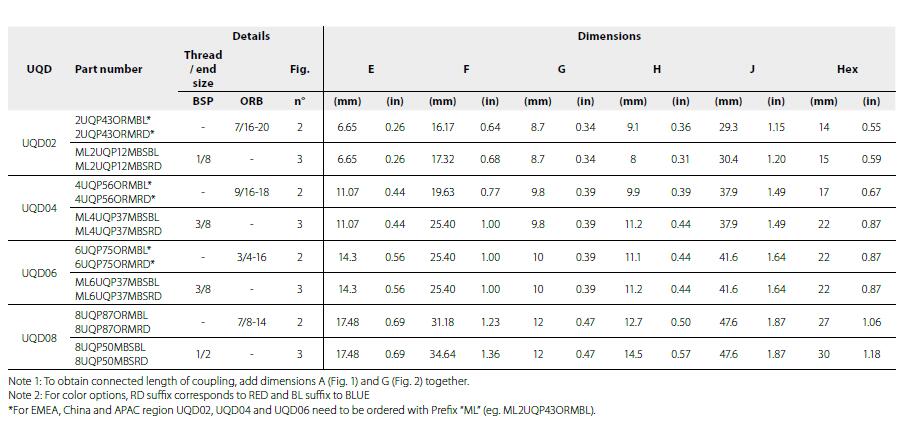

UQD02 Universal Quick Disconnects
UQD04 Universal Quick Disconnects
UQD02
2UQP43ORMBL*
2UQP43ORMRD*
ML2UQP12MBSBL
ML2UQP12MBSRD
UQD04
4UQP56ORMBL*
4UQP56ORMRD*
ML4UQP37MBSBL
ML4UQP37MBSRD
UQD06
6UQP75ORMBL*
6UQP75ORMRD*
ML6UQP37MBSBL
ML6UQP37MBSRD
UQD08
8UQP87ORMBL
8UQP87ORMRD
8UQP50MBSBL
8UQP50MBSRD

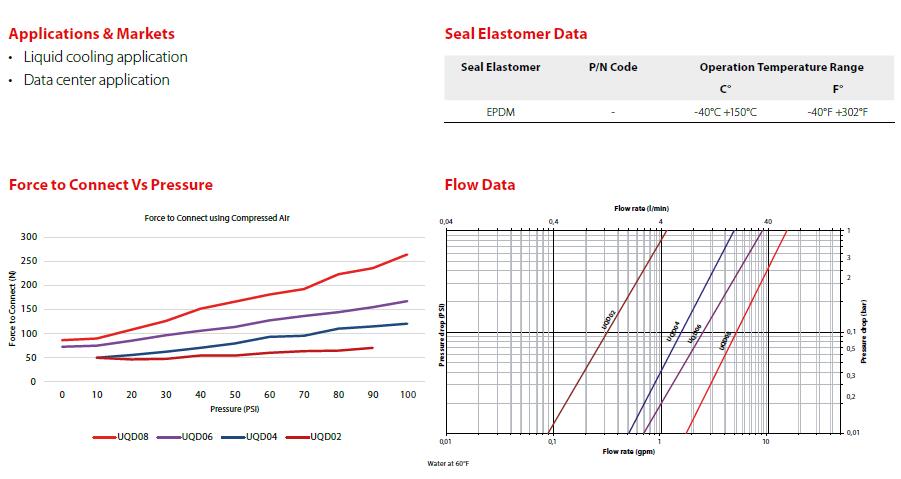

应用与市场
- 液体冷却应用
- 数据中心应用 数据中心、高性能计算 Data centres, HPC
- Liquid cooling application
- Data center application
|
