Electronic Data Devices Magnetic pickup
EDD Magnetic pickup传感器 EDD 4.303Magnetic pickup传感器

Electronic Data Devices Magnetic pickup磁传感器

EDD 4.303 Magnetic pickup

Electronic Data Devices的探杆的制造涵盖了广泛的计量应用,包括我们的仪表和大多数其他流行品牌的仪表。Electronic Data Devices' magnetic pickups are manufactured to cover a wide range of metering applications, including our meters and most others popular brands of meters.



EDD 4.303Magnetic pickup探杆 资料下载

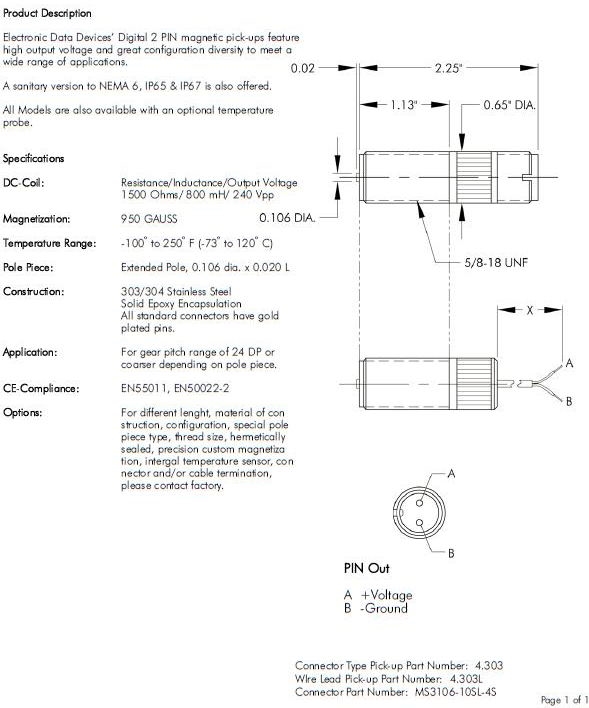

规格SPECIFICATIONS

DC Coil Resistance 1450 ohms Output Volts 2.5 Vpp(tuibine meters)
Inductance 800 mh Pole Piece Extended
Magnetization 900 Gauss Construction 303/304 S>S>solid epoxy
Temperature Range -150°to+250F Connection 2 pins gold plated
Overall leng 2.25″ Mating Connector MS 3106A-10SL-4S
Thread Size 5/8X 18 UNF Thread Length 1.13″
