EDD液体涡轮流量计
EDD 800 数字流量计

EDD-800 DIGITAL FLOW Meters

EDD-800数字流量计

EDD-800 DIGITAL TOTALIZER数字积算器

EDD-800数字流量计

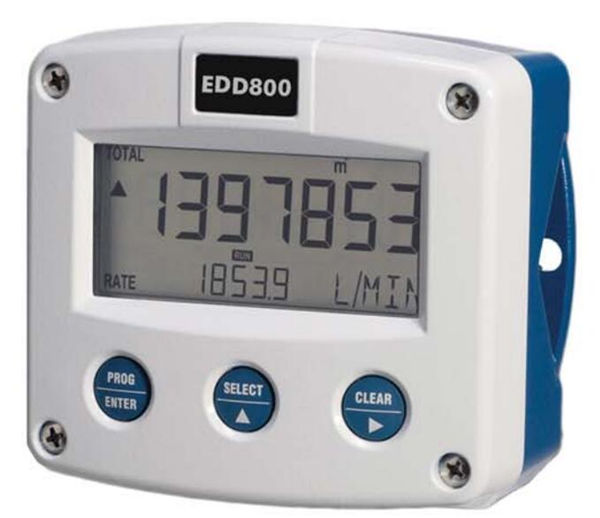

EDD800是一个独立的数字流量计,设计用于直接安装在涡轮流量计上或远程安装可选硬件。

总量和流量单位可以设置为任何行业标准单位,也可以为每个显示器设置为不同的单位。EDD800易于重置

将显示的总单位归零。该装置配有NEMA4或EXP外壳。本质安全,ATEX,IECEx,FM和CSA单元可用。

The EDD800 is a self contained digital totalizer designed to mount directly on the turbine flow meter or remotely mounted with optional hardware.
The totals and flow rate units can be set to any industry standard units or be set to different units for each display. The EDD800 is easily resettable
to zero out the total units displayed. The unit is available with a NEMA4 or EXP housing. Intrinsically safe, ATEX, IECEx, FM and CSA units are available.





EDD 800 流量计 资料下载









Power (1)3.6 V DC C-cell Lithium Battery
Display LCD 7 Digits Totals, 11 Digits Rate
Accuracy ±0.1%
Temperature Range -40 to 175 °F
Input Frequency 0-300 Hz
Battery Life 2-4 Years
Units customer Specified
Divisor Capability 1-9999999

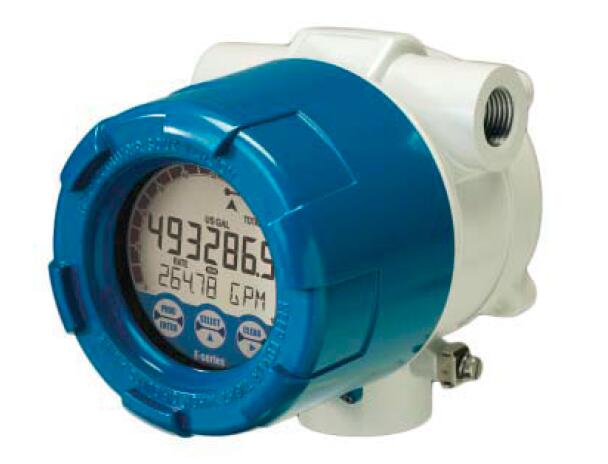

Housing NEMA4 or EXP
Options Pulse Out 4-20 MA or Hart







EDD Standard Threaded Turbine Flow Meters标准螺纹涡轮流量计





特征Features

  • Affordable
  • Repeatability is within +/-0.1% of indicated flow throughout linear range 在整个线性范围内,重复性在指示流量的±0.1%范围内
  • Linearity is within +/-1% of the k-factor throughout the linear range 在整个线性范围内,线性度在k系数的+/-1%范围内
  • Flow Meters are available in a variety of end connections. 流量计有多种端部连接



规格Specifications

Range of Operation
Size
Gal/Min
BBL/Min
BBL/Day
Pulses/Gal
Max. Pulses/Sec
3/8"
.3-3
.007-.07
10-100
22000
1100
1/2"
.75-7.5
.01-.17
25-250
14500
1815
3/4"
2-15
.05-.33
68-515
2950
740
7/8"
3-30
.07-.71
100-1000
2350
1175
1"
5-50
.11-1.19
170-1700
900
750
1.5"
15-180
.35-4.3
515-6000
325
975
2"
40-400
.9-9.3
1300-13000
55
365
3"
60-600
1.4-14.3
2100-21000
57
570
4"
100-1200
2.4-28.5
3400-41000
30
600
6"
200-2500
4.7-60
6800-86000
7
290
8"
350-3500
8.3-83
12000-120000
3
175
10"
550-5500
13-130
19000-180000
1.6
147



Material

Material
Flow Meter Body: 316 S.S. OR A-286 ALLOY
Sleeve Bearings: Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: CD4MCu
Support Vanes: 316 S.S.
Thrust Ball: Ceramic





Performance

Performance
Repeatability: Within +/-0.1% of indicated flow throughout the linear flow range
Linearity: Within +/-1% of the K-Factor throughout the linear flow range (Note: 3/8" +/-2%)
