Electronic Data Devices Magnetic pickup
EDD Magnetic pickup传感器 EDD 4.5015U Magnetic pickup 传感器
Electronic Data Devices Magnetic pickup磁传感器

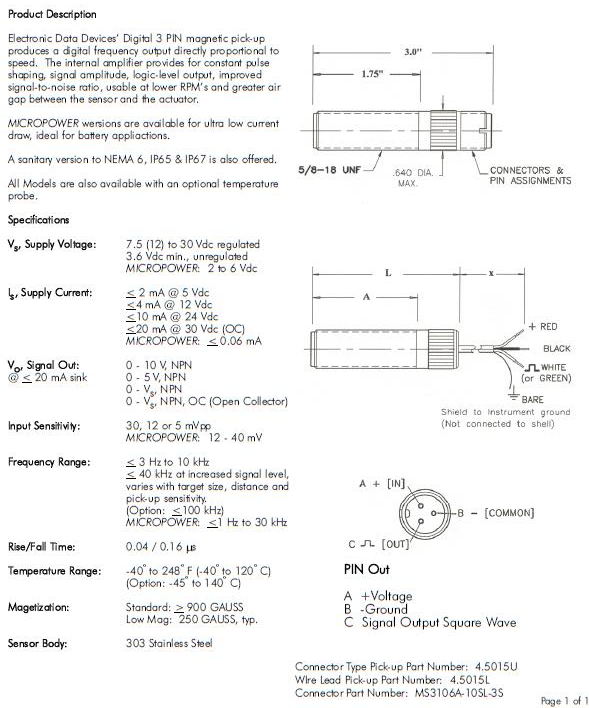

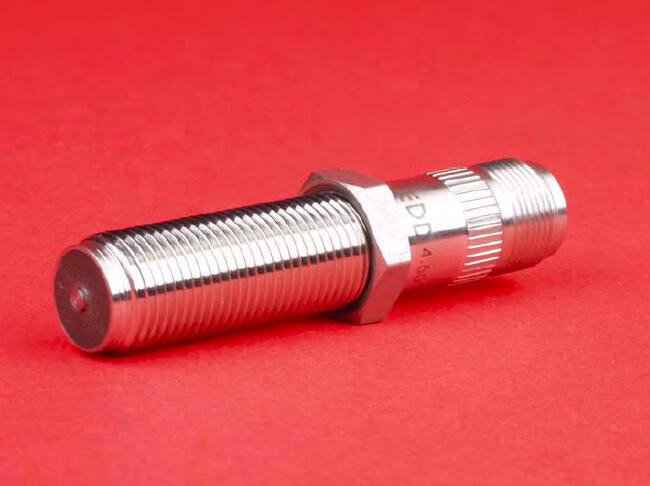

EDD 4.5015U Magnetic pickup
Electronic Data Devices的探杆的制造涵盖了广泛的计量应用，包括我们的仪表和大多数其他流行品牌的仪表。Electronic Data Devices' magnetic pickups are manufactured to cover a wide range of metering applications, including our meters and most others popular brands of meters.
规格SPECIFICATIONS
| Supply Voltage |
7.5 to 30 Vdc |
Signal Output |
0-10V |
| Frequency Range |
3-10 KHZ |
Pole Piece |
Extended |
| Magnetization |
900 Gauss |
Input Sensitivity |
30 mVpp |
| Temperature Range |
40°to+250F |
Connection |
3 pins gold plated |
| Overall leng |
3.0″ |
Mating Connector |
MS 3106A-10SL-3S |
| Thread Size |
5/8X 18 UNF |
Thread Length |
1.75″ |
|
