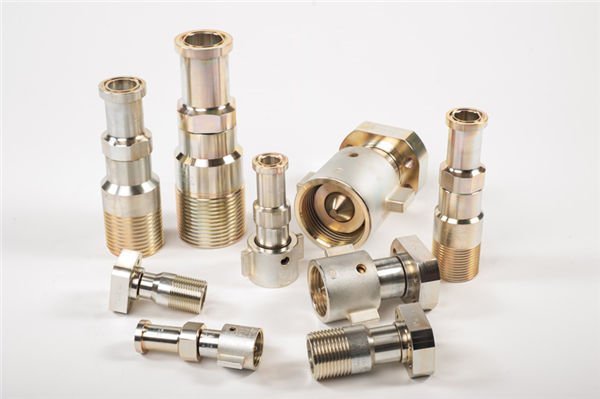

6TV - POPPET STYLE FLANGED PORT
6TV系列螺纹连接管接头为采矿、建筑、石油和其他自然资源部门常见的流体动力系统提供高流量和低能耗。世界级SAE J518代码61和代码62四螺栓法兰端端口在2000至6000 psi的压力下提供无泄漏解决方案。注意：不适用于气体流体形式6TV series thread to connect couplings provide for high flow and low energy loss in fluid power systems common to mining, construction, oil and other natural resource sectors. World class SAE J518 code 61 and code 62 four bolt flange end ports provide leak free solutions at pressures from 2,000 thru 6,000 psi. CAUTION: NOT FOR GAS FLUID FORM
操作极限：
最高6000磅/平方英寸（41.4兆帕）工作压力
全4:1安全系数-所有尺寸
真空至28“Hg（1.0巴）
温度范围-30°F至+250°F（-34°C至121°C）-标准丁腈橡胶密封
防护处理.黄色铬酸盐RoHS兼容表面镀锌
尺寸-3/4“至2 1/2”
Operating Limits:
Up to 6,000 psi (41.4 Mpa) operating pressure
Full 4:1 Safety Factor - all sizes
Vacuum to 28" Hg (1.0 bar)
Temperature range -30°F to +250°F (-34°C to 121°C) - Standard Buna Seals
Protective Treatment - Zinc Plating with Yellow Chromate RoHS Compliant Finish
Sizes - 3/4" thru 2 1/2"
设计特点
快速接头和接头作为单独的项目提供。它们还与额定压力为5000磅/平方英寸的5TV系列快速接头相匹配。
快速接头和螺纹接头端端口是四个螺栓法兰连接，符合SAE J518，代码61和代码62。法兰头或法兰孔。
弹性密封大大降低了端口泄漏的可能性。
高级钢结构提供了4:1的设计系数。
改进的提升阀导向器在更恶劣的条件下工作。
锤耳翼形螺母辅助在压力下组装快速接头。
可在快速接头螺母检查孔处目测整个组件。
平顶短梯形螺纹防止磨损，防止装配和储存损坏。
保护性处理是用黄色铬酸盐RoHS处理的锌镀层。

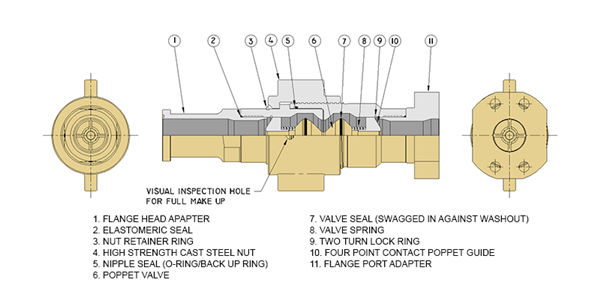

Design Features
Couplers and nipple are supplied as individual items. They also mate the 5TV series couplings rated at 5,000 psi.
Coupler and nipple end ports are four bolt flange connections to SAE J518, code 61 and code 62. Flange head or flange ports.
Elastomeric seal greatly reduces end port leakage potential.
High grade steel construction provides a 4:1 design factor.
Improved poppet guide performs under more severe conditions.
Hammer lug wing nut aides in assembly of coupling under pressure.
Full assembly can be visually verified at coupler nut inspection hole.
Flat crested stub-acme threads prevent galling and resist rig-up and storage damage.
Protective treatment is zinc plating with yellow chromate RoHS compliant finish.
 |
 |
Coupler - Female Half |
Nipple - Male Half |
警告！WARNING!
Hydraulics, Inc.5TV和6TV管接头不可与其他制造商生产的类似管接头互换。Hydraulics, Inc.声明的耦合性能是基于配合真正的液压系统，公司5TV和6TV阀门和螺纹连接快速接头和接头。Hydraulics, Inc. 5TV & 6TV couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. 5TV & 6TV valved and thread-to-connect couplings and nipples.
警告！WARNING!
要延长5TV和6TV管接头的功能服务，请仅使用原装液压系统，包括更换部件。To extend functional service of 5TV & 6TV couplings, use only genuine Hydraulics, Inc. replacement components.
COUPLINGS | 6TV - POPPET STYLE FLANGED PORT | COUPLER - FEMALE HALF

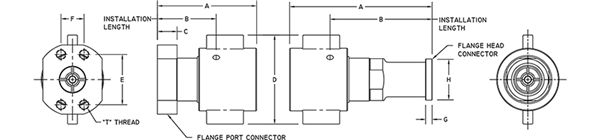

6TV COUPLER - FEMALE HALF
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
B |
C |
D |
E |
F |
G |
H |
T |
| 6TVC5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
5.73
145.5 mm |
4.48
113.8 mm |
|
3.00
76.2 mm |
|
|
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVHC5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
5.73
145.5 mm |
4.48113.8 mm |
|
2.00
50.8 mm |
|
|
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVC5-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 61 |
6.45
163.8 mm |
4.86
123.4 mm |
|
3.75
95.3 mm |
|
|
0.32
8.0 mm |
1.75
44.5 mm |
|
| 6TVC4-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 61 |
7.77
197.4 mm |
5.75
146.1 mm |
|
4.51
114.6 mm |
|
|
0.32
8.0 mm |
2.00
50.8 mm |
|
| 6TVC3-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 61 |
8.44214.4 mm |
6.14
156.0 mm |
|
4.75
120.7 mm |
|
|
0.32
8.0 mm |
2.38
60.5 mm |
|
| 6TVC3-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 61 |
9.59
243.6 mm |
6.52
165.6 mm |
|
6.75
171.5 mm |
|
|
0.38
9.5 mm |
2.81
71.4 mm |
|
| 6TVC25-FH40 |
FH - SAE J518 4-Bolt Flange Head |
-40 (2 1/2") |
Code 61 |
10.56
268.2 mm |
7.06
179.3 mm |
|
8.01
203.5 mm |
|
|
0.38
9.5 mm |
3.31
84.1 mm |
|
| 6TVC6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
5.98
151.9 mm |
4.73
120.1 mm |
|
3.00
76.2 mm |
|
|
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVHC6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
5.98
151.9 mm |
4.73
120.1 mm |
|
2.00
50.8 mm |
|
|
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVC6-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 62 |
7.01
178.1 mm |
5.42
137.7 mm |
|
3.75
95.3 mm |
|
|
0.38
9.5 mm |
1.88
47.6 mm |
|
| 6TVC6-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 62 |
8.33
211.6 mm |
6.31
160.3 mm |
|
4.51
114.6 mm |
|
|
0.41
10.3 mm |
2.13
54.0 mm |
|
| 6TVC6-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 62 |
8.88
225.6 mm |
6.58
167.1 mm |
|
4.75
120.7 mm |
|
|
0.50
12.7 mm |
2.50
63.5 mm |
|
| 6TVC6-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
10.82
274.8 mm |
7.75
196.9 mm |
|
6.75
171.5 mm |
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 640C6FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
11.62
295.1 mm |
8.13
206.5 mm |
|
8.01
203.5 mm |
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 6TVC5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.00
101.6 mm |
2.7569.9 mm |
0.8822.4 mm |
3.00
76.2 mm |
1.88
47.8 mm |
0.8822.4 mm |
|
|
3/8-16UNC-2B |
| 6TVHC5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.00
101.6 mm |
2.7569.9 mm |
0.8822.4 mm |
2.00
50.8 mm |
1.88
47.8 mm |
0.8822.4 mm |
|
|
3/8-16UNC-2B |
| 6TVC5-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 61 |
4.61
117.1 mm |
3.02
76.7 mm |
0.8822.4 mm |
3.75
95.3 mm |
2.06
52.3 mm |
1.0326.2 mm |
|
|
3/8-16UNC-2B |
| 6TVC4-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 61 |
5.68
144.3 mm |
3.66
93.0 mm |
1.0626.9 mm |
4.51
114.6 mm |
2.31
58.7 mm |
1.1930.2 mm |
|
|
7/16-14UNC-2B |
| 6TVC3-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 61 |
6.38
162.1 mm |
4.08
103.6 mm |
1.0626.9 mm |
4.75
120.7 mm |
2.7569.9 mm |
1.4135.8 mm |
|
|
1/2-13UNC-2B |
| 6TVC3-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 61 |
7.41
188.2 mm |
4.34
110.2 mm |
1.0626.9 mm |
6.75
171.5 mm |
3.06
77.7 mm |
1.6942.9 mm |
|
|
1/2-13UNC-2B |
| 6TVC25-FP40 |
FP - SAE J518 4-Bolt Flange Port |
-40 (2 1/2") |
Code 61 |
8.56
217.4 mm |
5.07128.8 mm |
1.6942.9 mm |
8.01
203.5 mm |
3.50
88.9 mm |
2.0050.8 mm |
|
|
1/2-13UNC-2B |
| 6TVC6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.13
104.9 mm |
2.88
73.2 mm |
0.9423.9 mm |
3.00
76.2 mm |
2.00
50.8 mm |
0.9423.9 mm |
|
|
3/8-16UNC-2B |
| 6TVHC6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.13
104.9 mm |
2.88
73.2 mm |
0.9423.9 mm |
2.00
50.8 mm |
2.00
50.8 mm |
0.9423.9 mm |
|
|
3/8-16UNC-2B |
| 6TVC6-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 62 |
4.85
123.2 mm |
3.26
82.8 mm |
1.0626.9 mm |
3.75
95.3 mm |
2.2557.2 mm |
1.0927.7 mm |
|
|
7/16-14UNC-2B |
| 6TVC6-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 62 |
5.88
149.4 mm |
3.86
98.0 mm |
1.1228.4 mm |
4.51
114.6 mm |
2.63
66.8 mm |
1.2531.8 mm |
|
|
1/2-13UNC-2B |
| 6TVC6-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 62 |
6.80
172.7 mm |
4.50
114.3 mm |
1.3835.1 mm |
4.75120.7 mm |
3.13
79.5 mm |
1.4436.6 mm |
|
|
5/8-11UNC-2B |
| 6TVC6-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
8.07
205.0 mm |
5.00
127.0 mm |
1.5038.1 mm |
6.75
171.5 mm |
3.81
96.8 mm |
1.7544.5 mm |
|
|
3/4-10UNC-2B |
| 640C6FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
8.87
225.3 mm |
5.88
149.4 mm |
2.0050.8 mm |
8.01
203.5 mm |
3.81
96.8 mm |
1.7544.5 mm |
|
|
3/4-10UNC-2B |
COUPLINGS | 6TV - POPPET STYLE FLANGED PORT | NIPPLE - MALE HALF

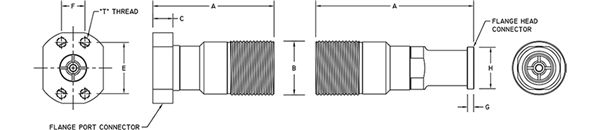

NIPPLE - MALE HALF
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
B |
C |
E |
F |
G |
H |
T |
| 6TVN5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
6.15
156.2 mm |
1.75
44.5 mm |
|
|
|
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVN5-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 61 |
7.18
182.4 mm |
2.25
57.2 mm |
|
|
|
0.32
8.0 mm |
1.75
44.5 mm |
|
| 6TVN4-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 61 |
8.70
221.0 mm |
2.63
66.8 mm |
|
|
|
0.32
8.0 mm |
2.0050.8 mm |
|
| 6TVN3-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 61 |
9.39
238.5 mm |
3.25
82.6 mm |
|
|
|
0.32
8.0 mm |
2.3860.5 mm |
|
| 6TVN3-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 61 |
10.57
268.5 mm |
4.00
101.6 mm |
|
|
|
0.38
9.5 mm |
2.81
71.4 mm |
|
| 6TVN25-FH40 |
FH - SAE J518 4-Bolt Flange Head |
-40 (2 1/2") |
Code 61 |
12.39
314.7 mm |
5.25
133.4 mm |
|
|
|
0.38
9.5 mm |
3.31
84.1 mm |
|
| 6TVN6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
6.40
162.6 mm |
1.75
44.5 mm |
|
|
|
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVN6-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 62 |
7.73
196.3 mm |
2.25
57.2 mm |
|
|
|
0.38
9.5 mm |
1.88
47.6 mm |
|
| 6TVN6-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 62 |
9.26
235.2 mm |
2.6366.8 mm |
|
|
|
0.41
10.3 mm |
2.13
54.0 mm |
|
| 6TVN6-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 62 |
9.83
249.7 mm |
3.25
82.6 mm |
|
|
|
0.50
12.7 mm |
2.50
63.5 mm |
|
| 6TVN6-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
11.80
299.7 mm |
4.00
101.6 mm |
|
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 640N6FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
13.45
341.6 mm |
5.25
133.4 mm |
|
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 6TVN5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.43
112.5 mm |
1.75
44.5 mm |
0.88
22.4 mm |
1.88
47.8 mm |
0.88
22.4 mm |
|
3/8-16UNC-2B |
| 6TVN5-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 61 |
5.33
135.4 mm |
2.25
57.2 mm |
0.88
22.4 mm |
2.06
52.3 mm |
1.03
26.2 mm |
|
3/8-16UNC-2B |
| 6TVN4-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 61 |
6.61
167.9 mm |
2.63
66.8 mm |
1.06
26.9 mm |
2.31
58.7 mm |
1.19
30.2 mm |
|
7/16-14UNC-2B |
| 6TVN3-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 61 |
7.33
186.2 mm |
3.25
82.6 mm |
1.06
26.9 mm |
2.75
69.9 mm |
1.41
35.8 mm |
|
1/2-13UNC-2B |
| 6TVN3-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 61 |
8.39
213.1 mm |
4.00
101.6 mm |
1.06
26.9 mm |
3.06
77.7 mm |
1.69
42.9 mm |
|
1/2-13UNC-2B |
| 6TVN25-FP40 |
FP - SAE J518 4-Bolt Flange Port |
-40 (2 1/2") |
Code 61 |
10.39
263.9 mm |
5.25
133.4 mm |
1.69
42.9 mm |
3.50
88.9 mm |
2.00
50.8 mm |
|
1/2-13UNC-2B |
| 6TVN6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.56
115.8 mm |
1.75
44.5 mm |
0.94
23.9 mm |
2.00
50.8 mm |
0.94
23.9 mm |
|
3/8-16UNC-2B |
| 6TVN6-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 62 |
5.57
141.5 mm |
2.25
57.2 mm |
1.06
26.9 mm |
2.25
57.2 mm |
1.09
27.7 mm |
|
7/16-14UNC-2B |
| 6TVN6-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 62 |
6.81
173.0 mm |
2.63
66.8 mm |
1.12
28.4 mm |
2.63
66.8 mm |
1.25
31.8 mm |
|
1/2-13UNC-2B |
| 6TVN6-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 62 |
7.75
196.9 mm |
3.25
82.6 mm |
1.38
35.1 mm |
3.13
79.5 mm |
1.44
36.6 mm |
|
5/8-11UNC-2B |
| 6TVN6-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
9.05
229.9 mm |
4.00
101.6 mm |
1.50
38.1 mm |
3.81
96.8 mm |
1.75
44.5 mm |
|
3/4-10UNC-2B |
| 640N6FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
10.70
271.8 mm |
5.25
133.4 mm |
2.00
50.8 mm |
3.81
96.8 mm |
1.75
44.5 mm |
|
3/4-10UNC-2B |
Coupler - Female Half Part Number
6TVC5-FH12
6TVHC5-FH12
6TVC5-FH16
6TVC4-FH20
6TVC3-FH24
6TVC3-FH32
6TVC25-FH40
6TVC6-FH12
6TVHC6-FH12
6TVC6-FH16
6TVC6-FH20
6TVC6-FH24
6TVC6-FH32
640C6FH32
6TVC5-FP12
6TVHC5-FP12
6TVC5-FP16
6TVC4-FP20
6TVC3-FP24
6TVC3-FP32
6TVC25-FP40
6TVC6-FP12
6TVHC6-FP12
6TVC6-FP16
6TVC6-FP20
6TVC6-FP24
6TVC6-FP32
640C6FP32
Nipple - Male Half Part Number
6TVN5-FH12
6TVN5-FH16
6TVN4-FH20
6TVN3-FH24
6TVN3-FH32
6TVN25-FH40
6TVN6-FH12
6TVN6-FH16
6TVN6-FH20
6TVN6-FH24
6TVN6-FH32
640N6FH32
6TVN5-FP12
6TVN5-FP16
6TVN4-FP20
6TVN3-FP24
6TVN3-FP32
6TVN25-FP40
6TVN6-FP12
6TVN6-FP16
6TVN6-FP20
6TVN6-FP24
6TVN6-FP32
640N6FP32
|
