Hydraulics, Inc. 旋转接头 SWIVELS

SWIVELS, COUPLINGS, AND CONTROLS FOR HYDRAULIC SYSTEMS

SWIVELS;S-Inline,HS-Heavy Duty Inline,9S-90° Swivel,9SS-Dual Plane Swivel,18S-Parallel Plane Swivel,Flange Swivels

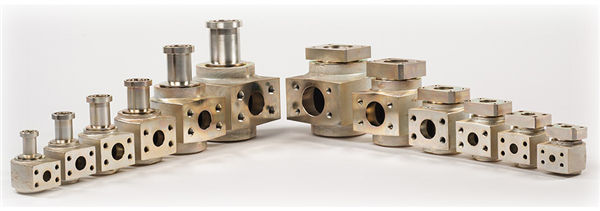

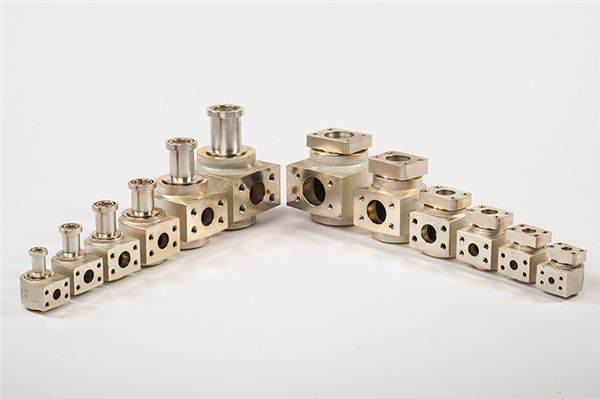

SWIVELS;Flange Swivels



Hydraulics, Inc.设计特点:

整体式筒体和阀杆-无焊接或钎焊接头

嵌入式和保护防尘密封件

抛光缸孔-延长密封寿命

低旋转扭矩的压力平衡

重型固定板和宽磨损区

优良的流动特性

防护处理.黄色铬酸盐RoHS兼容表面镀锌

现场可更换密封套件

抵抗机械负荷

本节所述的液压系统公司“93S”和“96S”系列导液旋转接头包括符合SAE J518规范61和规范62的SAE 4螺栓法兰连接。

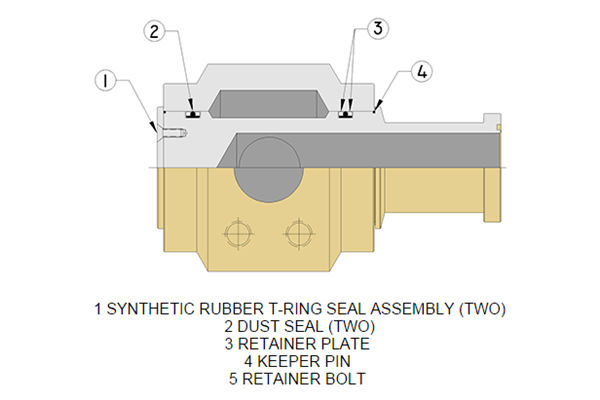

Hydraulics, Inc. Design Features
One Piece Barrel and Stem - No Weld or Braze Joint
Recessed and Protected Dust Seals
Burnished Barrel Bore - Extends Seal Life
Pressure Balanced for Low Rotational Torque
Heavy Duty Retainer Plate & Broad Wear Lands
Excellent Flow Characteistics
Protective Treatment - Zinc plating with Yellow Chromate RoHS Compliant Finish
Field Replaceable Seal Kits
Resists Mechanical Loads
Hydraulics, Inc. "93S" and "96S" Series Fluid Conducting Swivel Joints described in this section incorporate SAE 4-Bolt flange connections per SAE J518 Code 61 and Code 62.



为在恶劣应用中取得成功而制造的产品,没有焊接和钎焊接头。质量水平达到液压系统公司通常的高标准。耐用材料在建筑、采矿和其他艰难应用中提供重型设备所需的使用寿命。其结果是耐用的旋转接头性能为连续工作高功率流体动力传动系统。

Built to succeed in severe applications, the product is manufactured with the absence of weld and braze joints. Quality levels are to the usual high standards of Hydraulics, Inc. Durable materials provide the service life demanded of heavy equipment in construction, mining and other tough applications. The result is rugged swivel joint performance for continuous duty high horsepower fluid power transmission systems.



设备设计师选择此产品是为了保证结构完整性、高工作压力和连接器的可靠性。

Equipment designers select this product for structural integrity, high operating pressures, and connector reliability.



CAUTION:

不要试图在压力下断开和拆卸旋转装置。在压力下,不要从阀杆上拆下旋转筒。不要试图操作损坏的旋转接头,也不要操作显示油液泄漏和/或明显轴承磨损的旋转接头。考虑所选旋转装置的额定压力不能超过旋转装置及其所选端口的最低额定值。请参阅安全信息-选择和使用液压系统,包括旋转接头。
Do not attempt to disconnect and disassemble swivels under pressure. Do not remove the swivel barrel from stem while under pressure. Do not attempt to operate damaged swivels and do not operate swivels displaying fluid leak and/or obvious bearing wear. Consider that a selected swivels rated pressure cannot exceed the lowest rating of the swivel and of it’s selected ports. Refer to Safety Information - Selecting and Using Hydraulics, Inc. Swivel Joints.







压力限制Pressure Limitations:


“93S”和“96S”系列旋流器的最大工作压力在以下几页中提到;然而,连接管道的额定压力可能高于或低于旋转管道。流体动力系统的额定工作压力不应超过其最低额定部件。Maximum working pressure for “93S” and "96S" Series swivels is noted in the following pages; however, connecting plumbing may be rated higher or lower than that of the swivel. The rated working pressure of a fluid power system should not exceed the lowest rated component therein.



安装信息Installation Information:


液压系统公司的旋转接头通常被认为是流体动力系统中遇到的低速旋转。最大转速取决于系统环境,流体类型和与温度和压力有关的极端条件是首要考虑因素。可疑的应用应通过实验室或原型测试证明。安装时应避免污染,连接管道不应造成过度负荷。水龙头不应用作承重或结构构件。有关更多信息,请参阅选择和使用液压系统,包括旋转接头。Hydraulics, Inc. swivel joints are generally considered for low speed rotation as encountered in fluid power systems. Maximum speed of rotation depends upon system environment, with fluid types and extreme conditions related to temperature and pressure being of prime consideration. Questionable applications should be proven by laboratory or prototype testing. Contamination at installation should be avoided and connecting plumbing should not cause undue loading. The swivel should not be used as a load bearing or structural member. Refer to Selecting and Using Hydraulics, Inc. Swivel Joints for additional information.



Options


本网站上显示的旋转阀被视为液压公司的标准配置。有关压力额定值或端口选项的其他要求,本网站上未显示,请与我们联系。可通过在零件号中添加密封化合物指示符后缀来指定可选的密封材料。Swivels shown on this website are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings or port options, not shown on this website, please contact us. Optional seal material may be specified by adding the seal compound designator suffix to the part number.







96S-90° Code 62 Ports
93S-90° Code 61 Ports


SWIVELS | FLANGE SWIVELS | 96S-90° CODE 62 PORTS
96S-90° CODE 62 PORTS



FP-4 Bolt Flange Port to FP-4 Bolt Flange Port
FP-4 Bolt Flange Port to FH-4 Bolt Flange Head



SWIVELS | FLANGE SWIVELS | 96S-90° CODE 62 PORTS | 4 BOLT FLANGE PORT TO 4 BOLT FLANGE PORT

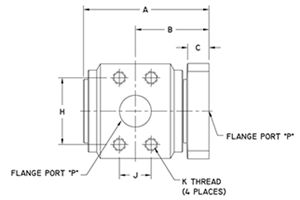

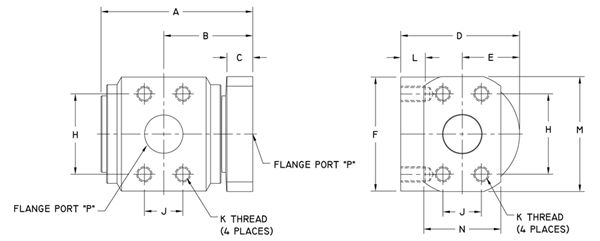

4 BOLT FLANGE PORT TO 4 BOLT FLANGE PORT
4-bolt-flange-port-to-4-bolt-flange-por





Part Number A B C D E F H J K L M N P Max W.P.
96S8FP8-FP8 3.13 79.5 mm 1.89 48.0 mm 0.63 16.0 mm 2.85 72.4 mm 1.27 32.3 mm 2.53 64.3 mm 1.59 40.5 mm 0.72 18.2 mm 5/16-18 UNC-2B 0.87 22.1 mm 2.22 56.4 mm 1.62 41.1 mm 0.50 12.7 mm 6,000 PSI 41.4 MPa
96S12FP12-FP12 3.73 94.7 mm 2.22 56.4 mm 0.75 19.1 mm 3.03 77.0 mm 1.39 35.3 mm 2.78 70.6 mm 2.00 50.8 mm 0.94 23.8 mm 3/8-16 UNC-2B 0.87 22.1 mm 2.81 71.4 mm 1.88 47.8 mm 0.75 19.1 mm 6,000 PSI 41.4 MPa
96S16FP16-FP16 4.24 107.7 mm 2.52 64.0 mm 0.81 20.6 mm 3.36 85.3 mm 1.61 40.9 mm 3.22 81.8 mm 2.25 57.2 mm 1.09 27.8 mm 7/16-14 UNC-2B 0.87 22.1 mm 3.19 81.0 mm 2.12 53.8 mm 1.00 25.4 mm 6,000 PSI 41.4 MPa
96S20FP20-FP20 4.93 125.2 mm 2.90 73.7 mm 0.88 22.4 mm 3.86 98.0 mm 1.86 47.2 mm 3.72 94.5 mm 2.63 66.7 mm 1.25 31.8 mm 1/2-13 UNC-2B 0.80 20.3 mm 3.75 95.3 mm 2.50 63.5 mm 1.25 31.8 mm 6,000 PSI 41.4 MPa
96S24FP24-FP24 6.84 173.7 mm 4.10 104.1 mm 1.37 34.8 mm 5.03 127.8 mm 2.36 59.9 mm 4.72 119.9 mm 3.13 79.4 mm 1.44 36.5 mm 5/8-11 UNC-2B 1.06 26.9 mm 4.44 112.8 mm 3.25 82.6 mm 1.50 38.1 mm 6,000 PSI 41.4 MPa
96S32FP32-FP32 7.71 195.8 mm 4.50 114.3 mm 1.31 33.3 mm 6.35 161.3 mm 2.98 75.7 mm 5.97 151.6 mm 3.81 96.8 mm 1.75 44.5 mm 3/4-10 UNC-2B 1.31 33.3 mm 5.25 133.4 mm 3.50 88.9 mm 2.00 50.8 mm 6,000 PSI 41.4 MPa



SWIVELS | FLANGE SWIVELS | 96S-90° CODE 62 PORTS | 4 BOLT FLANGE PORT TO 4 BOLT FLANGE HEAD

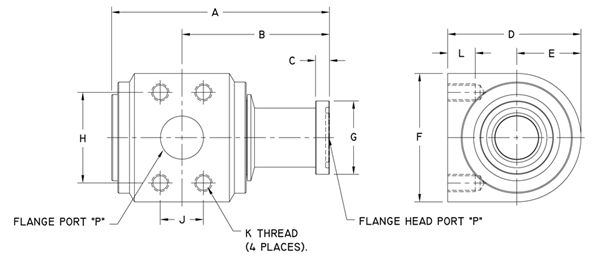

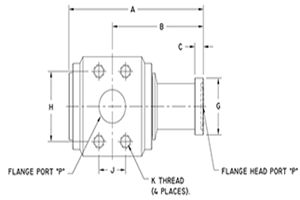

4 BOLT FLANGE PORT TO 4 BOLT FLANGE HEAD
4-bolt-flange-port-to-4-bolt-flange-head





Part Number A B C D E F G H J K L P Max W.P.
96S8FP8-FH8 4.13 104.9 mm 2.89 73.4 mm 0.31 7.9 mm 2.85 72.4 mm 1.27 32.3 mm 2.53 64.3 mm 1.25 31.8 mm 1.59 40.5 mm 0.72 18.2 mm 5/16-18 UNC-2B 0.87 22.1 mm 0.50 12.7 mm 6,000 PSI 41.4 MPa
96S12FP12-FH12 4.88 124.0 mm 3.37 85.6 mm 0.35 8.9 mm 3.03 77.0 mm 1.39 35.3 mm 2.78 70.6 mm 1.63 41.4 mm 2.00 50.8 mm 0.94 23.8 mm 3/8-16 UNC-2B 0.87 22.1 mm 0.75 19.1 mm 6,000 PSI 41.4 MPa
96S16FP16-FH16 5.64 143.3 mm 3.92 99.6 mm 0.38 9.7 mm 3.36 85.3 mm 1.61 40.9 mm 3.22 81.8 mm 1.88 47.8 mm 2.25 57.2 mm 1.09 27.8 mm 7/16-14 UNC-2B 0.87 22.1 mm 1.00 25.4 mm 6,000 PSI 41.4 MPa
96S20FP20-FH20 6.31 160.3 mm 4.28 108.7 mm 0.41 10.4 mm 3.86 98.0 mm 1.86 47.2 mm 3.72 94.5 mm 2.13 54.1 mm 2.63 66.7 mm 1.25 31.8 mm 1/2-13 UNC-2B 0.80 20.3 mm 1.25 31.8 mm 6,000 PSI 41.4 MPa
96S24FP24-FH24 8.40 213.4 mm 5.66 143.8 mm 0.50 12.7 mm 5.03 127.8 mm 2.36 59.9 mm 4.72 119.9 mm 2.50 63.5 mm 3.13 79.4 mm 1.44 36.5 mm 5/8-11 UNC-2B 1.06 26.9 mm 1.50 38.1 mm 6,000 PSI 41.4 MPa
96S32FP32-FH32 9.88 251.0 mm 6.67 169.4 mm 0.50 12.7 mm 6.35 161.3 mm 2.98 75.7 mm 5.97 151.6 mm 3.13 79.5 mm 3.81 96.8 mm 1.75 44.5 mm 3/4-10 UNC-2B 1.31 33.3 mm 2.00 50.8 mm 6,000 PSI 41.4 MPa





SWIVELS | FLANGE SWIVELS | 93S-90° CODE 61 PORTS
93S-90° CODE 61 PORTS



FP-4 Bolt Flange Port to FP-4 Bolt Flange Port
FP-4 Bolt Flange Port to FH-4 Bolt Flange Head




SWIVELS | FLANGE SWIVELS | 93S-90° CODE 61 PORTS | 4 BOLT FLANGE PORT TO 4 BOLT FLANGE PORT

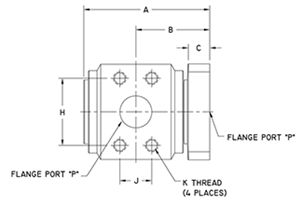

4 BOLT FLANGE PORT TO 4 BOLT FLANGE PORT
4-bolt-flange-port-to-4-bolt-flange-port





Part Number A B C D E F H J K L M N P Max W.P.
93S12FP12-FP12 3.26 82.8 mm 2.00 50.8 mm 0.75 19.1 mm 2.85 72.4 mm 1.27 32.3 mm 2.53 64.3 mm 1.88 47.6 mm 0.88 22.2 mm 3/8-16 UNC-2B 0.88 22.4 mm 2.56 65.0 mm 1.62 41.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
93S16FP16-FP16 3.76 95.5 mm 2.25 57.2 mm 0.75 19.1 mm 3.03 77.0 mm 1.39 35.3 mm 2.78 70.6 mm 2.06 52.4 mm 1.03 26.2 mm 3/8-16 UNC-2B 0.88 22.4 mm 2.75 69.9 mm 1.88 47.8 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
93S20FP20-FP20 4.32 109.7 mm 2.60 66.0 mm 0.88 22.4 mm 3.36 85.3 mm 1.61 40.9 mm 3.22 81.8 mm 2.31 58.7 mm 1.19 30.2 mm 7/16-14 UNC-2B 1.12 28.4 mm 3.12 79.2 mm 2.12 53.8 mm 1.25 31.8 mm 4,000 PSI 27.6 MPa
93S24FP24-FP24 4.93 125.2 mm 2.89 73.4 mm 0.88 22.4 mm 3.86 98.0 mm 1.86 47.2 mm 3.72 94.5 mm 2.75 69.9 mm 1.41 35.7 mm 1/2-13 UNC-2B 1.06 26.9 mm 3.69 93.7 mm 2.50 63.5 mm 1.50 38.1 mm 3,000 PSI 20.7 MPa
93S32FP32-FP32 6.65 168.9 mm 3.91 99.3 mm 1.18 30.0 mm 5.03 127.8 mm 2.36 59.9 mm 4.72 119.9 mm 3.06 77.8 mm 1.69 42.9 mm 1/2-13 UNC-2B 1.06 26.9 mm 4.00 101.6 mm 3.25 82.6 mm 2.00 50.8 mm 3,000 PSI 20.7 MPa
93S40FP40-FP40 7.39 187.7 mm 4.18 106.2 mm 1.00 25.4 mm 6.35 161.3 mm 2.98 75.7 mm 5.97 151.6 mm 3.50 88.9 mm 2.00 50.8 mm 1/2-13 UNC-2B 1.19 30.2 mm 4.50 114.3 mm 3.50 88.9 mm 2.50 63.5 mm 2,500 PSI 17.2 MPa



SWIVELS | FLANGE SWIVELS | 93S-90° CODE 61 PORTS | 4 BOLT FLANGE PORT TO 4 BOLT FLANGE HEAD

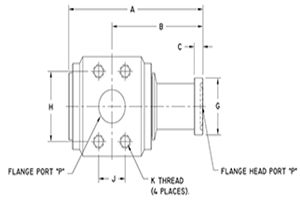

4 BOLT FLANGE PORT TO 4 BOLT FLANGE HEAD
4-bolt-flange-port-to-4-bolt-flange-head





Part Number A B C D E F G H J K L P Max W.P.
93S12FP12-FH12 4.18 106.2 mm 2.93 74.4 mm 0.27 6.9 mm 2.85 72.4 mm 1.27 32.3 mm 2.53 64.3 mm 1.50 38.1 mm 1.88 47.6 mm 0.88 22.2 mm 3/8-16 UNC-2B 0.88 22.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
93S16FP16-FH16 4.63 117.6 mm 3.12 79.2 mm 0.32 8.1 mm 3.03 77.0 mm 1.39 35.3 mm 2.78 70.6 mm 1.75 44.5 mm 2.06 47.6 mm 1.03 22.2 mm 3/8-16 UNC-2B 0.88 22.4 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
93S20FP20-FH20 5.40 137.2 mm 3.68 93.5 mm 0.32 8.1 mm 3.36 85.3 mm 1.61 40.9 mm 3.22 81.8 mm 2.00 50.8 mm 2.31 58.7 mm 1.19 30.2 mm 7/16-14 UNC-2B 1.12 28.4 mm 1.25 31.8 mm 4,000 PSI 27.6 MPa
93S24FP24-FH24 6.05 153.7 mm 4.01 101.9 mm 0.32 8.1 mm 3.86 98.0 mm 1.86 47.2 mm 3.72 94.5 mm 2.38 60.5 mm 2.75 69.9 mm 1.41 35.7 mm 1/2-13 UNC-2B 1.06 26.9 mm 1.50 38.1 mm 3,000 PSI 20.7 MPa
93S32FP32-FH32 7.56 192.0 mm 4.82 122.4 mm 0.38 9.7 mm 5.03 127.8 mm 2.36 59.9 mm 4.72 119.9 mm 2.81 71.4 mm 3.06 77.8 mm 1.69 42.9 mm 1/2-13 UNC-2B 1.06 26.9 mm 2.00 50.8 mm 3,000 PSI 20.7 MPa
93S40FP40-FH40 8.64 219.5 mm 5.43 137.9 mm 0.38 9.7 mm 6.35 161.3 mm 2.98 75.7 mm 5.97 151.6 mm 3.31 84.1 mm 3.50 88.9 mm 2.00 50.8 mm 1/2-13 UNC-2B 1.19 30.2 mm 2.50 63.5 mm 2,500 PSI 17.2 MPa



96S-90° Code 62 Ports
93S-90° Code 61 Ports

FP-4 Bolt Flange Port to FP-4 Bolt Flange Port
FP-4 Bolt Flange Port to FH-4 Bolt Flange Head

FP-4 Bolt Flange Port to FP-4 Bolt Flange Port
FP-4 Bolt Flange Port to FH-4 Bolt Flange Head



Part Number
96S8FP8-FP8
96S12FP12-FP12
96S16FP16-FP16
96S20FP20-FP20
96S24FP24-FP24
96S32FP32-FP32

Part Number
96S8FP8-FH8
96S12FP12-FH12
96S16FP16-FH16
96S20FP20-FH20
96S24FP24-FH24
96S32FP32-FH32

Part Number
93S12FP12-FP12
93S16FP16-FP16
93S20FP20-FP20
93S24FP24-FP24
93S32FP32-FP32
93S40FP40-FP40

Part Number
93S12FP12-FH12
93S16FP16-FH16
93S20FP20-FH20
93S24FP24-FH24
93S32FP32-FH32
93S40FP40-FH40
