Hydraulics Inc.快速接头COUPLINGS TVF系列

COUPLINGS | TVF - FLAT FACE STYLE | Coupler - Female Half | Nipple - Male Half |

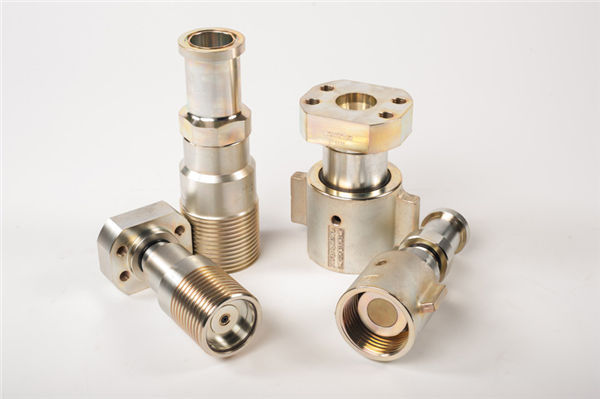

TVF - FLAT FACE STYLE



应用领域Field of Application
TVF系列快速接头是一个平面无泄漏设计,是环保的。这种快速接头是建立在承受恶劣的服务,在系统与高浪涌和冲击负荷,并找到青睐与高马力流体系统在许多行业。优越的流量特性、各种螺纹和法兰端口选项以及坚固的可靠性使TVF快速接头成为一个有吸引力的选项。The TVF Series coupling is a flat face no-spill design that is environmentally friendly. This coupling is built to withstand severe service in systems with high surge and shock loads and finds favor with high horsepower fluid systems across many industries. Superior flow characteristics, a variety of threaded and flanged port options, and rugged dependability make the TVF coupling an attractive option.





操作极限:

工作压力高达6000磅/平方英寸(41.4兆帕)-耦合或非耦合

全4:1安全系数(耦合或非耦合)

连续工作应用的优越流动特性

平顶短梯形螺纹和全钢结构,可承受储存和装配损坏

用于环保连接/断开的平面阀门

黄铬酸RoHS兼容面漆镀锌的防护处理

多端口选项–NPTF、BSPP、内螺纹SAE O形环、SAE法兰端口和法兰头

工作温度-30°F至250°F(-34°C至121°C)





Operating Limits:
Operating Pressures up to 6,000 psi (41.4 Mpa) - Coupled or Uncoupled
Full 4:1 Safety Factor (Coupled or Uncoupled)
Superior Flow Characteristics for continuous duty applications
Flat crested stub-acme threads and all steel contruction withstand storage and rig up damage
Flat face valving for environmentally friendly connect/disconnect
Protective treatment of zinc plating with yellow chromate RoHS compliant finish
Multiple port options – NPTF, BSPP, Female SAE O-Ring, SAE Flange Port and Flange Head
Operating Temperature -30°F to 250°F (-34°C to 121°C)

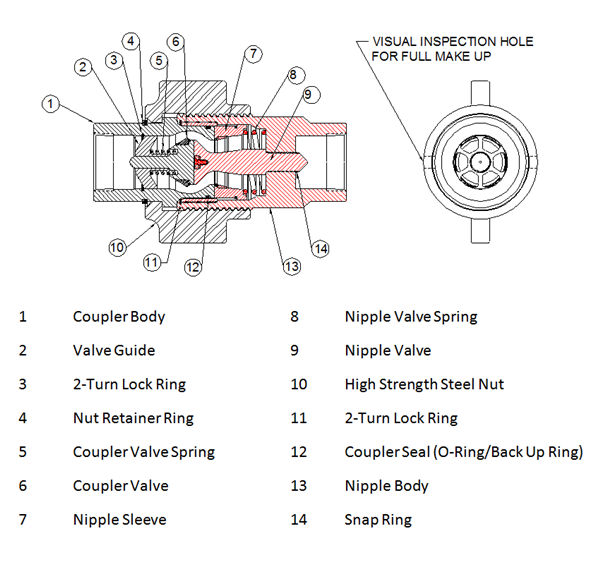

这些快速接头简化了长长度、大口径挠性软管组件的装配。它们设计用于在极端压力以及结构和系统引起的冲击载荷的恶劣环境中工作。阀门结构允许在软管孔中流体热膨胀产生的压力下进行组装,并通过高强度锤形凸耳螺母进行组装。These couplings simplify the rigging of long length, large bore flex hose assemblies. They are designed to operating in rugged environments under extreme pressures as well as structural and system induced shock loads. Valve construction permits assembly against pressure created by thermal expansion of fluid in the hose bore and make up is facilitated by a high strength hammer lug nut.

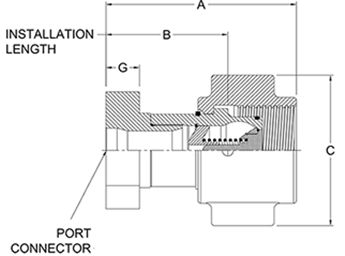

Coupler - Female Half

PF - Female Pipe Port Connector
OF- Female SAE O-Ring Port Connector
BF - Female British Pipe Port Connector



FH - SAE J518 4-Bolt Flange Head - Port Connector
FP - SAE J518 4-Bolt Flange Port - Port Connector



Nipple - Male Half

PF - Female Pipe Port Connector
OF - Female SAE O-Ring Port Connector
BF - Female British Pipe Port Connector



FH - SAE J518 4-Bolt Flange Head - Port Connector
FP - SAE J518 4-Bolt Flange Port - Port Connector



由于技术进步和产品改进,本网站上显示的所有设计和尺寸数据如有更改,恕不另行通知。技术资料是根据受控环境条件下的实际试验结果编制的,数据被认为是可靠的,但不能对其在各种现场条件下的准确性承担任何责任。Because of technological progress and product improvements, all design and dimensional data shown on this website is subject to change without notice. Technical information has been prepared from actual test results under controlled environmental conditions and data is considered to be reliable, but no responsibility can be assumed for its accuracy under varied field conditions.



WARNING!
Hydraulics,Inc.TVF快速接头不可与其他制造商生产的类似快速接头互换。液压系统,公司声明的耦合性能是基于配合真正的液压系统,公司TVF阀门和螺纹连接的公头和母头。Hydraulics, Inc. TVF couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. TVF valved and thread to connect couplers and nipples.



WARNING!
若要延长TVF管接头的功能服务,请仅使用原装液压系统,包括更换部件。To extend functional service of TVF couplings, use only genuine Hydraulics, Inc. replacement components.

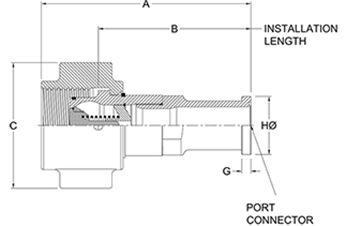

COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - PF - FEMALE PIPE

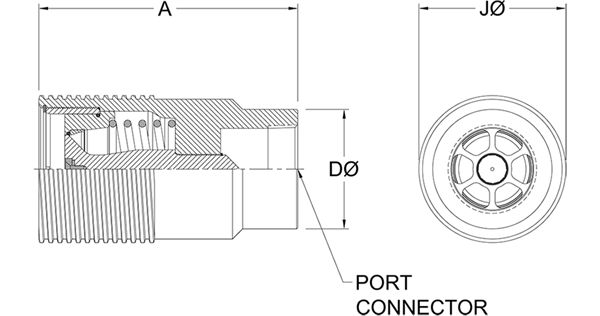

TVF -NIPPLE - MALE HALF - PF - FEMALE PIPE




Part Number T1 Port Connector Port Size A D J
TVF-N-20 1 1/4-11 1/2NPTF PF - Female Pipe -20 (1 1/4")

5.35

135.9 mm

2.25

57.2 mm

2.63

66.8 mm

TVF-N-24 1 1/2-11 1/2NPTF PF - Female Pipe -24 (1 1/2")

5.97

151.6 mm

2.50

63.5 mm

3.25

82.6 mm

TVF-N-32 2-11 1/2NPTF PF - Female Pipe -32 (2")

7.05

179.1 mm

3.25

82.6 mm

4.00

101.6 mm



COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - OF - FEMALE SAE O-RING
TVF - NIPPLE - MALE HALF - OF - FEMALE SAE O-RING





Part Number T1 Port Connector Port Size A D J
TVF-N-20OF 1 5/8-12UN-2B OF - Female SAE O-Ring -20 (1 1/4")

5.35

135.9 mm

2.25

57.2 mm

2.63

66.8 mm

TVF-N-24OF 1 7/8-12UN-2B OF - Female SAE O-Ring -24 (1 1/2")

5.97

151.6 mm

2.50

63.5 mm

3.25

82.6 mm

TVF-N-32OF 2 1/2-12UN-2B OF - Female SAE O-Ring -32 (2")

7.05

179.1 mm

3.25

82.6 mm

4.00

101.6 mm



COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - BF - FEMALE BRITISH PIPE
TVF - NIPPLE - MALE HALF - BF - FEMALE BRITISH PIPE




Part Number T1 Port Connector Port Size A D J
TVF-N-20BF G 1 1/4-11BSPP BF - Female British Pipe -20 (1 1/4")

5.35

135.9 mm

2.25

57.2 mm

2.63

66.8 mm

TVF-N-24BF G 1 1/2-11BSPP BF - Female British Pipe -24 (1 1/2")

5.97

151.6 mm

2.50

63.5 mm

3.25

82.6 mm

TVF-N-32BF G 2-11BSPP BF - Female British Pipe -32 (2")

7.05

179.1 mm

3.25

82.6 mm

4.00

101.6 mm



COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - FH - SAE J518 4-BOLT FLANGE HEAD

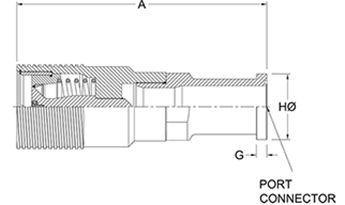

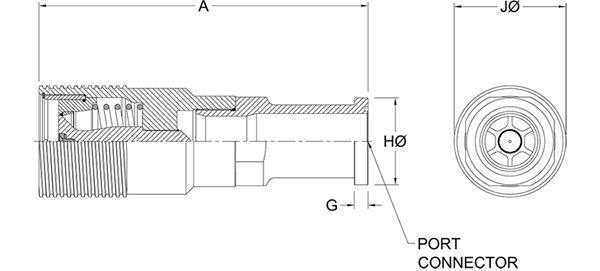

TVF - NIPPLE - MALE HALF - FH - SAE J518 4-BOLT FLANGE HEAD





Part Number Port Connector Port Size PC Sub A G J T
TVFN4-FH20 FH - SAE J518 4-Bolt Flange Head -20 (1 1/4") Code 61

8.70

221.0 mm

0.32

8.0 mm

2.00

50.8 mm

2.63

66.8 mm

TVFN3-FH24 FH - SAE J518 4-Bolt Flange Head -24 (1 1/2") Code 61

9.39

238.5 mm

0.32

8.0 mm

2.38

60.5 mm

3.25

82.6 mm

TVFN3-FH32 FH - SAE J518 4-Bolt Flange Head -32 (2") Code 61

10.57

268.5 mm

0.38

9.5 mm

2.81

71.4 mm

4.00

101.6 mm

TVFN6-FH20 FH - SAE J518 4-Bolt Flange Head -20 (1 1/4") Code 62

9.26

235.2 mm

0.41

10.3 mm

2.13

54.1 mm

2.63

66.8 mm

TVFN6-FH24 FH - SAE J518 4-Bolt Flange Head -24 (1 1/2") Code 62

9.83

249.7 mm

0.50

12.7 mm

2.50

63.5 mm

3.25

82.6 mm

TVFN6-FH32 FH - SAE J518 4-Bolt Flange Head -32 (2") Code 62

11.80

299.7 mm

0.50

12.7 mm

3.12

79.2 mm

4.00

101.6 mm



COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - FP - SAE J518 4-BOLT FLANGE PORT

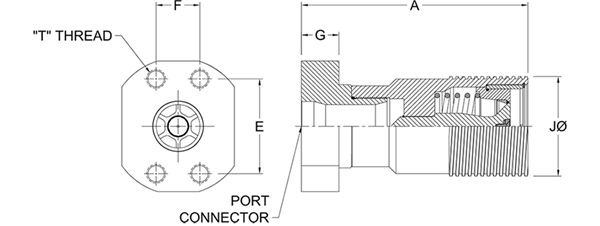

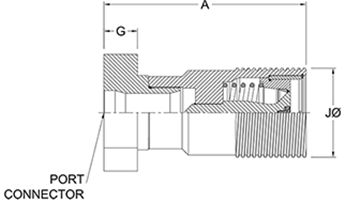

TVF - NIPPLE - MALE HALF - FP - SAE J518 4-BOLT FLANGE PORT







Part Number Port Connector Port Size PC Sub A E F G J T
TVFN4-FP20 FP - SAE J518 4-Bolt Flange Port -20 (1 1/4") Code 61

6.61

167.9 mm

2.31

58.7 mm

1.19

30.2 mm

1.06

26.9 mm

2.63

66.8 mm

7/16-14UNC-2B
TVFN3-FP24 FP - SAE J518 4-Bolt Flange Port -24 (1 1/2") Code 61

7.33

186.2 mm

2.75

69.9 mm

1.41

35.8 mm

1.06

26.9 mm

3.25

82.6 mm

1/2-13UNC-2B
TVFN3-FP32 FP - SAE J518 4-Bolt Flange Port -32 (2") Code 61

8.39

213.1 mm

3.06

77.7 mm

1.69

42.9 mm

1.06

26.9 mm

4.00

101.6 mm

1/2-13UNC-2B
TVFN6-FP20 FP - SAE J518 4-Bolt Flange Port -20 (1 1/4") Code 62

6.81

173.0 mm

2.63

66.8 mm

1.25

31.8 mm

1.12

28.4 mm

2.63

66.8 mm

1/2-13UNC-2B
TVFN6-FP24 FP - SAE J518 4-Bolt Flange Port -24 (1 1/2") Code 62

7.75

196.9 mm

3.13

79.5 mm

1.44

36.6 mm

1.38

35.1 mm

3.25

82.6 mm

5/8-11UNC-2B
TVFN6-FP32 FP - SAE J518 4-Bolt Flange Port -32 (2") Code 62

9.05

229.9 mm

3.81

96.8 mm

1.75

44.5 mm

1.50

38.1 mm

4.00

101.6 mm

3/4-10UNC-2B



TVF - NIPPLE - MALE HALF - PF - FEMALE PIPE Part Number
TVF-N-20
TVF-N-24
TVF-N-32

TVF - NIPPLE - MALE HALF - OF - FEMALE SAE O-RING Part Number
TVF-N-20OF
TVF-N-24OF
TVF-N-32OF

TVF - NIPPLE - MALE HALF - BF - FEMALE BRITISH PIPE Part Number
TVF-N-20BF
TVF-N-24BF
TVF-N-32BF

TVF - NIPPLE - MALE HALF - FH - SAE J518 4-BOLT FLANGE HEAD Part Number
TVFN4-FH20
TVFN3-FH24
TVFN3-FH32
TVFN6-FH20
TVFN6-FH24
TVFN6-FH32

TVF - NIPPLE - MALE HALF - FP - SAE J518 4-BOLT FLANGE PORT Par tNumber
TVFN4-FP20
TVFN3-FP24
TVFN3-FP32
TVFN6-FP20
TVFN6-FP24
TVFN6-FP32
