Hydraulics, Inc. 旋转接头 SWIVELS

SWIVELS, COUPLINGS, AND CONTROLS FOR HYDRAULIC SYSTEMS

SWIVELS；S-Inline，HS-Heavy Duty Inline，9S-90° Swivel，9SS-Dual Plane Swivel，18S-Parallel Plane Swivel，Flange Swivels

SWIVELS；9S-90° Swivel



“9S”系列旋转阀代表了工业上最完整的尺寸和配置范围之一。该系列已重新设计，以纳入一个整体桶安排，从而消除了钎焊接头的需要。这些旋转阀压力平衡，工作压力高达5000 psi。所有配置均采用4:1安全系数设计，并包括符合RoHS标准的镀锌层。The "9S" Series swivels represent one of the most complete range of sizes and configurations available to industry. This series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5,000 psi. All configurations are designed with a 4:1 Safety Factor and include RoHS compliant zinc plating.





HYDRAULICS, INC. 设计特性

防护处理.黄色铬酸盐RoHS兼容表面镀锌

整体熔模铸造筒体-无钎焊接头

全4:1设计安全系数

标准O形环和支承环-现场可更换密封套件

可选密封材料

抛光缸孔-延长密封寿命

嵌入式和保护防尘密封件

低旋转扭矩的压力平衡

重型固定环

优良的流动特性

HYDRAULICS, INC. Design Features
Protective treatment - Zinc Plating with Yellow Chromate RoHS compliant finish
One piece investment cast barrel - no braze joint
Full 4:1 design safety factor
Standard O-Ring and back up ring - Field replaceable seal kits
Optional seal material
Burnished barrel bore - Extends seal life
Recessed and protected dust seals
Pressure balanced for low rotational torque
Heavy duty retainer ring
Excellent flow characteristics





压力限制：Pressure Limitations:


“9S”系列旋转阀的最大工作压力取决于所选的端口选择，最高可达5000 psi（34.5 MPa）；然而，连接管道的额定压力可能高于或低于旋转阀。流体动力系统的额定工作压力不应超过其最低额定部件。Maximum working pressure for “9S” Series swivels is up to 5,000 psi (34.5 MPa) depending on port options chosen; however, connecting plumbing may be rated higher or lower than that of the swivel. The rated working pressure of a fluid power system should not exceed the lowest rated component therein.



安装信息：Installation Information:


Hydraulics, Inc.的旋转接头通常被认为是流体动力系统中遇到的低速旋转。最大转速取决于系统环境，流体类型和与温度和压力有关的极端条件是首要考虑因素。可疑的应用应通过实验室或原型测试证明。安装时应避免污染，连接管道不应造成过度负荷。水龙头不应用作承重或结构构件。请参阅安全信息，选择和使用液压系统，包括旋转接头。Hydraulics, Inc. swivel joints are generally considered for low speed rotation as encountered in fluid power systems. Maximum speed of rotation depends upon system environment, with fluid types and extreme conditions related to temperature and pressure being of prime consideration. Questionable applications should be proven by laboratory or prototype testing. Contamination at installation should be avoided and connecting plumbing should not cause undue loading. The swivel should not be used as a load bearing or structural member. Refer to Safety Information, Selecting and Using Hydraulics, Inc. Swivel Joints.



选项：Options:
本目录中显示的旋转阀被视为Hydraulics, Inc.的标准配置。对于本目录中未显示的与压力额定值或端口选项相关的其他要求，请与我们联系。可通过在零件号中添加密封化合物指示符后缀来指定可选的密封材料。Swivels shown in this catalog are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings or port options, not shown in this catalog, please contact us. Optional seal material may be specified by adding the seal compound designator suffix to the part number.




Male O-Ring Face Seal to Male O-Ring Face Seal Male O-Ring Face Seal to Female O-Ring Face Seal Male O-Ring Face Seal to Male JIC
Male O-Ring Face Seal to Male SAE O-Ring Boss Male O-Ring Face Seal to Male Pipe Male O-Ring Face Seal to Female Pipe
Female O-Ring Face Seal Union to Male O-Ring Face Seal Female O-Ring Face Seal Union to Female O-Ring Face Seal Female O-Ring Face Seal Union to Male JIC
Female O-Ring Face Seal Union to Male SAE O-Ring Boss Female O-Ring Face Seal Union to Male Pipe Female O-Ring Face Seal Union to Female Pipe
Male JIC to Male O-Ring Face Seal
 Male JIC to Female O-Ring Face Seal Male JIC to Male JIC
Male JIC to Male SAE O-Ring Boss Male JIC to Male Pipe Male JIC to Female Pipe
Female Pipe Union to Male O-Ring Face Seal Female Pipe Union to Female O-Ring Face Seal Female Pipe Union to Male JIC
Female Pipe Union to Male SAE O-Ring Boss Female Pipe Union to Male Pipe Female Pipe Union to Female Pipe
Female Pipe to Male O-Ring Face Seal Female Pipe to Female O-Ring Face Seal Female Pipe to Male JIC
Female Pipe to Male SAE O-Ring Boss Female Pipe to Male Pipe Female Pipe to Female Pipe
Male Pipe to Male O-Ring Face Seal Male Pipe to Female O-Ring Face Seal Male Pipe to Male JIC
Male Pipe to O-Male SAE O-Ring Boss Male Pipe to Male Pipe Male Pipe to Female Pipe

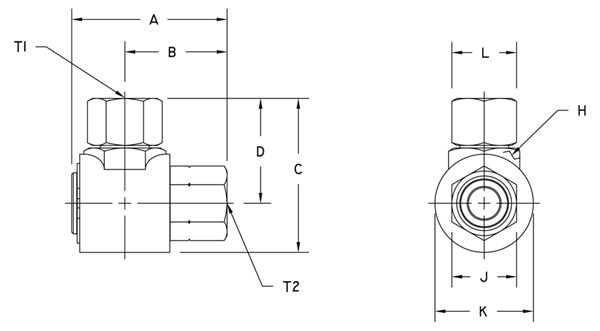

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO MALE O-RING FACE SEAL
FEMALE PIPE UNION TO MALE O-RING FACE SEAL
female-pipe-union-to-male-o-ring-face-seal





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-F4 1/4-18 NPSM 9/16-18 UNF-2A 2.12 53.8 mm 1.40 35.6 mm 1.55 39.4 mm 1.17 29.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-F6 1/4-18 NPSM 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-F8 1/4-18 NPSM 13/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU6-F6 3/8-18 NPSM 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-F8 3/8-18 NPSM 13/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-F8 1/2-14 NPSM 13/16-16 UN-2A 2.58 65.5 mm 1.74 44.2 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S8PU8-F10 1/2-14 NPSM 1-14 UNS-2A 2.77 70.4 mm 1.93 49.0 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-F12 3/4-14 NPSM 1 3/16-12 UN-2A 3.34 84.8 mm 2.30 58.4 mm 2.98 75.7 mm 2.03 51.6 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-F16 1-11 1/2 NPSM 1 7/16-12 UN-2A 3.76 95.5 mm 2.62 66.5 mm 3.31 84.1 mm 2.25 57.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-F20 1 1/4-11 1/2 NPSM 1 11/16-12 UN-2A 4.12 104.6 mm 2.80 71.1 mm 4.02 102.1 mm 2.65 67.3 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-F24 1 1/2-11 1/2 NPSM 2-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 4.86 123.4 mm 3.11 79.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa

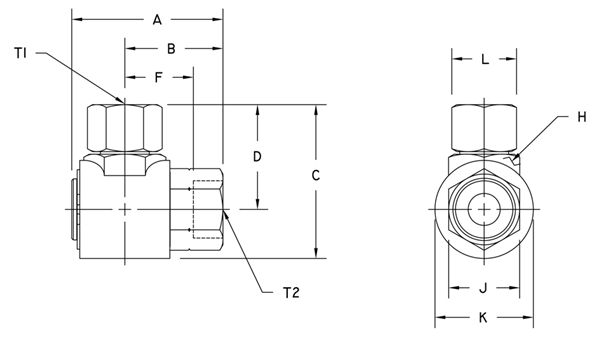

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO FEMALE O-RING FACE SEAL
FEMALE PIPE UNION TO FEMALE O-RING FACE SEAL
female-pipe-union-to-female-o-ring-face-seal





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-FF4 1/4-18 NPSM 9/16-18 UNF-2B 1.87 47.5 mm 1.15 29.2 mm 1.55 39.4 mm 1.17 29.7 mm 0.83 21.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-FF6 1/4-18 NPSM 11/16-16 UN-2B 2.22 56.4 mm 1.37 34.8 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-FF8 1/4-18 NPSM 13/16-16 UN-2B 2.38 60.5 mm 1.53 38.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU6-FF6 3/8-18 NPSM 11/16-16 UN-2B 2.22 56.4 mm 1.37 34.8 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-FF8 3/8-18 NPSM 13/16-16 UN-2B 2.38 60.5 mm 1.53 38.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-FF8 1/2-14 NPSM 13/16-16 UN-2B 2.36 59.9 mm 1.52 38.6 mm 2.39 60.7 mm 1.64 41.7 mm 1.08 27.4 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S8PU8-FF10 1/2-14 NPSM 1-14 UNS-2B 2.46 62.5 mm 1.62 41.1 mm 2.39 60.7 mm 1.64 41.7 mm 1.09 27.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-FF12 3/4-14 NPSM 1 3/16-12 UN-2B 2.92 74.2 mm 1.88 47.8 mm 2.98 75.7 mm 2.03 51.6 mm 1.31 33.3 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-FF16 1-11 1/2 NPSM 1 7/16-12 UN-2B 3.21 81.5 mm 2.06 52.3 mm 3.31 84.1 mm 2.25 57.2 mm 1.48 37.6 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-FF20 1 1/4-11 1/2 NPSM 1 11/16-12 UN-2B 3.55 90.2 mm 2.23 56.6 mm 4.02 102.1 mm 2.64 67.1 mm 1.65 41.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-FF24 1 1/2-11 1/2 NPSM 2-12 UN-2B 4.43 112.5 mm 2.66 67.6 mm 4.86 123.4 mm 3.11 79.0 mm 2.08 52.8 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa

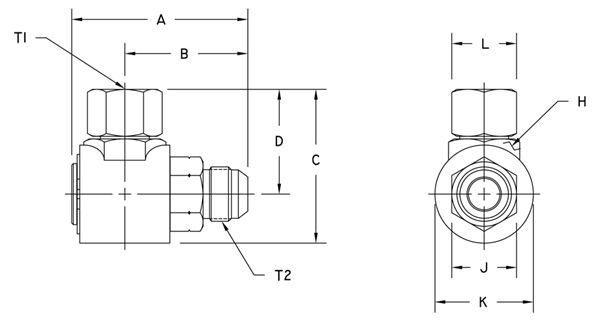

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO MALE JIC
FEMALE PIPE UNION TO MALE JIC
female-pipe-union-to-male-jic





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-J4 1/4-18 NPSM 7/16-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.55 39.4 mm 1.17 29.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4PU4-J5 1/4-18 NPSM 1/2-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.55 39.4 mm 1.17 29.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-J6 1/4-18 NPSM 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-J8 1/4-18 NPSM 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU6-J5 3/8-18 NPSM 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-J6 3/8-18 NPSM 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-J8 3/8-18 NPSM 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-J8 1/2-14 NPSM 3/4-16 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S8PU8-J10 1/2-14 NPSM 7/8-14 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-J12 3/4-14 NPSM 1 1/16-12 UN-2A 3.40 86.4 mm 2.36 59.9 mm 2.98 75.7 mm 2.03 51.6 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-J16 1-11 1/2 NPSM 1 5/16-12 UN-2A 3.82 97.0 mm 2.68 68.1 mm 3.31 84.1 mm 2.25 57.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-J20 1 1/4-11 1/2 NPSM 1 5/8-12 UN-2A 4.13 104.9 mm 2.81 71.4 mm 4.02 102.1 mm 2.64 67.1 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-J24 1 1/2-11 1/2 NPSM 1 7/8-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 4.86 123.4 mm 3.11 79.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa
9S32PU32-J32 2-11 1/2 NPSM 2 1/2-12 UN-2A 6.25 158.8 mm 4.15 105.4 mm 6.19 157.2 mm 3.94 100.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 2.75 69.9 mm 3,000 PSI 20.7 MPa

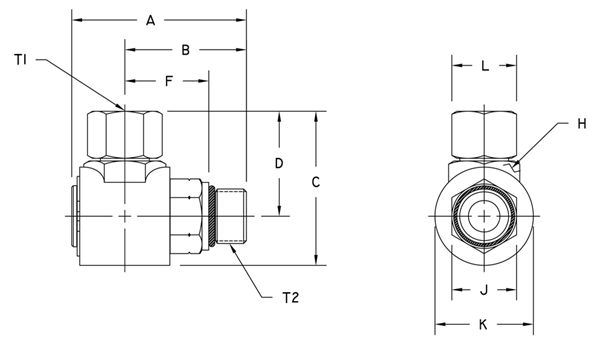

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO MALE SAE O-RING BOSS
FEMALE PIPE UNION TO MALE SAE O-RING BOSS
female-pipe-union-to-male-sae-o-ring-boss





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-O4 1/4-18 NPSM 7/16-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.55 39.4 mm 1.17 29.7 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4PU4-O5 1/4-18 NPSM 1/2-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.55 39.4 mm 1.17 29.7 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-O5 1/4-18 NPSM 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU4-O6 1/4-18 NPSM 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU4-O8 1/4-18 NPSM 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-O4 3/8-18 NPSM 7/16-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.40 35.6 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-O5 3/8-18 NPSM 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-O6 3/8-18 NPSM 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-O8 3/8-18 NPSM 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-O8 1/2-14 NPSM 3/4-16 UNF-2A 2.58 65.5 mm 1.74 44.2 mm 2.39 60.7 mm 1.64 41.7 mm 1.19 30.2 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S8PU8-O10 1/2-14 NPSM 7/8-14 UNF-2A 2.82 71.6 mm 1.98 50.3 mm 2.39 60.7 mm 1.64 41.7 mm 1.35 34.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S8PU8-O12 1/2-14 NPSM 1 1/16-12 UN-2A 3.00 76.2 mm 2.16 54.9 mm 2.39 60.7 mm 1.64 41.7 mm 1.44 36.6 mm 1.13 28.7 mm 1.25 31.8 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-O12 3/4-14 NPSM 1 1/16-12 UN-2A 3.37 85.6 mm 2.33 59.2 mm 2.98 75.7 mm 2.03 51.6 mm 1.62 41.1 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-O16 1-11 1/2 NPSM 1 5/16-12 UN-2A 3.62 91.9 mm 2.48 63.0 mm 3.31 84.1 mm 2.25 57.2 mm 1.78 45.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-O20 1 1/4-11 1/2 NPSM 1 5/8-12 UN-2A 4.08 103.6 mm 2.76 70.1 mm 4.02 102.1 mm 2.64 67.1 mm 2.04 51.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-O24 1 1/2-11 1/2 NPSM 1 7/8-12 UN-2A 4.91 124.7 mm 3.14 79.8 mm 4.86 123.4 mm 3.11 79.0 mm 2.42 61.5 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa

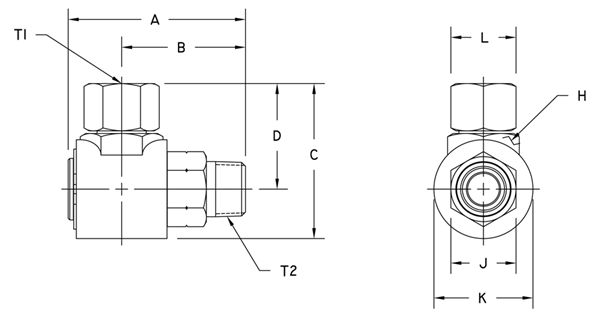

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO MALE PIPE
FEMALE PIPE UNION TO MALE PIPE
female-pipe-union-to-male-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-P4 1/4-18 NPSM 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.55 39.4 mm 1.17 29.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-P4 1/4-18 NPSM 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU4-P6 1/4-18 NPSM 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-P4 3/8-18 NPSM 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-P6 3/8-18 NPSM 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-P8 1/2-14 NPSM 1/2-14 NPTF 2.83 71.9 mm 1.99 50.5 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-P12 3/4-14 NPSM 3/4-14 NPTF 3.40 86.4 mm 2.36 59.9 mm 2.98 75.7 mm 2.03 51.6 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-P16 1-11 1/2 NPSM 1-11 1/2 NPTF 3.82 97.0 mm 2.68 68.1 mm 3.31 84.1 mm 2.25 57.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-P20 1 1/4-11 1/2 NPSM 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.02 102.1 mm 2.64 67.1 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-P24 1 1/2-11 1/2 NPSM 1 1/2-11 1/2 NPTF 5.32 135.1 mm 3.55 90.2 mm 4.86 123.4 mm 3.11 79.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa
9S32PU32-P32 2-11 1/2 NPSM 2-11 1/2 NPTF 6.20 157.5 mm 4.10 104.1 mm 6.19 157.2 mm 3.94 100.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 2.75 69.9 mm 3,000 PSI 20.7 MPa



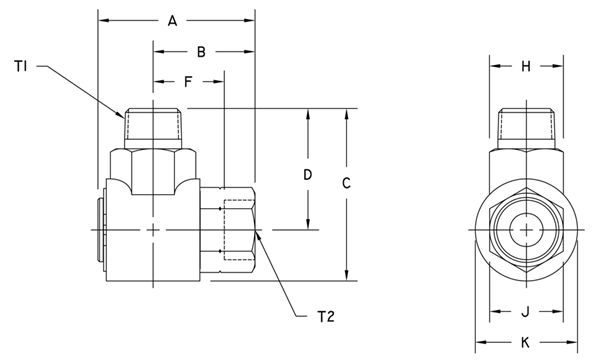

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE UNION TO FEMALE PIPE
FEMALE PIPE UNION TO FEMALE PIPE
female-pipe-union-to-female-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. L Hex Max W.P.
9S4PU4-PF4 1/4-18 NPSM 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.55 39.4 mm 1.17 29.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PU4-PF4 1/4-18 NPSM 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU4-PF6 1/4-18 NPSM 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-PF4 3/8-18 NPSM 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.73 43.9 mm 1.27 32.3 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S6PU6-PF6 3/8-18 NPSM 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.86 47.2 mm 1.40 35.6 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 0.87 22.1 mm 5,000 PSI 34.5 MPa
9S8PU8-PF8 1/2-14 NPSM 1/2-14 NPTF 2.62 66.5 mm 1.78 45.2 mm 2.39 60.7 mm 1.64 41.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 1.00 25.4 mm 5,000 PSI 34.5 MPa
9S12PU12-PF12 3/4-14 NPSM 3/4-14 NPTF 3.00 76.2 mm 1.98 50.3 mm 2.98 75.7 mm 2.03 51.6 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 1.25 31.8 mm 5,000 PSI 34.5 MPa
9S16PU16-PF16 1-11 1/2 NPSM 1-11 1/2 NPTF 3.40 86.4 mm 2.26 57.4 mm 3.31 84.1 mm 2.25 57.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 1.50 38.1 mm 4,000 PSI 27.6 MPa
9S20PU20-PF20 1 1/4-11 1/2 NPSM 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.02 102.1 mm 2.64 67.1 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 1.87 47.5 mm 4,000 PSI 27.6 MPa
9S24PU24-PF24 1 1/2-11 1/2 NPSM 1 1/2-11 1/2 NPTF 4.89 124.2 mm 3.12 79.2 mm 4.86 123.4 mm 3.11 79.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 2.25 57.2 mm 4,000 PSI 27.6 MPa
9S32PU32-PF32 2-11 1/2 NPSM 2-11 1/2 NPTF 5.50 139.7 mm 3.40 86.4 mm 6.19 157.2 mm 3.94 100.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 2.75 69.9 mm 3,000 PSI 20.7 MPa

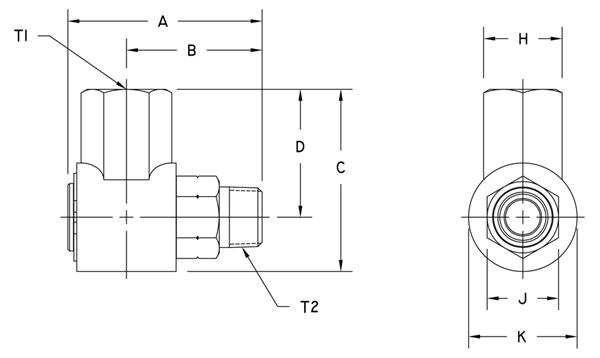

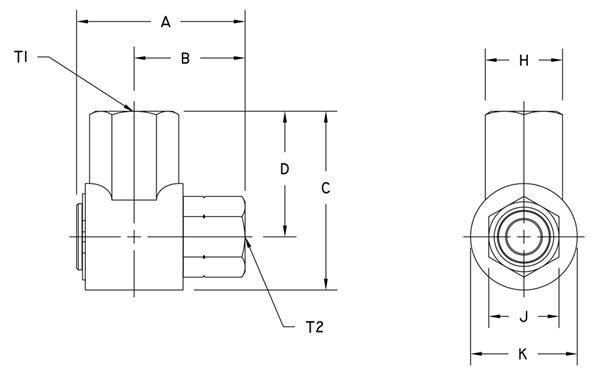

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO MALE O-RING FACE SEAL
FEMALE PIPE TO MALE O-RING FACE SEAL
female-pipe-to-male-o-ring-face-seal





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-F4 1/4-18 NPTF 9/16-18 UNF-2A 2.12 53.8 mm 1.40 35.6 mm 1.63 41.4 mm 1.25 31.8 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-F6 1/4-18 NPTF 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF4-F8 1/4-18 NPTF 13/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-F6 3/8-18 NPTF 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-F8 3/8-18 NPTF 13/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-F8 1/2-14 NPTF 13/16-16 UN-2A 2.58 65.5 mm 1.74 44.2 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8PF8-F10 1/2-14 NPTF 1-14 UNS-2A 2.77 70.4 mm 1.93 49.0 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-F12 3/4-14 NPTF 1 3/16-12 UN-2A 3.34 84.8 mm 2.30 58.4 mm 3.19 81.0 mm 2.24 56.9 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-F16 1-11 1/2 NPTF 1 7/16-12 UN-2A 3.76 95.5 mm 2.62 66.5 mm 3.54 89.9 mm 2.48 63.0 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-F20 1 1/4-11 1/2 NPTF 1 11/16-12 UN-2A 4.12 104.6 mm 2.80 71.1 mm 4.00 101.6 mm 2.63 66.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-F24 1 1/2-11 1/2 NPTF 2-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 5.20 132.1 mm 3.45 87.6 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa

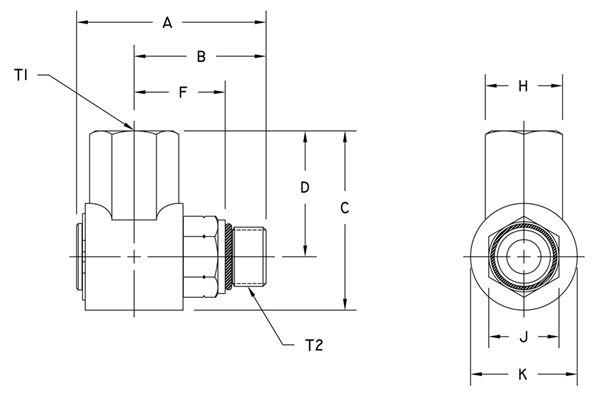

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO FEMALE O-RING FACE SEAL
FEMALE PIPE TO FEMALE O-RING FACE SEAL
female-pipe-to-female-o-ring-face-seal





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-FF4 1/4-18 NPTF 9/16-18 UNF-2B 1.87 47.5 mm 1.15 29.2 mm 1.63 41.4 mm 1.25 31.8 mm 0.83 21.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-FF6 1/4-18 NPTF 11/16-16 UN-2B 2.22 56.4 mm 1.37 34.8 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-FF6 3/8-18 NPTF 11/16-16 UN-2B 2.22 56.4 mm 1.37 34.8 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-FF8 3/8-18 NPTF 13/16-16 UN-2B 2.38 60.5 mm 1.53 38.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-FF8 1/2-14 NPTF 13/16-16 UN-2B 2.36 59.9 mm 1.52 38.6 mm 2.59 65.8 mm 1.84 46.7 mm 1.09 27.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8PF8-FF10 1/2-14 NPTF 1-14 UNS-2B 2.46 62.5 mm 1.62 41.1 mm 2.59 65.8 mm 1.84 46.7 mm 1.09 27.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-FF12 3/4-14 NPTF 1 3/16-12 UN-2B 2.92 74.2 mm 1.88 47.8 mm 3.19 81.0 mm 2.24 56.9 mm 1.31 33.3 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-FF16 1-11 1/2 NPTF 1 7/16-12 UN-2B 3.21 81.5 mm 2.06 52.3 mm 3.54 89.9 mm 2.48 63.0 mm 1.50 38.1 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-FF20 1 1/4-11 1/2 NPTF 1 11/16-12 UN-2B 3.55 90.2 mm 2.23 56.6 mm 4.00 101.6 mm 2.63 66.8 mm 1.65 41.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-FF24 1 1/2-11 1/2 NPTF 2-12 UN-2B 4.43 112.5 mm 2.66 67.6 mm 5.20 132.1 mm 3.45 87.6 mm 2.08 52.8 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa



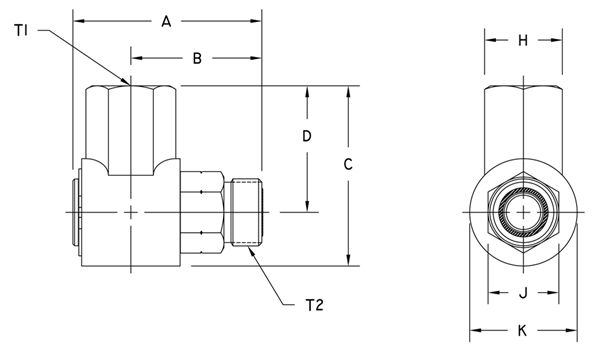

SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO MALE JIC
FEMALE PIPE TO MALE JIC
female-pipe-to-male-jic





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-J4 1/4-18 NPTF 7/16-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.63 41.4 mm 1.25 31.8 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4PF4-J5 1/4-18 NPTF 1/2-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.63 41.4 mm 1.25 31.8 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-J6 1/4-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF4-J8 1/4-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-J5 3/8-18 NPTF 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-J6 3/8-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-J8 3/8-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-J8 1/2-14 NPTF 3/4-16 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8PF8-J10 1/2-14 NPTF 7/8-14 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-J12 3/4-14 NPTF 1 1/16-12 UN-2A 3.40 86.4 mm 2.36 59.9 mm 3.19 81.0 mm 2.24 56.9 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-J16 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.82 97.0 mm 2.68 68.1 mm 3.54 89.9 mm 2.48 63.0 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-J20 1 1/4-11 1/2 NPTF 1 5/8-12 UN-2A 4.13 104.9 mm 2.81 71.4 mm 4.00 101.6 mm 2.63 66.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-J24 1 1/2-11 1/2 NPTF 1 7/8-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 5.20 132.1 mm 3.45 87.6 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32PF32-J32 2-11 1/2 NPTF 2 1/2-12 UN-2A 6.25 158.8 mm 4.15 105.4 mm 6.31 160.3 mm 4.06 103.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa



SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO MALE SAE O-RING BOSS
FEMALE PIPE TO MALE SAE O-RING BOSS
female-pipe-to-male-sae-o-ring-boss





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-O4 1/4-18 NPTF 7/16-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.63 41.4 mm 1.25 31.8 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4PF4-O5 1/4-18 NPTF 1/2-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.63 41.4 mm 1.25 31.8 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-O6 1/4-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF4-O8 1/4-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-O4 3/8-18 NPTF 7/16-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-O5 3/8-18 NPTF 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-O6 3/8-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-O8 3/8-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-O8 1/2-14 NPTF 3/4-16 UNF-2A 2.58 65.5 mm 1.74 44.2 mm 2.59 65.8 mm 1.84 46.7 mm 1.19 30.2 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8PF8-O10 1/2-14 NPTF 7/8-14 UNF-2A 2.82 71.6 mm 1.98 50.3 mm 2.59 65.8 mm 1.84 46.7 mm 1.35 34.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8PF8-O12 1/2-14 NPTF 1 1/16-12 UN-2A 3.00 76.2 mm 2.16 54.9 mm 2.59 65.8 mm 1.84 46.7 mm 1.44 36.6 mm 1.13 28.7 mm 1.25 31.8 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-O12 3/4-14 NPTF 1 1/16-12 UN-2A 3.37 85.6 mm 2.33 59.2 mm 3.19 81.0 mm 2.24 56.9 mm 1.62 41.1 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-O16 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.62 91.9 mm 2.50 63.5 mm 3.54 89.9 mm 2.48 63.0 mm 1.78 45.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-O20 1 1/4-11 1/2 NPTF 1 5/8-12 UN-2A 4.08 103.6 mm 2.76 70.1 mm 4.00 101.6 mm 2.63 66.8 mm 2.04 51.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-O24 1 1/2-11 1/2 NPTF 1 7/8-12 UN-2A 4.91 124.7 mm 3.14 79.8 mm 5.20 132.1 mm 3.45 87.6 mm 2.42 61.5 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32PF32-O32 2-11 1/2 NPTF 2 1/2-12 UN-2A 6.14 156.0 mm 4.04 102.6 mm 6.31 160.3 mm 4.06 103.1 mm 3.33 84.6 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa



SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO MALE PIPE
FEMALE PIPE TO MALE PIPE
female-pipe-to-male-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-P4 1/4-18 NPTF 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.63 41.4 mm 1.25 31.8 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-P4 1/4-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF4-P6 1/4-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-P4 3/8-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-P6 3/8-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-P8 1/2-14 NPTF 1/2-14 NPTF 2.83 71.9 mm 1.99 50.5 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-P12 3/4-14 NPTF 3/4-14 NPTF 3.40 86.4 mm 2.36 59.9 mm 3.19 81.0 mm 2.24 56.9 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-P16 1-11 1/2 NPTF 1-11 1/2 NPTF 3.82 97.0 mm 2.68 68.1 mm 3.54 89.9 mm 2.48 63.0 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-P20 1 1/4-11 1/2 NPTF 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.00 101.6 mm 2.63 66.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-P24 1 1/2-11 1/2 NPTF 1 1/2-11 1/2 NPTF 5.32 135.1 mm 3.55 90.2 mm 5.20 132.1 mm 3.45 87.6 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32PF32-P32 2-11 1/2 NPTF 2-11 1/2 NPTF 6.20 157.5 mm 4.10 104.1 mm 6.31 160.3 mm 4.06 103.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa



SWIVELS | 9S-90° SWIVEL | FEMALE PIPE TO FEMALE PIPE
FEMALE PIPE TO FEMALE PIPE
female-pipe-to-female-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4PF4-PF4 1/4-18 NPTF 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.63 41.4 mm 1.25 31.8 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6PF4-PF4 1/4-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF4-PF6 1/4-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-PF4 3/8-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6PF6-PF6 3/8-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.84 46.7 mm 1.38 35.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8PF8-PF8 1/2-14 NPTF 1/2-14 NPTF 2.62 66.5 mm 1.78 45.2 mm 2.59 65.8 mm 1.84 46.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12PF12-PF12 3/4-14 NPTF 3/4-14 NPTF 3.00 76.2 mm 1.96 49.8 mm 3.19 81.0 mm 2.24 56.9 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16PF16-PF16 1-11 1/2 NPTF 1-11 1/2 NPTF 3.40 86.4 mm 2.26 57.4 mm 3.54 89.9 mm 2.48 63.0 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20PF20-PF20 1 1/4-11 1/2 NPTF 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.00 101.6 mm 2.63 66.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24PF24-PF24 1 1/2-11 1/2 NPTF 1 1/2-11 1/2 NPTF 4.89 124.2 mm 3.12 79.2 mm 5.20 132.1 mm 3.45 87.6 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32PF32-PF32 2-11 1/2 NPTF 2-11 1/2 NPTF 5.50 139.7 mm 3.40 86.4 mm 6.31 160.3 mm 4.06 103.1 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa

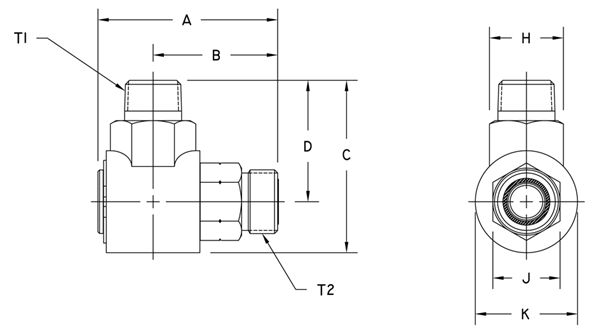

SWIVELS | 9S-90° SWIVEL | MALE PIPE TO MALE O-RING FACE SEAL
MALE PIPE TO MALE O-RING FACE SEAL
male-pipe-to-male-o-ring-face-seal





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-F4 1/4-18 NPTF 9/16-18 UNF-2A 2.12 53.8 mm 1.40 35.6 mm 1.80 45.7 mm 1.42 36.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-F6 1/4-18 NPTF 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-F6 3/8-18 NPTF 11/16-16 UN-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-F8 1/2-14 NPTF 13/16-16 UN-2A 2.58 65.5 mm 1.74 44.2 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8P8-F10 1/2-14 NPTF 1-14 UNS-2A 2.77 70.4 mm 1.93 49.0 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-F12 3/4-14 NPTF 1 3/16-12 UN-2A 3.34 84.8 mm 2.30 58.4 mm 3.21 81.5 mm 2.26 57.4 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-F16 1-11 1/2 NPTF 1 7/16-12 UN-2A 3.76 95.5 mm 2.62 66.5 mm 3.71 94.2 mm 2.65 67.3 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-F20 1 1/4-11 1/2 NPTF 1 11/16-12 UN-2A 4.12 104.6 mm 2.80 71.1 mm 4.36 110.7 mm 2.99 75.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-F24 1 1/2-11 1/2 NPTF 2-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 5.45 138.4 mm 3.70 94.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa



SWIVELS | 9S-90° SWIVEL | MALE PIPE TO FEMALE O-RING FACE SEAL
MALE PIPE TO FEMALE O-RING FACE SEAL
male-pipe-to-female-o-ring-face-seal





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-FF4 1/4-18 NPTF 9/16-18 UNF-2A 1.87 47.5 mm 1.15 29.2 mm 1.80 45.7 mm 1.42 36.1 mm 0.83 21.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-FF6 1/4-18 NPTF 11/16-16 UN-2A 2.22 56.4 mm 1.37 34.8 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-FF8 1/4-18 NPTF 13/16-16 UN-2A 2.38 60.5 mm 1.53 38.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-FF6 3/8-18 NPTF 11/16-16 UN-2A 2.22 56.4 mm 1.37 34.8 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-FF8 3/8-18 NPTF 13/16-16 UN-2A 2.38 60.5 mm 1.53 38.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-FF8 1/2-14 NPTF 13/16-16 UN-2A 2.36 59.9 mm 1.52 38.6 mm 2.65 67.3 mm 1.90 48.3 mm 1.08 27.4 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8P8-FF10 1/2-14 NPTF 1-14 UNS-2A 2.46 62.5 mm 1.62 41.1 mm 2.65 67.3 mm 1.90 48.3 mm 1.09 27.7 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-FF12 3/4-14 NPTF 1 3/16-12 UN-2A 2.92 74.2 mm 1.88 47.8 mm 3.21 81.5 mm 2.26 57.4 mm 1.31 33.3 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-FF16 1-11 1/2 NPTF 1 7/16-12 UN-2A 3.21 81.5 mm 2.06 52.3 mm 3.71 94.2 mm 2.65 67.3 mm 1.48 37.6 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-FF20 1 1/4-11 1/2 NPTF 1 11/16-12 UN-2A 3.55 90.2 mm 2.23 56.6 mm 4.36 110.7 mm 2.99 75.9 mm 1.65 41.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-FF24 1 1/2-11 1/2 NPTF 2-12 UN-2A 4.43 112.5 mm 2.66 67.6 mm 5.45 138.4 mm 3.70 94.0 mm 2.08 52.8 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa

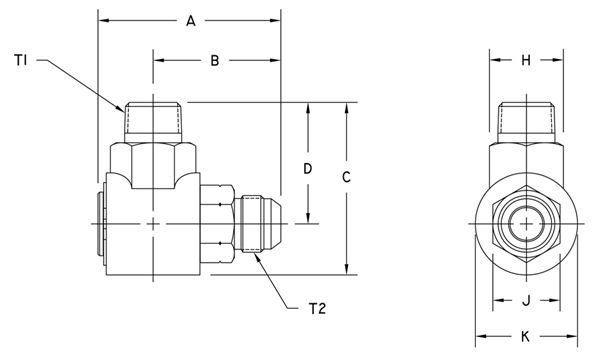

SWIVELS | 9S-90° SWIVEL | MALE PIPE TO MALE JIC
MALE PIPE TO MALE JIC
male-pipe-to-male-jic





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-J4 1/4-18 NPTF 7/16-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.80 45.7 mm 1.42 36.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4P4-J5 1/4-18 NPTF 1/2-20 UNF-2A 2.24 56.9 mm 1.52 38.6 mm 1.80 45.7 mm 1.42 36.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-J6 1/4-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-J8 1/4-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-J5 3/8-18 NPTF 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-J6 3/8-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-J8 3/8-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-J8 1/2-14 NPTF 3/4-16 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8P8-J10 1/2-14 NPTF 7/8-14 UNF-2A 2.83 71.9 mm 1.99 50.5 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-J12 3/4-14 NPTF 1 1/16-12 UN-2A 3.40 86.4 mm 2.36 59.9 mm 3.21 81.5 mm 2.26 57.4 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-J16 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.82 97.0 mm 2.68 68.1 mm 3.69 93.7 mm 2.63 66.8 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-J20 1 1/4-11 1/2 NPTF 1 5/8-12 UN-2A 4.13 104.9 mm 2.81 71.4 mm 4.36 110.7 mm 2.99 75.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-J24 1 1/2-11 1/2 NPTF 1 7/8-12 UN-2A 5.27 133.9 mm 3.50 88.9 mm 5.45 138.4 mm 3.70 94.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32P32-J32 2-11 1/2 NPTF 2 1/2-12 UN-2A 6.25 158.8 mm 4.15 105.4 mm 6.80 172.7 mm 4.55 115.6 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa

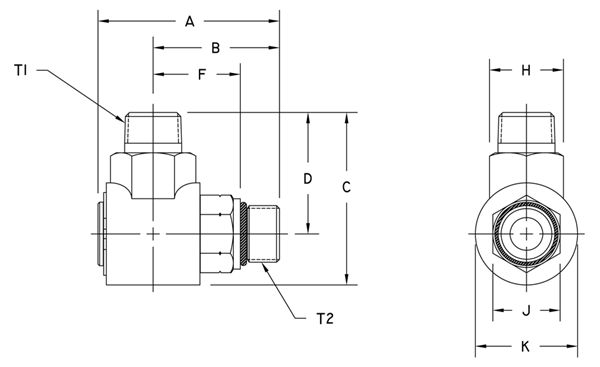

SWIVELS | 9S-90° SWIVEL | MALE PIPE TO MALE SAE O-RING BOSS
MALE PIPE TO MALE SAE O-RING BOSS
male-pipe-to-male-sae-o-ring-boss





Part Number T1 T2 A B C D F H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-O4 1/4-18 NPTF 7/16-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.80 45.7 mm 1.42 36.1 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S4P4-O5 1/4-18 NPTF 1/2-20 UNF-2A 2.20 55.9 mm 1.48 37.6 mm 1.80 45.7 mm 1.42 36.1 mm 1.05 26.7 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-O4 1/4-18 NPTF 7/16-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-O6 1/4-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-O8 1/4-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-O4 3/8-18 NPTF 7/16-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-O5 3/8-18 NPTF 1/2-20 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.22 31.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-O6 3/8-18 NPTF 9/16-18 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.18 30.0 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-O8 3/8-18 NPTF 3/4-16 UNF-2A 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.10 27.9 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-O8 1/2-14 NPTF 3/4-16 UNF-2A 2.58 65.5 mm 1.74 44.2 mm 2.65 67.3 mm 1.90 48.3 mm 1.19 30.2 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8P8-O10 1/2-14 NPTF 7/8-14 UNF-2A 2.82 71.6 mm 1.98 50.3 mm 2.65 67.3 mm 1.90 48.3 mm 1.35 34.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S8P8-O12 1/2-14 NPTF 1 1/16-12 UN-2A 3.00 76.2 mm 2.16 54.9 mm 2.65 67.3 mm 1.90 48.3 mm 1.44 36.6 mm 1.13 28.7 mm 1.25 31.8 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-O12 3/4-14 NPTF 1 1/16-12 UN-2A 3.37 85.6 mm 2.33 59.2 mm 3.21 81.5 mm 2.26 57.4 mm 1.62 41.1 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-O16 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.62 91.9 mm 2.48 63.0 mm 3.69 93.7 mm 2.63 66.8 mm 1.78 45.2 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-O20 1 1/4-11 1/2 NPTF 1 5/8-12 UN-2A 4.08 103.6 mm 2.75 69.9 mm 4.36 110.7 mm 2.99 75.9 mm 2.04 51.8 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-O24 1 1/2-11 1/2 NPTF 1 7/8-12 UN-2A 4.91 124.7 mm 3.14 79.8 mm 5.45 138.4 mm 3.70 94.0 mm 2.42 61.5 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32P32-O32 2-11 1/2 NPTF 2 1/2-12 UN-2A 6.14 156.0 mm 4.04 102.6 mm 6.80 172.7 mm 4.55 115.6 mm 3.33 84.6 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa

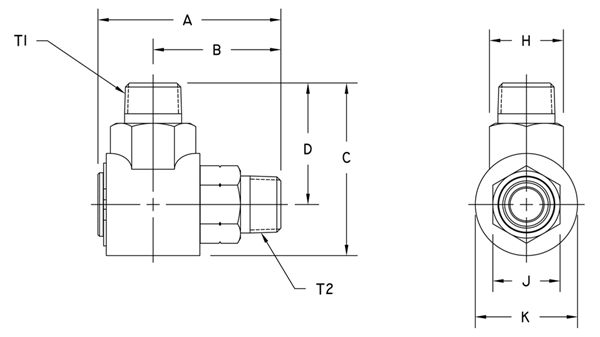

SWIVELS | 9S-90° SWIVEL | MALE PIPE TO MALE PIPE
MALE PIPE TO MALE PIPE
male-pipe-to-male-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-P4 1/4-18 NPTF 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.80 45.7 mm 1.42 36.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-P4 1/4-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-P6 1/4-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-P4 3/8-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-P6 3/8-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-P8 1/2-14 NPTF 1/2-14 NPTF 2.83 71.9 mm 1.99 50.5 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-P12 3/4-14 NPTF 3/4-14 NPTF 3.40 86.4 mm 2.36 59.9 mm 3.21 81.5 mm 2.26 57.4 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-P16 1-11 1/2 NPTF 1-11 1/2 NPTF 3.82 97.0 mm 2.68 68.1 mm 3.69 93.7 mm 2.63 66.8 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-P20 1 1/4-11 1/2 NPTF 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.36 110.7 mm 2.99 75.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-P24 1 1/2-11 1/2 NPTF 1 1/2-11 1/2 NPTF 5.32 135.1 mm 3.55 90.2 mm 5.45 138.4 mm 3.70 94.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32P32-P32 2-11 1/2 NPTF 2-11 1/2 NPTF 6.20 157.5 mm 4.10 104.1 mm 6.80 172.7 mm 4.55 115.6 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa

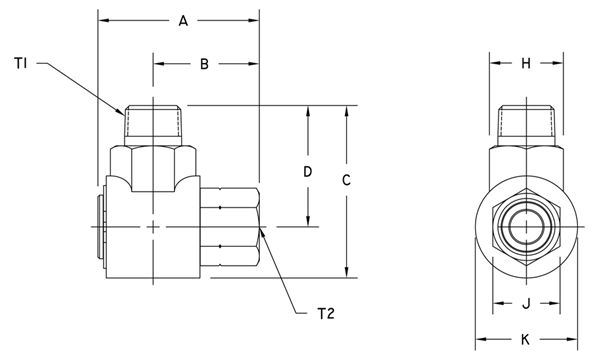

SWIVELS | 9S-90° SWIVEL | MALE PIPE TO FEMALE PIPE
MALE PIPE TO FEMALE PIPE
male-pipe-to-female-pipe





Part Number T1 T2 A B C D H Hex J Hex(* = Round) K Dia. Max W.P.
9S4P4-PF4 1/4-18 NPTF 1/4-18 NPTF 2.24 56.9 mm 1.52 38.6 mm 1.80 45.7 mm 1.42 36.1 mm 0.75 19.1 mm 0.75 19.1 mm 0.75 19.1 mm 5,000 PSI 34.5 MPa
9S6P4-PF4 1/4-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P4-PF6 1/4-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-PF4 3/8-18 NPTF 1/4-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S6P6-PF6 3/8-18 NPTF 3/8-18 NPTF 2.50 63.5 mm 1.65 41.9 mm 1.96 49.8 mm 1.50 38.1 mm 1.00 25.4 mm 0.87 22.1 mm 0.92 23.4 mm 5,000 PSI 34.5 MPa
9S8P8-PF8 1/2-14 NPTF 1/2-14 NPTF 2.62 66.5 mm 1.78 45.2 mm 2.65 67.3 mm 1.90 48.3 mm 1.13 28.7 mm 1.00 25.4 mm 1.50 38.1 mm 5,000 PSI 34.5 MPa
9S12P12-PF12 3/4-14 NPTF 3/4-14 NPTF 3.00 76.2 mm 1.96 49.8 mm 3.21 81.5 mm 2.26 57.4 mm 1.38 35.1 mm 1.25 31.8 mm 1.90 48.3 mm 5,000 PSI 34.5 MPa
9S16P16-PF16 1-11 1/2 NPTF 1-11 1/2 NPTF 3.40 86.4 mm 2.26 57.4 mm 3.69 93.7 mm 2.63 66.8 mm 1.63 41.4 mm 1.63 41.4 mm 2.13 54.1 mm 4,000 PSI 27.6 MPa
9S20P20-PF20 1 1/4-11 1/2 NPTF 1 1/4-11 1/2 NPTF 4.18 106.2 mm 2.86 72.6 mm 4.36 110.7 mm 2.99 75.9 mm 2.00 50.8 mm 2.00 50.8 mm 2.75 69.9 mm 4,000 PSI 27.6 MPa
9S24P24-PF24 1 1/2-11 1/2 NPTF 1 1/2-11 1/2 NPTF 4.89 124.2 mm 3.12 79.2 mm 5.45 138.4 mm 3.70 94.0 mm 2.37 60.2 mm 2.37 60.2 mm 3.50 88.9 mm 4,000 PSI 27.6 MPa
9S32P32-PF32 2-11 1/2 NPTF 2-11 1/2 NPTF 5.50 139.7 mm 3.40 86.4 mm 6.80 172.7 mm 4.55 115.6 mm 2.87 72.9 mm *3.12 79.2 mm 4.50 114.3 mm 3,000 PSI 20.7 MPa



Male O-Ring Face Seal to Male O-Ring Face Seal
Male O-Ring Face Seal to Female O-Ring Face Seal
Male O-Ring Face Seal to Male JIC
Male O-Ring Face Seal to Male SAE O-Ring Boss
Male O-Ring Face Seal to Male Pipe
Male O-Ring Face Seal to Female Pipe
Female O-Ring Face Seal Union to Male O-Ring Face Seal
Female O-Ring Face Seal Union to Female O-Ring Face Seal
Female O-Ring Face Seal Union to Male JIC
Female O-Ring Face Seal Union to Male SAE O-Ring Boss
Female O-Ring Face Seal Union to Male Pipe
Female O-Ring Face Seal Union to Female Pipe
Male JIC to Male O-Ring Face Seal
Male JIC to Female O-Ring Face Seal
Male JIC to Male JIC
Male JIC to Male SAE O-Ring Boss
Male JIC to Male Pipe
Male JIC to Female Pipe
Female Pipe Union to Male O-Ring Face Seal
Female Pipe Union to Female O-Ring Face Seal
Female Pipe Union to Male JIC
Female Pipe Union to Male SAE O-Ring Boss
Female Pipe Union to Male Pipe
Female Pipe Union to Female Pipe
Female Pipe to Male O-Ring Face Seal
Female Pipe to Female O-Ring Face Seal
Female Pipe to Male JIC
Female Pipe to Male SAE O-Ring Boss
Female Pipe to Male Pipe
Female Pipe to Female Pipe
Male Pipe to Male O-Ring Face Seal
Male Pipe to Female O-Ring Face Seal
Male Pipe to Male JIC
Male Pipe to O-Male SAE O-Ring Boss
Male Pipe to Male Pipe
Male Pipe to Female Pipe



Part Number
9S4PU4-F4
9S6PU4-F6
9S6PU4-F8
9S6PU6-F6
9S6PU6-F8
9S8PU8-F8
9S8PU8-F10
9S12PU12-F12
9S16PU16-F16
9S20PU20-F20
9S24PU24-F24

Part Number
9S4PU4-FF4
9S6PU4-FF6
9S6PU4-FF8
9S6PU6-FF6
9S6PU6-FF8
9S8PU8-FF8
9S8PU8-FF10
9S12PU12-FF12
9S16PU16-FF16
9S20PU20-FF20
9S24PU24-FF24

Part Number
9S4PU4-J4
9S4PU4-J5
9S6PU4-J6
9S6PU4-J8
9S6PU6-J5
9S6PU6-J6
9S6PU6-J8
9S8PU8-J8
9S8PU8-J10
9S12PU12-J12
9S16PU16-J16
9S20PU20-J20
9S24PU24-J24
9S32PU32-J32

Part Number
9S4PU4-O4
9S4PU4-O5
9S6PU4-O5
9S6PU4-O6
9S6PU4-O8
9S6PU6-O4
9S6PU6-O5
9S6PU6-O6
9S6PU6-O8
9S8PU8-O8
9S8PU8-O10
9S8PU8-O12
9S12PU12-O12
9S16PU16-O16
9S20PU20-O20
9S24PU24-O24
9S32PU32-O32

Part Number
9S4PU4-P4
9S6PU4-P4
9S6PU4-P6
9S6PU6-P4
9S6PU6-P6
9S8PU8-P8
9S12PU12-P12
9S16PU16-P16
9S20PU20-P20
9S24PU24-P24
9S32PU32-P32

Part Number
9S4PU4-PF4
9S6PU4-PF4
9S6PU4-PF6
9S6PU6-PF4
9S6PU6-PF6
9S8PU8-PF8
9S12PU12-PF12
9S16PU16-PF16
9S20PU20-PF20
9S24PU24-PF24
9S32PU32-PF32

Part Number
9S4PF4-F4
9S6PF4-F6
9S6PF4-F8
9S6PF6-F6
9S6PF6-F8
9S8PF8-F8
9S8PF8-F10
9S12PF12-F12
9S16PF16-F16
9S20PF20-F20
9S24PF24-F24

Part Number
9S4PF4-FF4
9S6PF4-FF6
9S6PF6-FF6
9S6PF6-FF8
9S8PF8-FF8
9S8PF8-FF10
9S12PF12-FF12
9S16PF16-FF16
9S20PF20-FF20
9S24PF24-FF24

Part Number
9S4PF4-J4
9S4PF4-J5
9S6PF4-J6
9S6PF4-J8
9S6PF6-J5
9S6PF6-J6
9S6PF6-J8
9S8PF8-J8
9S8PF8-J10
9S12PF12-J12
9S16PF16-J16
9S20PF20-J20
9S24PF24-J24
9S32PF32-J32

Part Number
9S4PF4-O4
9S4PF4-O5
9S6PF4-O6
9S6PF4-O8
9S6PF6-O4
9S6PF6-O5
9S6PF6-O6
9S6PF6-O8
9S8PF8-O8
9S8PF8-O10
9S8PF8-O12
9S12PF12-O12
9S16PF16-O16
9S20PF20-O20
9S24PF24-O24
9S32PF32-O32

Part Number
9S4PF4-P4
9S6PF4-P4
9S6PF4-P6
9S6PF6-P4
9S6PF6-P6
9S8PF8-P8
9S12PF12-P12
9S16PF16-P16
9S20PF20-P20
9S24PF24-P24
9S32PF32-P32

Part Number
9S4PF4-PF4
9S6PF4-PF4
9S6PF4-PF6
9S6PF6-PF4
9S6PF6-PF6
9S8PF8-PF8
9S12PF12-PF12
9S16PF16-PF16
9S20PF20-PF20
9S24PF24-PF24
9S32PF32-PF32

Part Number
9S4P4-F4
9S6P4-F6
9S6P6-F6
9S8P8-F8
9S8P8-F10
9S12P12-F12
9S16P16-F16
9S20P20-F20
9S24P24-F24

Part Number
9S4P4-FF4
9S6P4-FF6
9S6P4-FF8
9S6P6-FF6
9S6P6-FF8
9S8P8-FF8
9S8P8-FF10
9S12P12-FF12
9S16P16-FF16
9S20P20-FF20
9S24P24-FF24

Part Number
9S4P4-J4
9S4P4-J5
9S6P4-J6
9S6P4-J8
9S6P6-J5
9S6P6-J6
9S6P6-J8
9S8P8-J8
9S8P8-J10
9S12P12-J12
9S16P16-J16
9S20P20-J20
9S24P24-J24
9S32P32-J32

Part Number
9S4P4-O4
9S4P4-O5
9S6P4-O4
9S6P4-O6
9S6P4-O8
9S6P6-O4
9S6P6-O5
9S6P6-O6
9S6P6-O8
9S8P8-O8
9S8P8-O10
9S8P8-O12
9S12P12-O12
9S16P16-O16
9S20P20-O20
9S24P24-O24
9S32P32-O32

Part Number
9S4P4-P4
9S6P4-P4
9S6P4-P6
9S6P6-P4
9S6P6-P6
9S8P8-P8
9S12P12-P12
9S16P16-P16
9S20P20-P20
9S24P24-P24
9S32P32-P32

Part Number
9S4P4-PF4
9S6P4-PF4
9S6P4-PF6
9S6P6-PF4
9S6P6-PF6
9S8P8-PF8
9S12P12-PF12
9S16P16-PF16
9S20P20-PF20
9S24P24-PF24
9S32P32-PF32




  Increase Industrial &Trade Co., Ltd.
北京因科思工贸有限公司 | 美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983；84289077
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762
京ICP备08000876号-6
京公网安备 11010502021283
