McDaniel 氨量计Ammonia Gauges
氨量计-带等效氨温标的工业和商业氨制冷计Ammonia Gauges - industrial and commercial ammonia refrigeration gauges with equivalent ammonia temperature scales

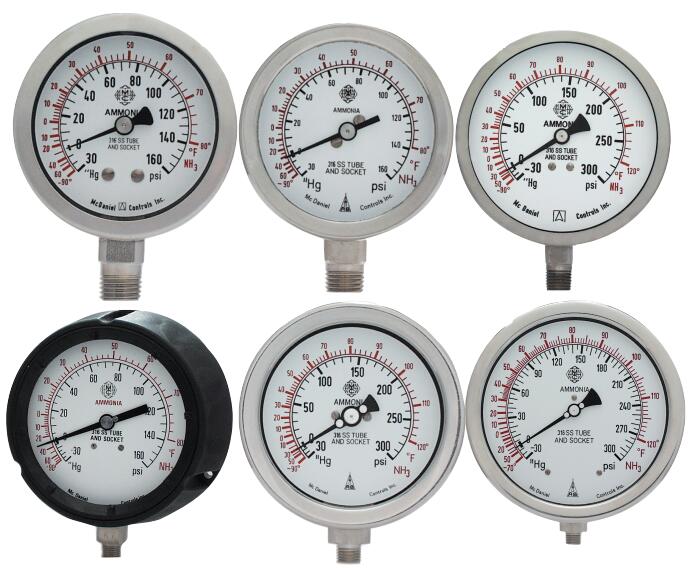

特征Features:
用于工业和商业制冷仪表的氨计，以尽量减少故障并保护人员和财产化合物范围为30“Hg真空-0-160 psi，30”Hg真空-0-300 psi，具有等效的氨温标。液体可填充。适用于腐蚀性环境的坚固结构、脉冲/振动保护、维修功能、保修、可填充外壳Ammonia Gauges for industrial and commercial refrigeration gauges to minimize failure and to protect personnel and property. Compound ranges 30"Hg vacuum-0-160 psi, 30"Hg vacuum-0-300 psi with equivalent ammonia temperature scales. Liquid fillable. Rugged Construction for Corrosive Environment , Pulse/Vibration Protection , Repair Feature , Warranty , Fillable case , Last Word
McDaniel Controls, Inc. Ammonia Gauges 氨量计资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| K |
2 1/2 inch (63mm) |
Yes |
Options (1/4,1/8) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 1% Accy |
| K9 |
2 1/2 inch (63mm) |
Yes |
Options (1/4,1/8) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2% |
| A |
4 inch (100mm) |
No |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| C |
4 inch (100mm) |
No |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| E |
4 inch (100mm) |
Yes |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| E9 |
4 inch (100mm) |
Yes |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2% |
| G |
4 inch (100mm) |
Yes |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| G9 |
4 inch (100mm) |
Yes |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2 % |
| MPB/SA |
4 1/2 inch (130mm) |
Yes |
Options (1/4) |
Fiberglass reinforced thermoplastic |
316 Stainless Steel |
SF/BOF. Elastomer |
| MPB/SC |
4 1/2 inch (130mm) |
Yes |
Options (1/2) |
Fiberglass reinforced thermoplastic |
316 Stainless Steel |
SF/BOB. Elastomer |
| B |
6 inch (160mm) |
No |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| D |
6 inch (160mm) |
No |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| F |
6 inch (160mm) |
Yes |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |
| H |
6 inch (160mm) |
Yes |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Repairable 0.5% Accy |

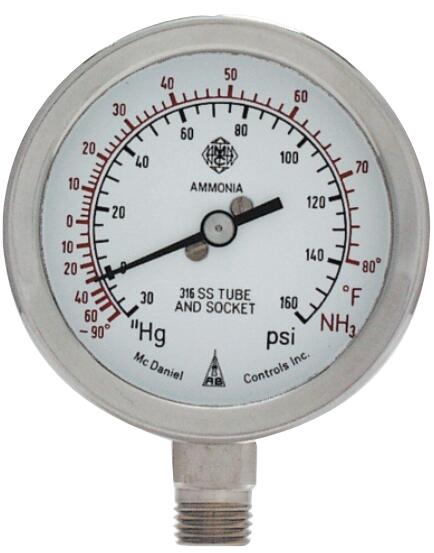

Model K
21/2" (63mm) Dial Size - Filled or Fillable 1/4" NPT Standard (1/8" NPT on Request)
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT Standard (1/8" NPT available on special request) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1% FULL SCALE ASME B40.1 Grade 1A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
S=Solid front/blow-out back |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |

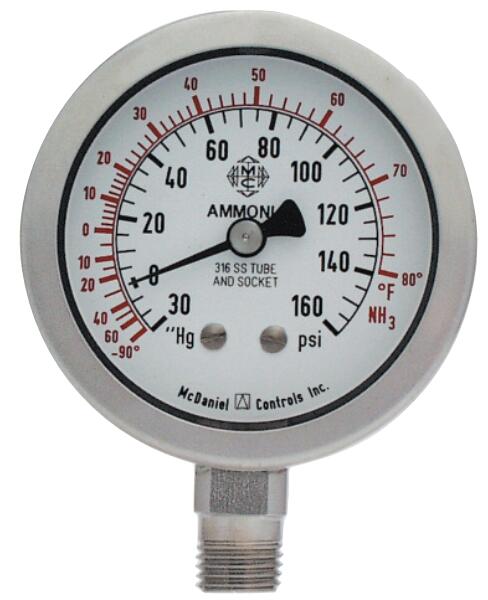

Model K9
2 1/2" (63mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT is STANDARD, 1/8" NPT on Request. |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1 standard - Grade A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower Back Connection , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
|
| 填充选项Choice(s) of filling: |
GF=Glycerin |

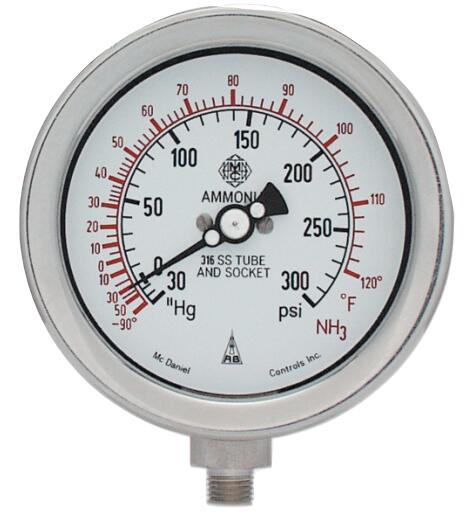

Model A
4 (100mm) Dial Size - Non-Fillable 1/4" NPT Standard
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT only |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
Model C
4" (100mm) Dial Size - Non-Fillable 1/2" NPT Standard
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/2" NPT only |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
Model E
4" (100mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
S=Solid front/blow-out back |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model E9
4" (100mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT is STANDARD |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1-Grade A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/center back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
|
| 填充选项Choice(s) of filling: |
GF=Glycerin |
Model G
4" (100mm) Filled or Fillable 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
S=Solid front/blow-out back |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model G9
4" (100mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT STANDARD |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1 Grade A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/center back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
|
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |

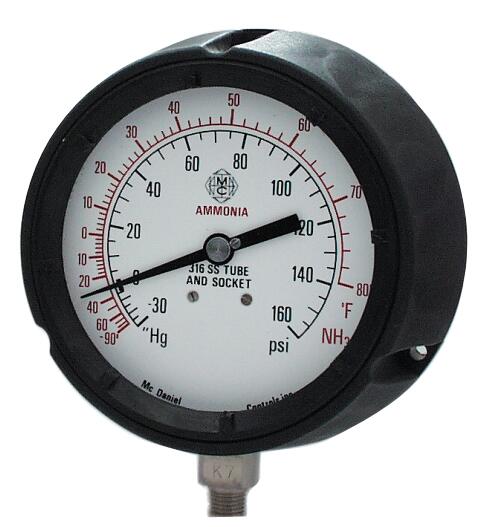

Model MPB/SA
Process Gauges 4 1/2" Dial Size - Liquid Fillable - 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 1/2 inch (130mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT or Metric |
| 案例Case: |
Fiberglass reinforced thermoplastic |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless steel (C Form 600 PSI & Below). (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
0.5 % full scale to ASME B40.1 standard (Grade 2A) |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
Plastic lens, Stainless Steel Tags |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model MPB/SC
Process Gauges 4 1/2" Dial Size - Liquid Fillable - 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 1/2 inch (130mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT or Metric |
| 案例Case: |
Fiberglass reinforced thermoplastic |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless steel (C Form 600 PSI & Below). (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
0.5 % full scale to ASME B40.1 standard (Grade 2A) |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
Plastic Lens, Stainless Steel Tags |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |

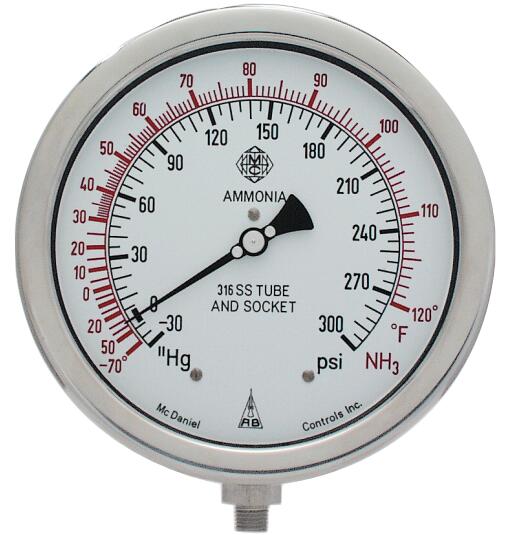

Model B
6" (160mm) Dial Size - Non-Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
6 inch (160mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
Model D
6" (160mm) Dial Size - Non-Fillable 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
6 inch (160mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/2" NPT (1/4:HPF Standard above 35,000 psi) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
Model F
6" (160mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
|
| 刻度盘大小Dial size: |
6 inch (160mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
S=Solid front/blow-out back |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model H
6" (160mm) Dial Size - Fillable or Filled 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
6 inch (160mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1 Grade 2A |
| 范围Ranges: |
30"Hg-0-160psi or 30"Hg-0-300psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
NH3 - Equivalent ammonia temperature scales |
| 选项Options: |
S=Solid front/blow-out back |
| 填充选项Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
|
