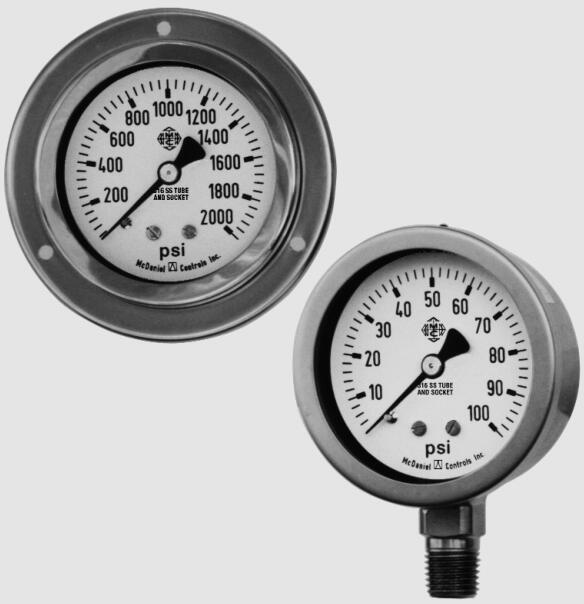

McDaniel Controls, Inc. Series 9 - Liquid fillable, All Stainless Steel Utility Gauges 系列9-液体可填充全不锈钢通用压力表
McDaniel 系列9-液体可填充全不锈钢通用压力表Series 9 - Liquid fillable, All Stainless Steel Utility Gauges
系列9-液体可填充全不锈钢通用压力表-适用于腐蚀性环境/介质和腐蚀性应用，带振动和脉动Series 9 - Liquid fillable, All Stainless Steel Utility Gauges - for corrosive environment/media and corrosive application, with vibration & pulsation
特征Features:
我们的9系列：全不锈钢压力表采用316不锈钢湿润部件和304不锈钢外壳，带有压褶的表圈。箱体与承插接头采用焊接，现场或工厂充液。适用于腐蚀性环境的坚固结构、详细规范、有限保修Our Series 9: All Stainless Steel gauges feature 316 Stainless Steel wetted parts and a 304 Stainless Steel case with crimped on bezel ring. Case and socket joint is welded, liquid fillable in the field or factory. Rugged Construction for Corrosive Environment , Detailed Specifications , Limited Warranty
McDaniel Controls, Inc. Series 9 - Liquid fillable, All Stainless Steel Utility Gauges
系列9-液体可填充全不锈钢通用压力表
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| K9 |
2 1/2 inch (63mm) |
Yes |
Options (1/4,1/8) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2% |
| E9 |
4 inch (100mm) |
Yes |
Options (1/4) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2% |
| G9 |
4 inch (100mm) |
Yes |
Options (1/2) |
304 Stainless Steel |
316 Stainless Steel |
Utility 2-1-2 % |
Model K9
2 1/2" (63mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT is STANDARD, 1/8" NPT on Request. |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1 standard - Grade A |
| 范围Ranges: |
Vacuum, Compound, Rec 3-15, up to 10,000 psi |
| 安装Mount: |

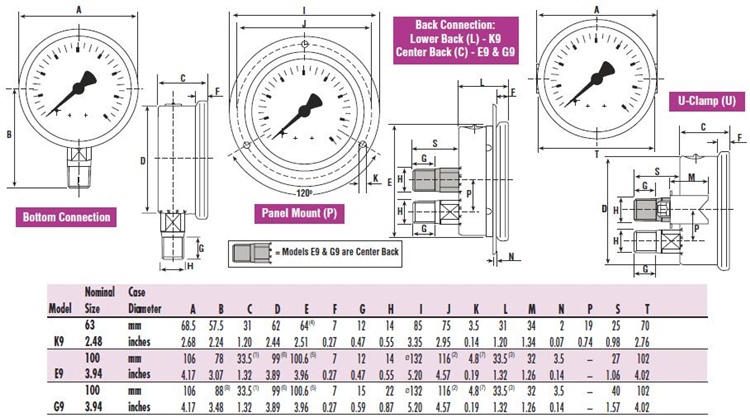

Standard Bottom Connection , L-Lower Back Connection , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
Standard (Call special order) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选项Choice(s) of filling: |
GF=Glycerin |
Model E9
4" (100mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT is STANDARD |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1-Grade A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Compound, Rec 3-15, up to 10,000 psi |
| 安装Mount: |
Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/center back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
Standard (Call special order) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选项Choice(s) of filling: |
GF=Glycerin |
Model G9
4" (100mm) Dial Size - Filled or Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT STANDARD |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless Steel parts |
| 准确度Accuracy: |
2-1-2% ASME B40.1 Grade A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Compound, Rec 3-15, up to 10,000 psi |
| 安装Mount: |
Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/center back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
Standard (Call special order) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选项Choice(s) of filling: |
GF=Glycerin |
|
