McDaniel Controls, Inc. Series 8 - Black Steel Case Utility Gauges 系列8-黑色钢外壳通用压力表
McDaniel 系列8-黑色钢外壳通用压力表Series 8 - Black Steel Case Utility Gauges
系列8-黑钢外壳通用仪表-用于非腐蚀性、非脉动环境中的一般用途-经济型Series 8 - Black Steel Case Utility Gauges - for general service in non-corrosive, non-pulsating environments - Economy priced
特征Features:

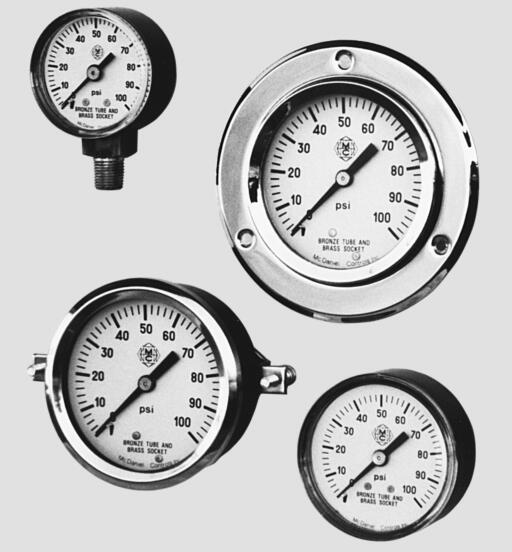

我们的系列8：黑色搪瓷钢外壳，黄铜内件多功能仪表。适用于非腐蚀性环境的通用压力表，价格意识强的买方，详细规范，有限保修Our Series 8: Black enameled steel case utility gauges with brass internals. General purpose gauge for non-corrosive atmosphere, For the price-conscious buyer , Detailed Specifications , Limited Warranty
McDaniel Controls, Inc. Series 8 - Black Steel Case Utility Gauges
系列8-黑色钢外壳通用压力表资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| R8 |
1 1/2 inch (40mm) |
No |
Options (1/8,1/4) |
Black Em.Steel |
Brass/Bronze |
Utility 3-2-3% Accy |
| T8 |
2 inch (50mm) |
No |
Options (1/4,1/8) |
Black Em.Steel |
Brass/Bronze |
Utility 3-2-3% Accy |
| J8 |
2 1/2 inch (63mm) |
No |
Options (1/4,1/8) |
Black painted alloy steel |
Brass/Bronze |
Utility 3-2-3% Accy |
Model R8
1 1/2" (40mm) Dial Size - Non-Fillable 1/8" NPT (1/4" NPT special order available)
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
1 1/2 inch (40mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/8" NPT ( 1/4" NPT special order available) |
| 案例Case: |
Black Em.Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
(Copper alloy (C Form 600 psi & below) and Phosphorous bronze (Spiral 800 psi & above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 5,000 psi |
| 安装Mount: |
L-Center Back Connection , P-Panel mount w/front flange, Center-back connection , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
Standard (Call special order) |
| 选项Options: |
O2(cleaned for oxygen service) |
Model T8
2" (50mm) Dial Size - Non-Fillable 1/4" NPT or 1/8" NPT available
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 inch (50mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT or 1/8" NPT available |
| 案例Case: |
Black Em.Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
(Copper alloy (C Form 600 psi & below) and Phosphorous bronze (Spiral 800 psi & above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 5,000 psi |
| 安装Mount: |
L-Center Back Connection , P-Panel mount w/front flange, Center-back connection , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
Standard (Call special order) |
| 选项Options: |
O2(cleaned for oxygen service) |
Model J8
2 1/2" (63mm) Dial Size - Non-Fillable 1/4" NPT Standard
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT or 1/8" NPT Standard-other connections & sizes available on special order |
| 案例Case: |
Black painted alloy steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
(Copper alloy (C Form 600 psi & below) and Phosphorous bronze (Spiral 800 psi & above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 15,000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Center Back Connection , P-Panel mount w/front flange, Center-back connection , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
Single Scale psi -other Scales available special order |
| 选项Options: |
O2(cleaned for oxygen service) |
|
