McDaniel Controls, Inc. General Service Gauges通用仪表

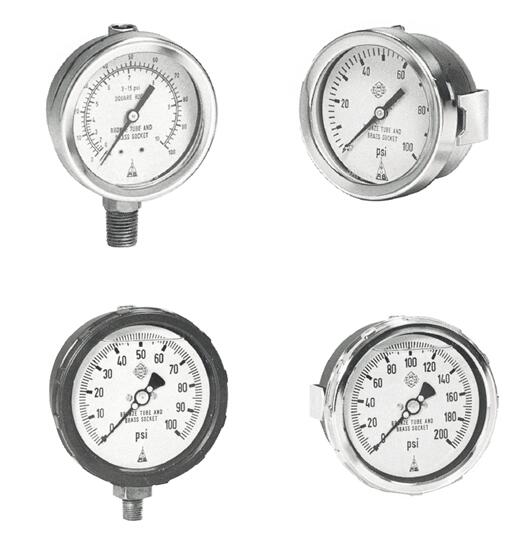

McDaniel通用仪表General Service Gauges
通用仪表General Service Gauges - 经验证具有麦克丹尼尔工程坚固性的黄铜内件的成本优势cost advantage of brass internals with proven ruggedness of McDaniel engineering
特征Features:
黄铜内件具有麦克丹尼尔工程的坚固性和准确性。选择包括4“和6”型号的聚酰胺“B”外壳、1.5“和2.5”型号的耐用不锈钢外壳、2“和2 1/2”型号的全黄铜压力表重型压铸、可填充外壳、螺旋弹簧管、安全可靠、脉冲/振动保护、维修功能、保修和维修、安装类型选择、刻度选择Brass internals with the proven ruggedness and accuracy of McDaniel Engineering. Selections include Polyamid 'B' case in 4" and 6" models, Stainless Steel Case in durable 1.5" and 2.5" models, All Brass gauges heavy-duty die-cast in 2" and 2 1/2" models, Fillable case , Spiral Bourdon Tube , Safe and Reliable , Pulse/Vibration Protection , Repair Feature , Warranty and Repair , Choice of Mounting Style , Choice of Scale , Last Word
McDaniel Controls, Inc. General Service Gauges通用仪表资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| J |
2 1/2 inch (63mm) |
Yes |
Options (1/4) |
304 Stainless Steel |
Brass |
Repairable 1% Accy |
| L |
4 inch (100mm) |
No |
Options (1/4) |
Polyamid "B" |
Brass |
Repairable 0.5% Accy |
| M |
4 inch (100mm) |
No |
Options (1/2) |
Polyamid "B" |
Brass |
Repairable 0.5% Accy |
| N |
4 inch (100mm) |
Yes |
Options (1/4) |
Polyamid "B" |
Brass |
Repairable 0.5% Accy |
| P |
4 inch (100mm) |
Yes |
Options (1/2) |
Polyamid "B" |
Brass |
Repairable 0.5% Accy |
Model J
2 1/2" (63 mm) Dial Size - Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT (1/8" NPT Special Order) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
Brass |
| Wetted parts: |
Brass/bronze wetted parts |
| 准确度Accuracy: |
1% full scale ASME B40.1-Grade 1A |
| 范围Ranges: |
Vacuum, Rec., Compound, 0-6000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选择Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model L
4" (100mm) Dial Size - Non-Fillable 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT |
| 案例Case: |
Polyamid "B" |
| 内部构件Internals: |
Brass |
| Wetted parts: |
Brass/bronze Bourdon tube (Alloy steel over 800 psi) |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1-Grade 2A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Rec., Compound, 0-35,000psi, 6"wc-250"wc |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale),K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2 (cleaned for oxygen service). N=Non-standard internals(316SS tube/tip/socket) |
Model M
4" (100mm) Dial Size - Non-Fillable 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/2" NPT |
| 案例Case: |
Polyamid "B" |
| 内部构件Internals: |
Brass |
| Wetted parts: |
Brass/bronze Bourdon tube (Alloy steel over 800 psi) |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1-Grade 2A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Rec., Compound, 0-35,000 psi, 6"wc-250"wc |
| 安装Mount: |
Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale),K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service), N=Non-standard internals(316SS tube/tip/socket) |
Model N
4" (100mm) Filled or Fillable
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT |
| 案例Case: |
Polyamid "B" |
| 内部构件Internals: |
Brass |
| Wetted parts: |
Brass/bronze Bourdon tube (Alloy steel over 800 psi) |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1-Grade 2A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Rec., Compound, 0-35,000 psi, 6"wc-250"wc |
| 安装Mount: |
L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , S-Solid Front/Blow-out Back , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale),K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选择Choice(s) of filling: |
GF-Glycerin, SF=Silicone |
Model P
4" (100mm) Filled or Fillable
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 inch (100mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT |
| 案例Case: |
Polyamid "B" |
| 内部构件Internals: |
Brass |
| Wetted parts: |
Brass/bronze Bourdon tube (Alloy steel over 800 psi) |
| 准确度Accuracy: |
1/2% FULL SCALE ASME B40.1-Grade 2A
(Up to 10,000psi, 15,000psi above 1%) |
| 范围Ranges: |
Vacuum, Rec., Compound, 0-35,000 psi, 6"wc-250"wc |
| 安装Mount: |
L-Lower back connection (without panel mount flange) , P-Panel mount/lower back connection , R-Rear Flange-(For Wall Mounting) , S-Solid Front/Blow-out Back , U-Panel Mount/lower back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale),K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
| 填充选择Choice(s) of filling: |
GF-Glycerin, SF=Silicone |
|
