McDaniel Controls, Inc. Series 6 - Liquid filled, Stainless Steel Case Utility Gauges 系列6-充液不锈钢外壳压力表

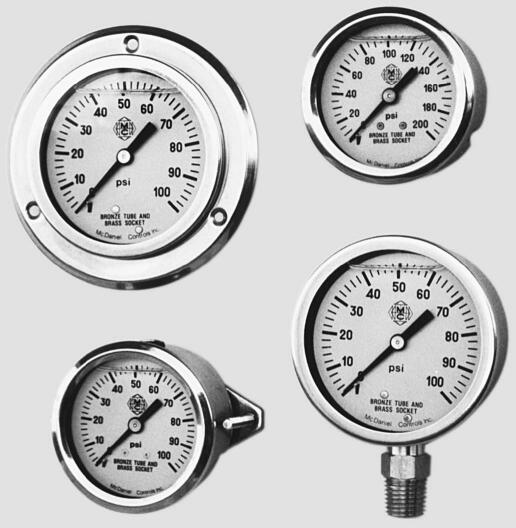

McDaniel 系列6-充液不锈钢外壳压力表Series 6 - Liquid filled, Stainless Steel Case Utility Gauges
系列6-充液不锈钢外壳通用压力表-适用于振动、脉动和腐蚀性环境中的一般应用-经济型Series 6 - Liquid filled, Stainless Steel Case Utility Gauges - for general service in vibration, pulsation, and corrosive atmospheres - Economy priced
特征Features:
我们的系列6：甘油填充，不锈钢外壳，黄铜内件多功能仪表。设计用于腐蚀性环境，且价格意识强的买方有脉动和/或振动，详细规范，脉冲/振动保护，有限保修Our Series 6: Glycerin filled, stainless steel case utility gauges with brass internals. Designed for application with a corrosive atmosphere and where pulsation and/or vibration are present For the price-conscious buyer , Detailed Specifications , Pulse/Vibration Protection , Limited Warranty
McDaniel Controls, Inc. Series 6 - Liquid filled, Stainless Steel Case Utility Gauges
系列6-充液不锈钢外壳压力表资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| T6 |
2 inch (50mm) |
Filled |
Options (1/4,1/8) |
304 Stainless Steelel |
Brass/Bronze |
Utility 3-2-3% Accy |
| J6 |
2 1/2 inch (63mm) |
Filled |
Options (1/4,1/8) |
304 Stainless Steel |
Brass/Bronze |
Utility 3-2-3% Accy |

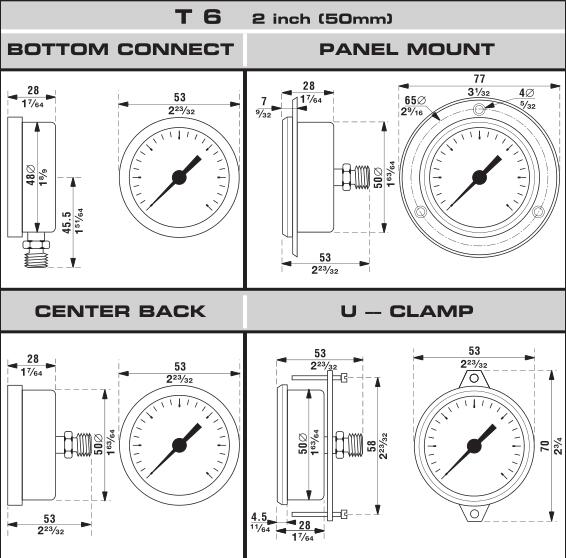

Model T6
2" (50mm) Dial Size - Liquid Filled, Stainless Steel Case 1/4" NPT or 1/8" NPT available
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 inch (50mm) |
| 可填充：Fillable: |
Filled |
| 连接Connection: |
1/4" or 1/8" NPT (Metric available Special Order) |
| 案例Case: |
304 Stainless Steelel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
Copper alloy (C Form 600 psi & below).
Phosphorous bronze (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 5,000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Center Back Connection , P-Panel mount w/front flange, Center-back connection , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |

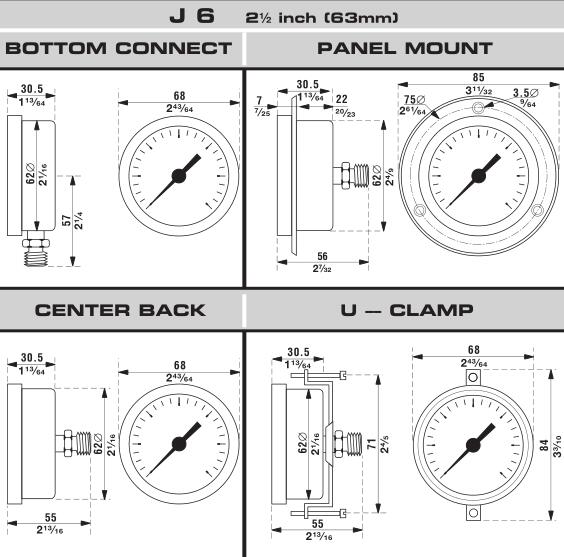

Model J6
2 1/2"(63mm) Dial Size - Liquid Filled, Stainless Steel Case 1/4" NPT (1/8" NPT special order available)
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
Filled |
| 连接Connection: |
1/4" (1/8" NPT special order available) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
Copper alloy (C Form 600 psi & below).
Phosphorous bronze (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 15,000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Center Back Connection , P-Panel mount w/front flange, Center-back connection , U-Panel Mount/center back u-clamp |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
|
